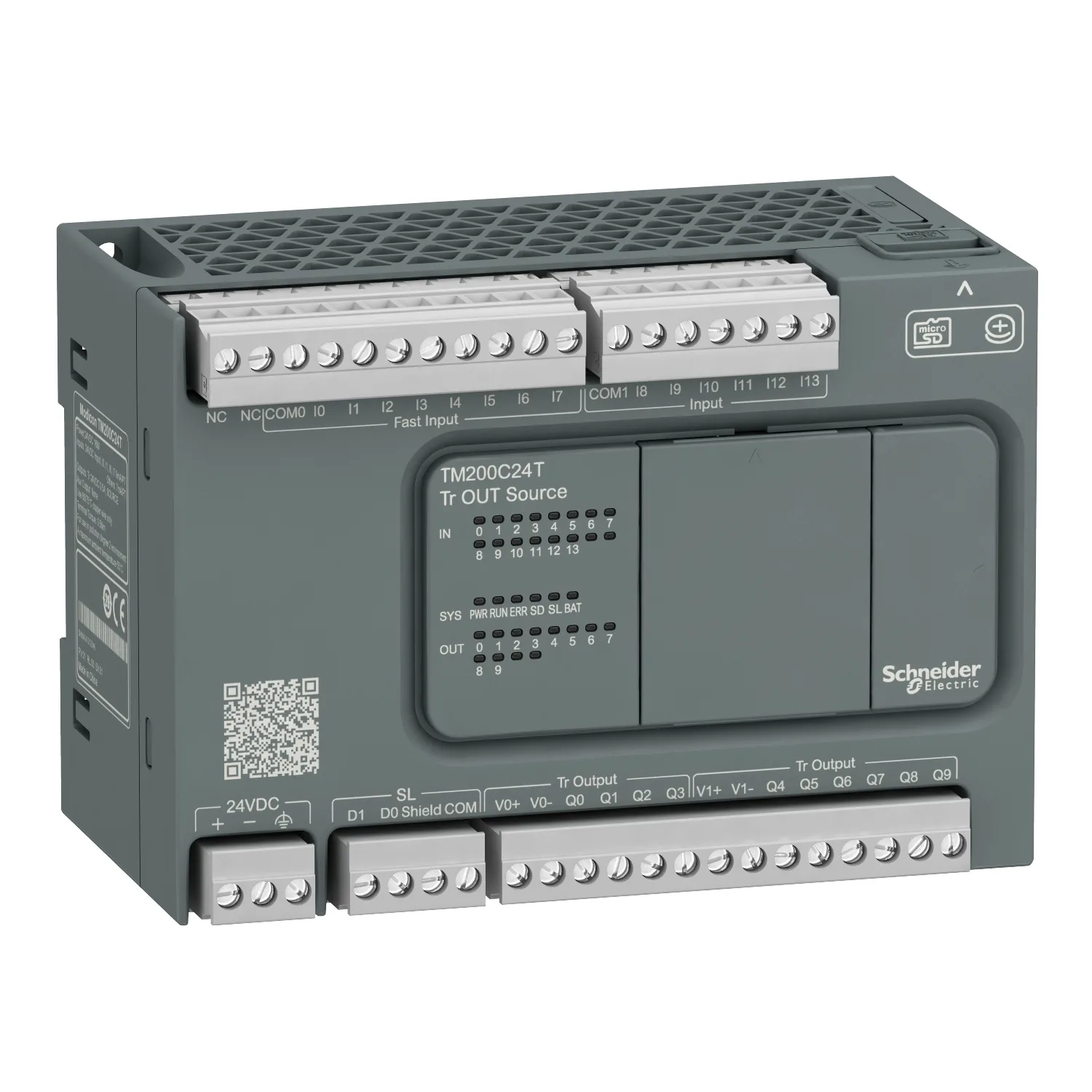

TM200C24T - M200 PLC, 14 DI, 10 DO Transistor
Schneider TM200C24T, M200 PLC, 14 DI, 10 DO Transistor. Category: Modicon M200. Request a quote for price and lead time.
- Reference:TM200C24T
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:387.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Modicon M200
- Product Or Component Type
- Logic controller
- [Us] Rated Supply Voltage
- 24 V DC
- Discrete I/O Number
- 24
Product Description
This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 I/O, 2 axis motion control. This logic controller provides 6 regular inputs, 4 fast inputs, 4 high speed inputs and 8 transistor outputs, 2 fast outputs. It is a Modicon logic controller with a rated supply voltage/output voltage of 24V DC, an output current of 0.5A and a power consumption of 16W at 24V DC. Easy to maintain and update with its micro SD memory card. Integrated connections are mini B USB 2.0, non isolated serial link 1 and RS485, non isolated serial link 2 and RS232/RS485, and isolated serial link 2 and RS485. It is a controller with an internal flash of 512byte and a micro SD card capacity of 32GB. It is an IP20 rated product. Its dimensions are 130mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.416kg. Designed for textile, machine tool, packaging, material handling, pumping, hoisting, electronic assembly machines. This product is certified by CE, CSA, IACS E10, RCM and CULus. It meets EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. It supports DIN rail mount. Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.
Key Features
- "Designed for simple machines"
- "Easy to test and debug thanks to the standard USport and removable terminal blocks"
- "Easy to duplicate without special skills using the Micro SD memory card"
- "Easy to access information by scanning the QRcode carved on the front of the controller"
- "Monitoring for up to 196 I/O and 2 axis motion control"
Technical Specifications
Main15
| Range Of Product | Modicon M200 |
|---|---|
| Product Or Component Type | Logic controller |
| [Us] Rated Supply Voltage | 24 V DC |
| Discrete I/O Number | 24 |
| Discrete Input Number | I2...I5: 4 fast input; I0, I1, I6, I7: 4 high speed input; I8...I13: 6 regular input |
| Discrete Output Number | Q0...Q1: 2 fast output (PLS/PWM/PTO mode); Q2...Q9: 8 transistor output |
| Discrete Input Voltage | 24 V |
| Discrete Input Voltage Type | DC |
| Discrete Input Current | 7 mA for input |
| Discrete Input Logic | Sink or source (positive/negative) type 1 conforming to IEC 61131-2 |
| Discrete Output Voltage | 24 V DC |
| Discrete Output Current | 0.5 A |
| Discrete Output Type | Transistor |
| Discrete Output Logic | Positive logic (source) |
| Power Consumption In W | 16 W at 24 V DC (with max I/O) |
Complementary40
| Maximum Number Of I/O Expansion Module | 4 with 64 discrete output(s) for relay output; 4 with 138 discrete output(s) for transistor output |
|---|---|
| Supply Voltage Limits | 20.4…28.8 V |
| Inrush Current | 35 A |
| Voltage State 1 Guaranteed | >= 15 V for input |
| Voltage State 0 Guaranteed | <= 5 V for input |
| Input Impedance | 3.3 kOhm for discrete input |
| Response Time | 1 ms turn-on, Q0...Q9 terminal(s) for output; 1 ms turn-off, Q0...Q9 terminal(s) for output; 5 µs turn-off, I0, I1, I6, I7 terminal(s) for high speed input; 5 µs turn-on, I0, I1, I6, I7 terminal(s) for high speed input; 100 µs turn-off, I2...I5 terminal(s) for fast input; 35 µs turn-on, I2...I5 terminal(s) for fast input; 100 µs turn-off, I8...I13 terminal(s) for regular input; 35 µs turn-on, I8.. |
| Configurable Filtering Time | 0 ms for input; 3 ms for input; 12 ms for input |
| Maximum Current Per Output Common | 2 A at COM 0; 3 A at COM 1 |
| Output Frequency | 100 kHz for fast output (PWM/PLS mode) at Q0...Q1 |
| Maximum Leakage Current | 0.1 mA for transistor output |
| Maximum Voltage Drop | <1 V |
| Maximum Tungsten Load | <12 W for output and fast output |
| Protection Type | Overload and short-circuit protection at 2 A |
| Reset Time | 1 s automatic reset |
| Memory Capacity | 512 byte internal flash for backup of programs |
| Data Storage Equipment | 32 GB micro SD card (optional) |
| Battery Type | BR2032 Li-CFx (Lithium-Carbon Monofluoride), battery life: 5 year(s) |
| Backup Time | 3 years at 25 °C (by interruption of power supply) |
| Execution Time For 1 KInstruction | 0.3 ms for event and periodic task |
| Execution Time Per Instruction | 0.2 µs Boolean |
| Exct Time For Event Task | 60 µs response time |
| Clock Drift | <= 90 s/month at 25 °C |
| Regulation Loop | Adjustable PID regulator up to 14 simultaneous loops |
| Positioning Functions | PWM/PLS 2 channel(s) at 100 kHz |
| Control Signal Type | Quadrature (x1, x2, x4) at 100 kHz for fast input (HSC mode); Pulse/direction at 100 kHz for fast input (HSC mode); Single phase at 100 kHz for fast input (HSC mode); CW/CCW at 100 kHz for fast input (HSC mode) |
| Counting Input Number | 4 fast input (HSC mode) at 100 kHz 32 bits |
| Integrated Connection Type | USB port with mini B USB 2.0 connector; Non isolated serial link serial 1 with terminal block connector and RS485 interface; Non isolated serial link serial 2 with terminal block connector and RS232/RS485 interface; Isolated serial link serial 2 with terminal block connector and RS485 interface |
| Transmission Rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485; 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232; 12 Mbit/s for USB |
| Communication Port Protocol | USB port: USB - SoMachine-Network; Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network |
| Local Signalling | 1 LED (green) for PWR; 1 LED (green) for RUN; 1 LED (red) for module error (ERR); 1 LED (green) for SD card access (SD); 1 LED (red) for BAT; 1 LED (green) for SL1; 1 LED per channel (green) for I/O state |
| Electrical Connection | Mini B USB 2.0 connectorfor a programming terminal; removable screw terminal blockfor inputs; removable screw terminal blockfor outputs; removable screw terminal block, 3 terminal(s) for connecting the 24 V DC power supply; removable screw terminal block, 4 terminal(s) for connecting the serial link1 |
| Maximum Cable Distance Between Devices | Unshielded cable: <50 m for input; Shielded cable: <10 m for fast input; Shielded cable: <10 m for high speed input; Unshielded cable: <150 m for output |
| Insulation | Non-insulated between inputs; Between input and internal logic at 500 V AC; Between fast input and internal logic at 500 V AC; Between input groups at 500 V AC; Between output and internal logic at 500 V AC; Between output groups at 500 V AC; Between supply and internal logic at 500 V DC |
| Marking | CE |
| Mounting Support | Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 plate or panel with fixing kit conforming to IEC 60715 |
| Height | 90 mm |
| Depth | 70 mm |
| Width | 130 mm |
| Net Weight | 0.416 kg |
Environment13
| IP Degree Of Protection | IP20 with protective cover in place |
|---|---|
| Product Certifications | CE |
| Standards | IEC 61010-2-201; IEC 61131-2 |
| Electromagnetic Compatibility | Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2; Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3; Magnetic field at power frequency - test level: 30 A/m conforming to IEC 61000-4-8; |
| Shock Resistance | 15 gn for 11 ms; 30 gn for 6 ms |
| Immunity To Microbreaks | 2 ms |
| Vibration Resistance | 3.5 mm at 5…8.4 Hz on symmetrical rail; 1 gn at 8.4…150 Hz on symmetrical rail; 3.5 mm at 5…8.7 Hz on panel mounting; 2 gn at 8.7…150 Hz on panel mounting |
| Relative Humidity | 10…95 %, without condensation (in operation); 10…95 %, without condensation (in storage) |
| Ambient Air Temperature For Operation | 0…55 °C (horizontal installation) |
| Ambient Air Temperature For Storage | -25…70 °C |
| Pollution Degree | <= 2 |
| Operating Altitude | 0...2000 m |
| Storage Altitude | 0…3000 m |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 9 cm |
| Package 1 Width | 13.8 cm |
| Package 1 Length | 13.6 cm |
| Package 1 Weight | 616 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 12 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 7892 g |
| Unit Type Of Package 3 | P12 |
| Number Of Units In Package 3 | 288 |
| Package 3 Height | 95 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 198408 g |
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
