Schneider
I/O expansion module, Modicon M238 logic controller, Twido, 4 inputs voltage/current/temperature, non differential, wear part
Not for sale

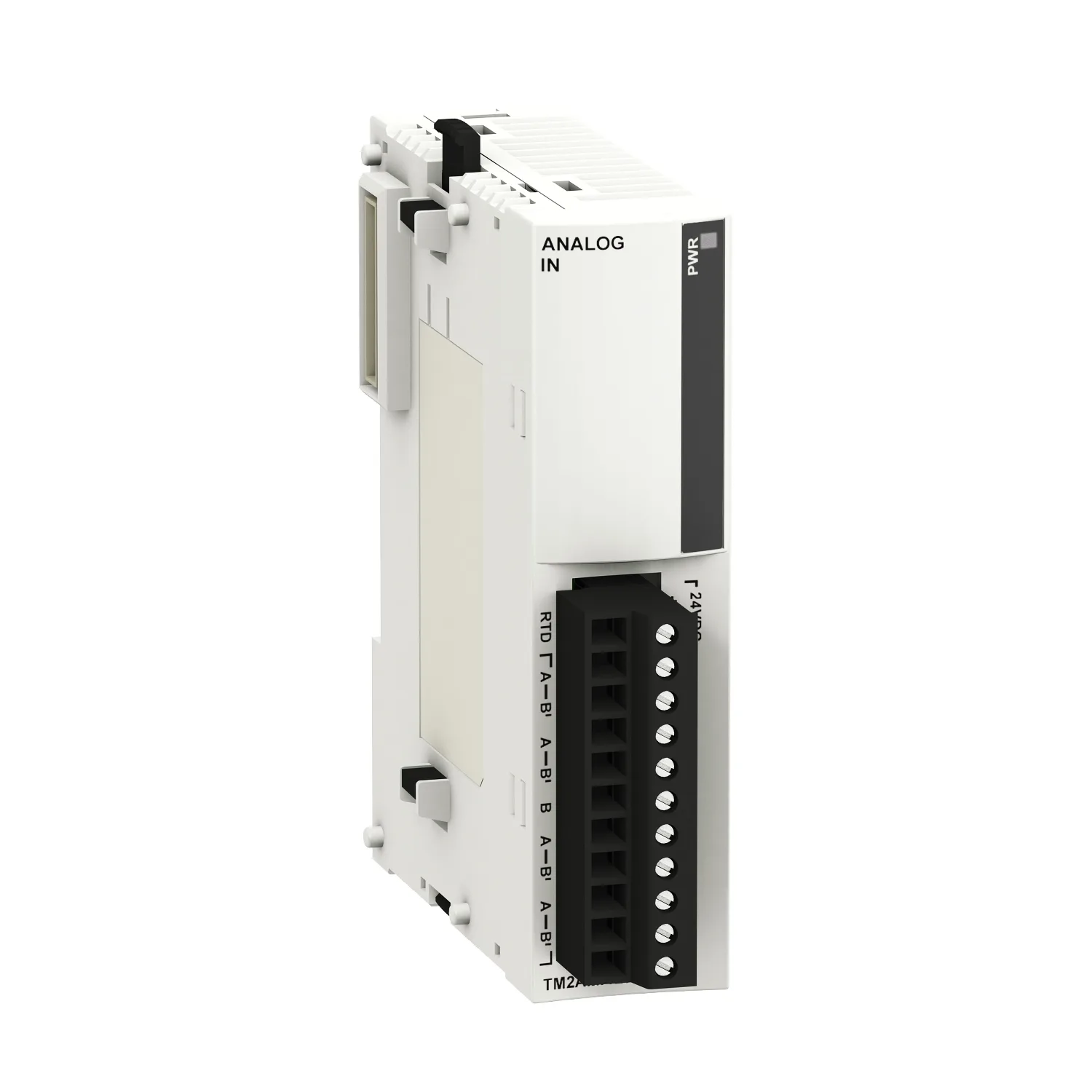

Schneider TM2AMI4LT, I/O expansion module, Modicon M238 logic controller, Twido, 4 inputs voltage/current/temperature, non differential, wear part. Category: Twido. Not for sale; no price or quote is offered for this product.
- Reference:TM2AMI4LT
- Manufacturer / Brand:Schneider
Key Specifications
- Range Of Product
- Modicon M238 logic controller
- Product Or Component Type
- I/O expansion module
- Analogue Input Number
- 4
- Cross Talk
- <= 1 LSB
Product Description
- This analog input module is part of Modicon TM2 expansion modules
- It consists in 4 analog inputs, voltage 0…10 V, current 0…20 mA, and temperature probe PT100/PT1000 and is supplied with 24V dc. • It is equipped with one removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm. • Wear part I/O module Modicon M238 logic controller for Twido
- Original Schneider Electric wear part
- High quality construction
- Higher efficiency
Technical Specifications
Main5
| Range Of Product | Modicon M238 logic controller |
|---|---|
| Product Or Component Type | I/O expansion module |
| Analogue Input Number | 4 |
| Analogue Input Type | voltage 0...10 V non differential; Pt 100/Pt 1000 temperature probe - 200...600 °C non differential; Ni 100/Ni 1000 temperature probe - 50...150 °C non differential; current 0...20 mA non differential |
| Cross Talk | <= 1 LSB |
Complementary20
| Range Compatibility | Twido; Advantys OTB |
|---|---|
| Analogue Input Resolution | 12 bits |
| LSB Value | 2.5 mV voltage voltage; 4.8 µA current current; 0.2 °C temperature probe Pt 100/Pt 1000; 0.05 °C temperature probe Ni 100/Ni 1000 |
| Permissible Continuous Overload | 40 mA, analogue input type: current; 13 V, analogue input type: voltage |
| Input Impedance | >= 10 kOhm temperature probe; 470 Ohm current; 10 kOhm voltage |
| Sampling Duration | 160 ms |
| Acquisition Period | 320 ms per channel + 1 controller cycle time temperature probe; 160 ms per channel + 1 controller cycle time voltage/current |
| Measurement Error | +/- 0.2 % of full scale 0...10 V 0...10 V at 25 °C; +/- 0.2 % of full scale 4...20 mA 4...20 mA at 25 °C; +/- 0.4 % of full scale Pt 100/Pt 1000, Ni 100/ Ni 1000 at 25 °C |
| Temperature Coefficient | +/- 0.004 %FS/°C, analogue input type: temperature probe; +/- 0.009 %FS/°C, analogue input type: current; +/- 0.009 %FS/°C, analogue input type: voltage |
| Repeat Accuracy | +/-0.1 %FS |
| Non-linearity | +/- 0.02 %FS |
| Total Error | +/-0.5 %FS |
| Type Of Cable | Shielded cable |
| Insulation Between Channel And Internal Logic | Photocoupler |
| Supply | External supply |
| [Us] Rated Supply Voltage | 24 V DC |
| Supply Voltage Limits | 20.4…28.8 V |
| Electrical Connection | 1 removable screw terminal block |
| Current Consumption | 50 mA at 5 V DC internal; 60 mA at 24 V DC external |
| Net Weight | 0.085 kg |
Environment4
| Dielectric Strength | 2500 V between the I/O and internal logic |
|---|---|
| Width | 23.5 mm |
| Depth | 70 mm |
| Height | 90 mm |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 7.17 cm |
| Package 1 Width | 10.138 cm |
| Package 1 Length | 12.186 cm |
| Package 1 Weight | 146.0 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 18 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.07 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
