I/O expansion module, Modicon M238 logic controller, Twido, 16 inputs 24VDC, 1 removable screw terminal block, wear part

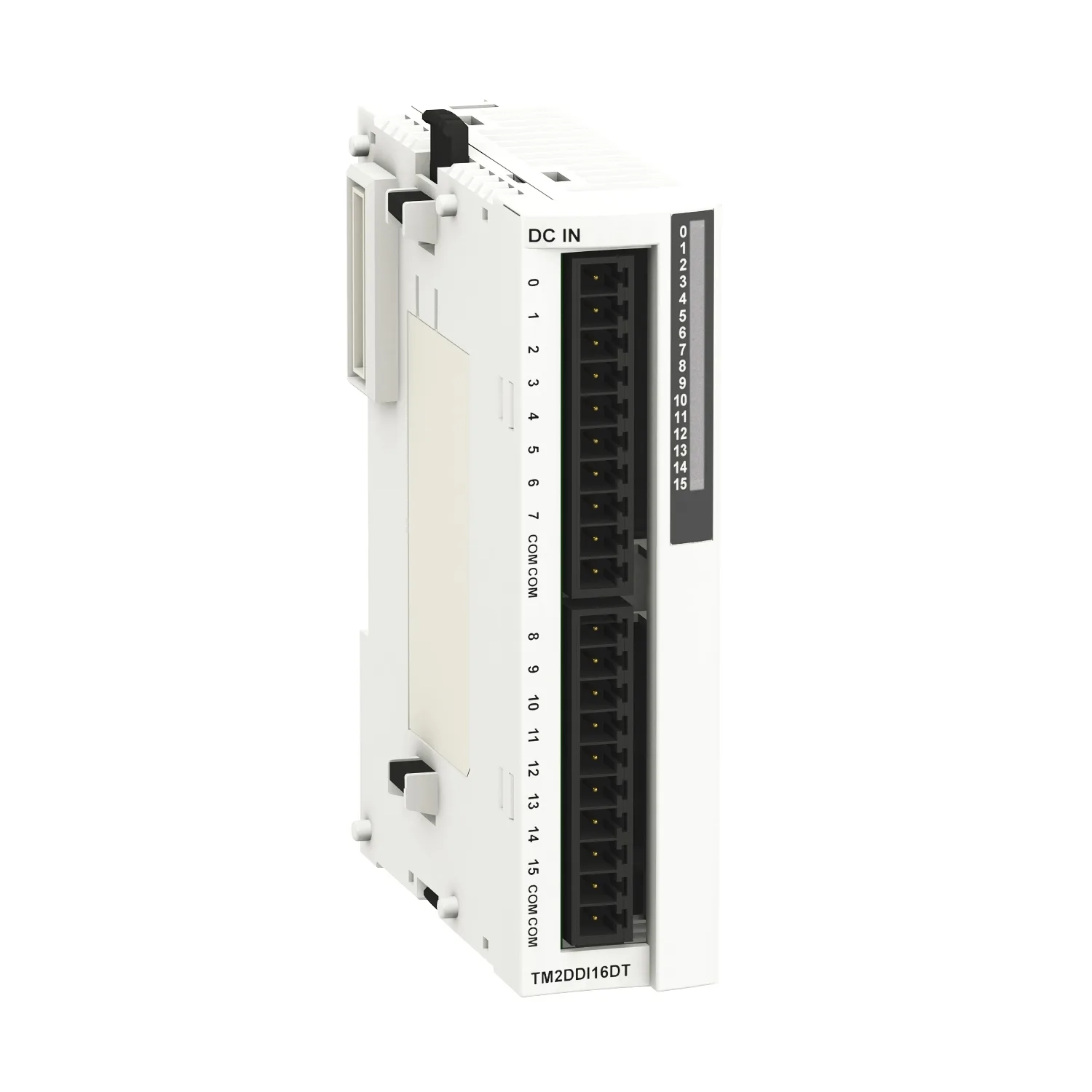

Schneider TM2DDI16DT, I/O expansion module, Modicon M238 logic controller, Twido, 16 inputs 24VDC, 1 removable screw terminal block, wear part. Category: Twido. Not for sale; no price or quote is offered for this product.
- Reference:TM2DDI16DT
- Manufacturer / Brand:Schneider
Key Specifications
- Range Of Product
- Modicon M238 logic controller
- Product Or Component Type
- I/O expansion module
- Discrete Input Number
- 16
- Discrete Input Voltage
- 24 V
Product Description
This digital input module is part of the range Modicon TM2 expansion modules. It consists in 16 digital inputs with sink / source logic and it works at 24V dc rated power supply. It is equipped with one removable screw terminal block and can be mounted on a symmetrical DIN rail 35 mm. It is compatible with Modicon OTB interface modules, Magelis HMI controller XBTGC and Modicon / Twido controllers. • "Wear part I/O module Modicon M238 logic controller for Twido"
Key Features
- "Original Schneider Electric wear part"
- "High quality construction"
- "Higher efficiency"
Technical Specifications
Main5
| Range Of Product | Modicon M238 logic controller |
|---|---|
| Product Or Component Type | I/O expansion module |
| Discrete Input Number | 16 |
| Discrete Input Voltage | 24 V |
| Discrete Input Voltage Type | DC |
Complementary14
| Range Compatibility | Twido; Advantys OTB |
|---|---|
| Input Voltage Limits | 20.4...28.8 V |
| Discrete Input Logic | Sink or source |
| Discrete Input Current | 7 mA |
| Input Impedance | 3.4 kOhm |
| Number Of Common Point | 1 |
| Response Time | 4 ms at state 0; 4 ms at state 1 |
| Isolation Between Channels | None |
| Isolation Between Channels And Internal Logic | 500 V for 1 minute |
| Current Consumption | 40 mA at 5 V DC at state 1 for all input |
| Local Signalling | 1 display block |
| Electrical Connection | 1 removable screw terminal block |
| Mounting Support | 35 mm symmetrical DIN rail |
| Net Weight | 0.065 kg |
Environment3
| Depth | 84.6 mm |
|---|---|
| Height | 90 mm |
| Width | 23.5 mm |
Packing Units6
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 7.4 cm |
| Package 1 Width | 10.6 cm |
| Package 1 Length | 12.8 cm |
| Package 1 Weight | 196.0 g |
Logistical informations1
| Country Of Origin | JP |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
