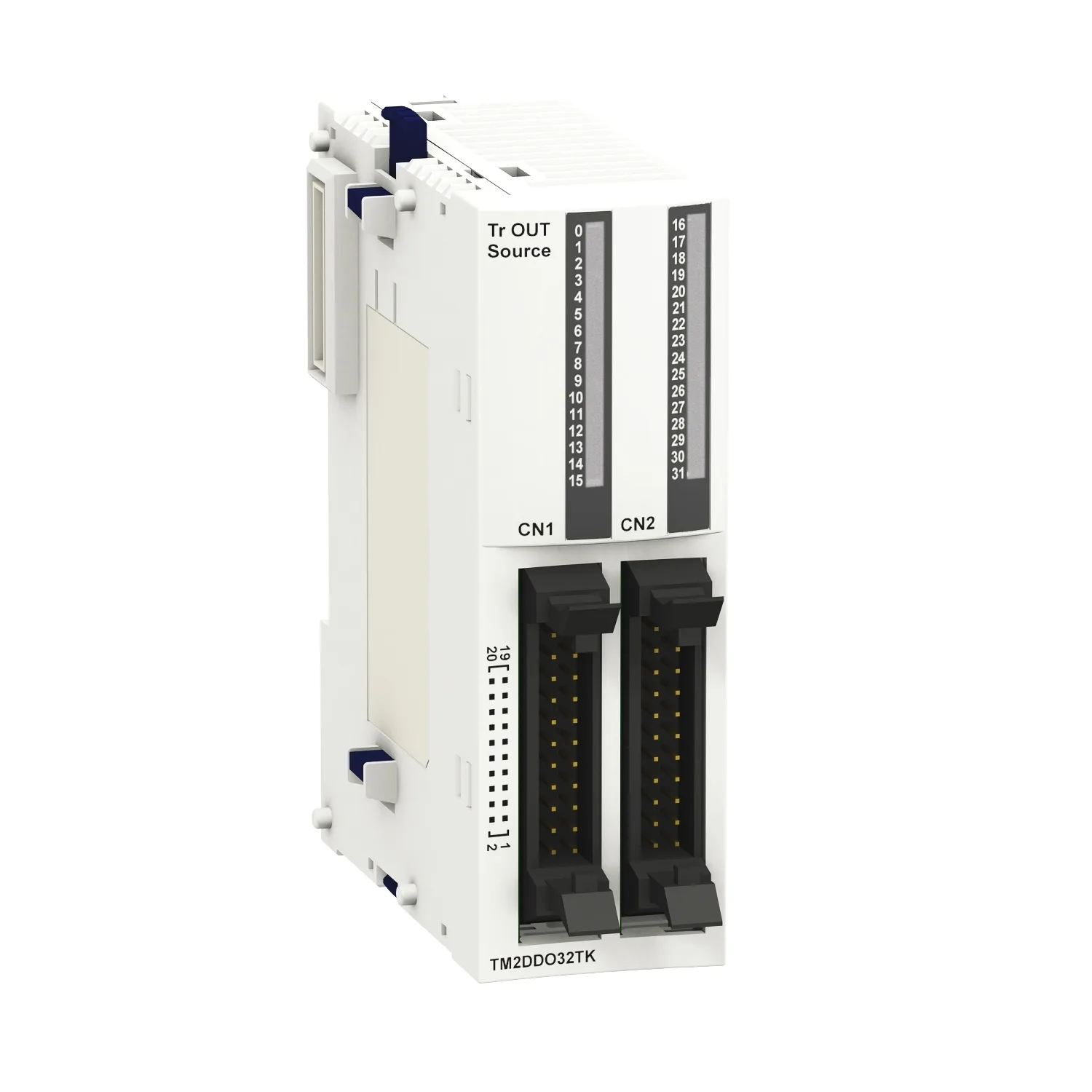

Discrete output module, Modicon M238 logic controller, 32 outputs 24V transistor, 1 connector HE10

This product is part of the Modicon M238 range, an offer of compact logic controllers from 18 to 96 I/O. The discrete output module provides 32 transistor outputs with source (negative) logic. It is an output module with an output voltage of 24V, a current consumption of 40mA at 24V DC and an output current of 0.4mA. It is furnished with HE10 connector for electrical connection. Its dimensions are 33.5mm (Width) x 81.3mm (Depth) x 90mm (Height). It weighs 0.105kg. This product is compatible with Advantys OTB and Twido ranges. It supports 35mm symmetrical DIN rail mount. The Modicon M238 programmable controllers provide optimised solution to repetitive machines based on high speed counting and simple positioning features for 1 to 4 axis through PTO channels or CANopen. Modicon M238 programmable controllers (PLCs) provide simple and intelligent solutions to meet all your business needs, 20 to 248 I/O 0.3µs per instruction.
