Discrete output module, Modicon M238 logic controller, 8 outputs 24V transistor, 1 screw terminal block
Not for sale

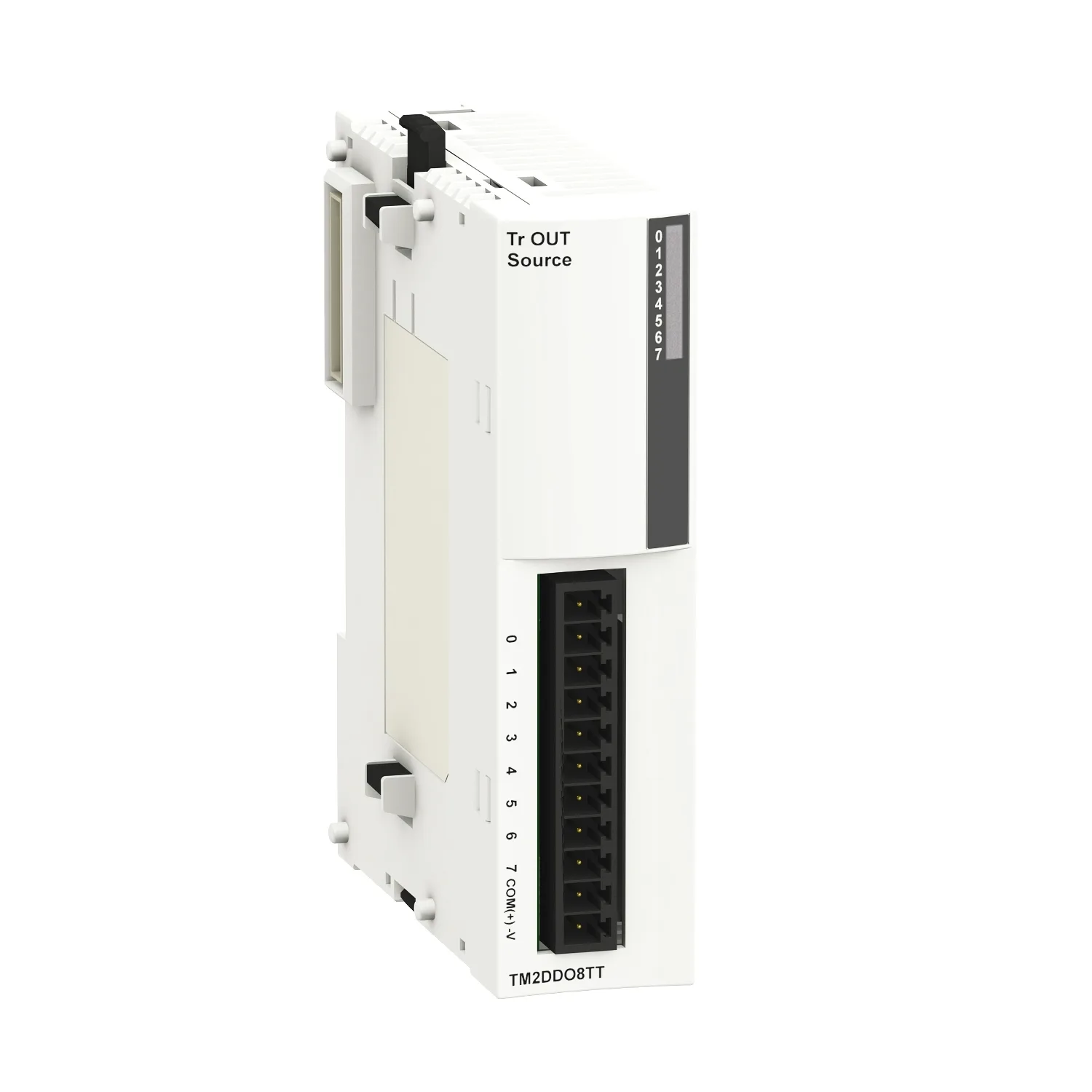

Schneider TM2DDO8TT, Discrete output module, Modicon M238 logic controller, 8 outputs 24V transistor, 1 screw terminal block. Category: Twido. Not for sale; no price or quote is offered for this product.
- Reference:TM2DDO8TT
- Manufacturer / Brand:Schneider
Key Specifications
- Range Of Product
- Modicon M238 logic controller
- Product Or Component Type
- Discrete output module
- Discrete Output Number
- 8
- Discrete Output Type
- Transistor
Product Description
Digital output module M238 - 8 outputs 24 V transistor - 1 removable screw terminal block
Technical Specifications
Main7
| Range Of Product | Modicon M238 logic controller |
|---|---|
| Product Or Component Type | Discrete output module |
| Discrete Output Number | 8 |
| Discrete Output Type | Transistor |
| Discrete Output Voltage | 24 V |
| Discrete Output Logic | Source |
| Discrete Output Current | 0.5 A |
Complementary19
| Range Compatibility | Advantys OTB; Twido |
|---|---|
| Output Voltage Limits | 20.4...28.8 V |
| Current Per Channel | 0.6 A |
| Maximum Current Per Output Common | 4 A |
| Number Of Common Point | 1 |
| Response Time | 450 µs from state 0 to state 1; 450 µs from state 1 to state 0 |
| [Ures] Residual Voltage | 0.4 V at state 1 |
| Maximum Leakage Current | 0.1 mA |
| Maximum Inductive Load | 10 mH |
| Maximum Tungsten Load | 12 W |
| Short-circuit Protection | With automatic reactivaton |
| Overload Protection | With automatic reactivaton |
| Isolation Between Channels | None |
| Isolation Between Channels And Internal Logic | 500 V for 1 minute |
| Current Consumption | 10 mA at 5 V DC at state 1 for all output; 20 mA at 24 V DC at state 1 for all output |
| Local Signalling | 1 display block |
| Electrical Connection | 1 removable screw terminal block |
| Mounting Support | 35 mm symmetrical DIN rail |
| Net Weight | 0.085 kg |
Environment3
| Depth | 84.6 mm |
|---|---|
| Height | 90 mm |
| Width | 27.3 mm |
Packing Units6
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 7.0 cm |
| Package 1 Width | 10.0 cm |
| Package 1 Length | 12.5 cm |
| Package 1 Weight | 184.0 g |
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
