Schneider

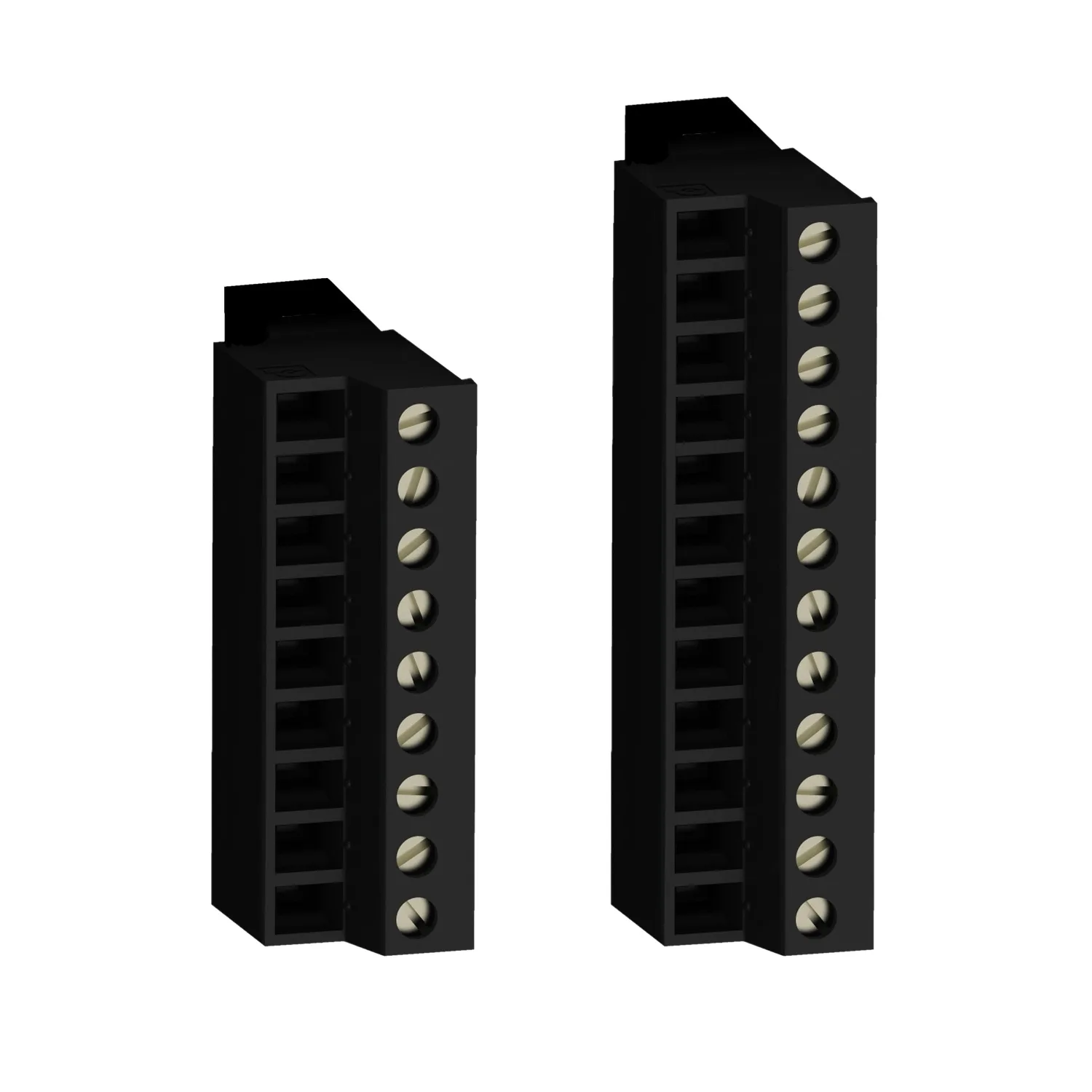

connector set for M221C - IO
Not for sale
Schneider TMAT2CSET, connector set for M221C - IO. Category: Logic Controller - Modicon M221. Not for sale; no price or quote is offered for this product.
- Reference:TMAT2CSET
- Manufacturer / Brand:Schneider
Key Specifications
- Accessory / Separate Part Category
- Connection accessories
- Product Or Component Type
- Terminal block
- Accessory / Separate Part Type
- Screw terminal block
Product Description
- connector set for M221C - IO
- This connector set is proposed as a spare part available for Modicon M221 logic controllers. • It is used to connect the inputs/outputs of Modicon M221 logic controllers
- It is composed of 8 removable connectors with screw terminals used to equip a Modicon M221 logic controller. • This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. • "SD card and USB port"
- "2 analog inputs and a broad choice of I/Os"
- "Run/stop switch and cartridge extension"
- "Ethernet and serial line ports"
- "A bus connector is set to distribute data and power supply when coupling Modicon TM3 expansion modules to Modicon PLC"
Technical Specifications
Main3
| Accessory / Separate Part Category | Connection accessories |
|---|---|
| Product Or Component Type | Terminal block |
| Accessory / Separate Part Type | Screw terminal block |
Complementary5
| Range Compatibility | Modicon M221 |
|---|---|
| Product Compatibility | Logic controller |
| Accessory / Separate Part Destination | Modicon M221 |
| Number Of Connectors | 8 terminal block connector(s) |
| Electrical Connection | removable screw terminal block, 8 terminal(s)for inputs/outputs (pitch 5.08 mm); removable screw terminal block, 9 terminal(s)for inputs/outputs (pitch 5.08 mm); removable screw terminal block, 10 terminal(s)for inputs/outputs (pitch 5.08 mm); removable screw terminal block, 12 terminal(s)for inputs/outputs (pitch 5.08 mm); removable screw terminal block, 13 terminal(s)for inputs/outputs (pitch 5. |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 7.500 cm |
| Package 1 Length | 10.000 cm |
| Package 1 Weight | 133.000 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 50 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.255 kg |
Logistical informations1
| Country Of Origin | ID |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
