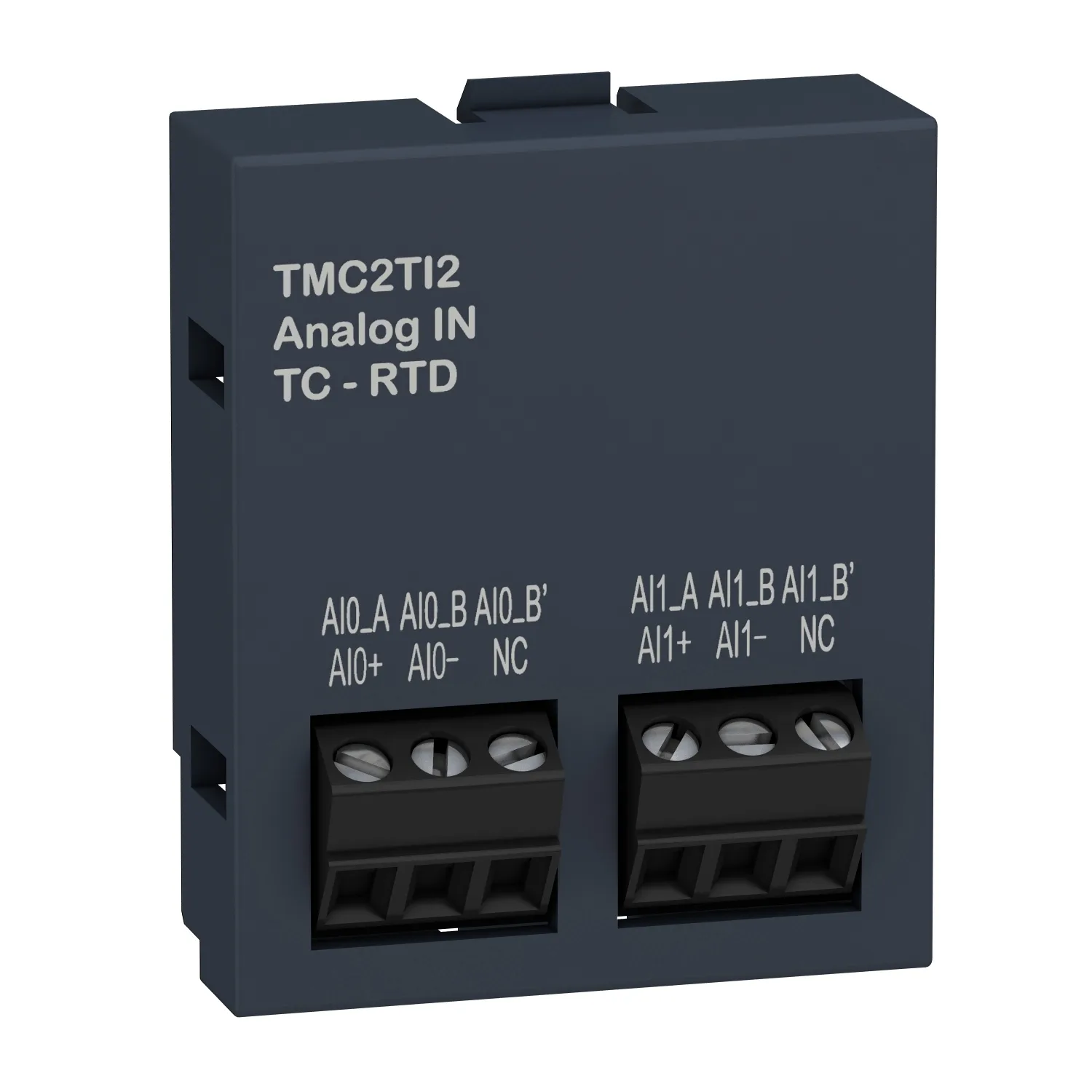

Name: Automation module: extension; IN: 2; IN 1: analogue
Brand: Schneider
SKU: TMC2TI2
Price: 219.00 EUR
Availability: InStock

Schneider TMC2TI2, Automation module: extension; IN: 2; IN 1: analogue. Category: Logic Controller - Modicon M221. In stock.

Key Specifications

Product Description

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures.
This analogue input cartridge provides 2 temperature inputs with 14bit input resolution.
This product requires minimal installation and offers tremendous versatility.
The maximum twisted shielded pairs cable distance between devices is <30m for input.
There is no insulation between analogue input and internal logic. It is furnished with screw terminal for electrical connection.
Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg.
This cartridge is compatible with Modicon M221C PLC.
Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks

"SD card and USB port"
"2 analog inputs and a broad choice of I/Os"
"Run/stop switch and cartridge extension"
"Ethernet and serial line ports"
"A bus connector is set to distribute data and power supply when coupling Modicon TM3 expansion modules to Modicon PLC"

Main4

Complementary18

Analogue Input Type	thermocouple - 200...1000 °C with thermocouple J; thermocouple - 200...1300 °C with thermocouple K; thermocouple 0...1760 °C with thermocouple R; thermocouple 0...1760 °C with thermocouple S; thermocouple 0...1820 °C with thermocouple B; thermocouple - 200...400 °C with thermocouple T; thermocouple - 200...1300 °C with thermocouple N; thermocouple - 200...800 °C with thermocouple E; thermocouple 0
Analogue Input Resolution	14 bits
LSB Value	0.1 °C
Sampling Duration	125 ms, analogue input type: thermocouple; 250 ms, analogue input type: temperature probe
Absolute Accuracy Error	+/- 0.1 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe; +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C; +/- 0.1 % of full scale at 25 °C for thermocouple K 0...1300 °C; +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C; +/- 0.1 % of full scale at 25 °C for thermocouple J 0...1000 °C; +/- 0.4 % of full scale at 25 °C for thermocouple
Temperature Drift	+/- 0.02 %FS/°C
Repeat Accuracy	+/- 0.5 %FS
Non-linearity	+/- 0.01 %FS
Cross Talk	<= 1 LSB
Type Of Cable	Twisted shielded pairs cable
Electrical Connection	3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs
Maximum Cable Distance Between Devices	Twisted shielded pairs cable: <30 m for input
Insulation	Non-insulated between analogue input and internal logic
Height	41 mm
Depth	15 mm
Width	35 mm
Net Weight	0.015 kg
Input Impedance	>= 1 MOhm

Environment1

Immunity To Microbreaks	10 ms

Packing Units18

Logistical informations1

Country Of Origin	JP

Contractual warranty1

Warranty (in Months)	18
