Analogue input cartridge, Modicon M241, 2 analog current inputs

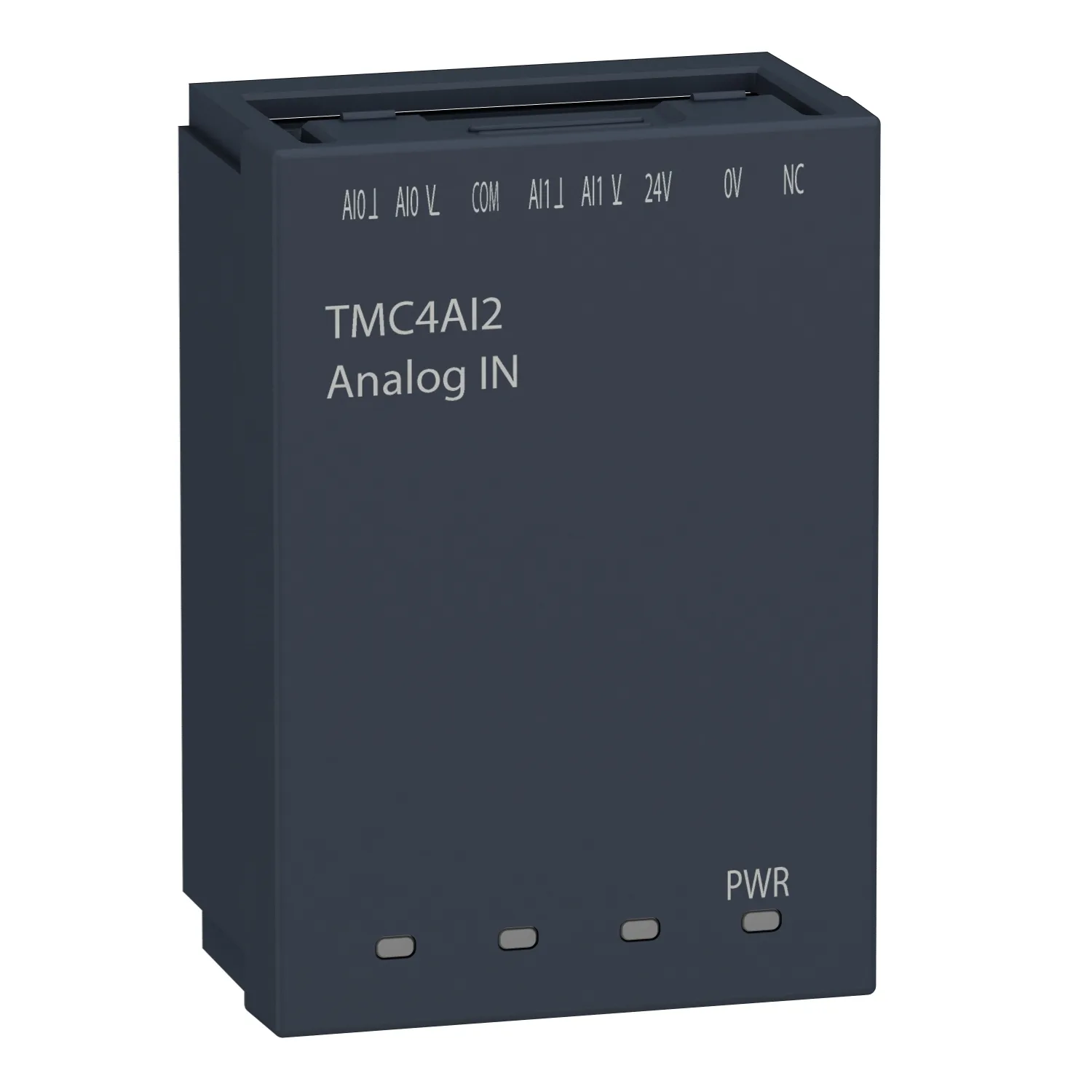

Schneider TMC4AI2, Analogue input cartridge, Modicon M241, 2 analog current inputs. Category: Logic Controller - Modicon M241. Request a quote for price and lead time.
- Reference:TMC4AI2
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:273.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Modicon M241
- Product Or Component Type
- Analogue input cartridge
- Product Compatibility
- Modicon M241C
- Analogue Input Number
- 2
Product Description
This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue input cartridge is for logic controllers. It provides 2 analogue current inputs with 16bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. This analogue input cartridge is compatible with Modicon M241C PLC. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.
Key Features
- "Intuitive machine programming with EcoStruxure Machine Expert."
- "Ready-to-use applications and function blocks."
- "Flexible and scalable machine control allowing an easy upgrade to higher performance platforms to improve efficiency."
- "Connected everywhere via Ethernet, wireless access, web servers to simplify machine integration and maintenance."
Technical Specifications
Main4
| Range Of Product | Modicon M241 |
|---|---|
| Product Or Component Type | Analogue input cartridge |
| Product Compatibility | Modicon M241C |
| Analogue Input Number | 2 |
Complementary21
| Analogue Input Type | current 4...20 mA; current 0...20 mA; voltage 0...10 V |
|---|---|
| Analogue Input Resolution | 12 bits |
| LSB Value | 1 mVvoltage; 2 µAcurrent |
| Sampling Duration | 10 ms |
| Absolute Accuracy Error | +/- 0.2 % of full scale at 25 °C |
| Temperature Drift | +/- 0.006 %FS/°C |
| Repeat Accuracy | +/- 0.2 %FS |
| Non-linearity | +/- 0.05 %FS |
| Cross Talk | 80 dB |
| Type Of Cable | Twisted shielded pairs cable |
| Electrical Connection | 1 x 1.5 mm² 1 spring terminal block with pitch 3.5 mm adjustment for inputs and supply |
| Maximum Cable Distance Between Devices | Twisted shielded pairs cable: <30 m for input |
| Insulation | Between input and internal logic at 500 V DC; Non-insulated between inputs |
| Supply Voltage Limits | 20.4…28.8 V |
| Local Signalling | 1 LED (green) for PWR |
| Height | 50 mm |
| Depth | 21 mm |
| Width | 34 mm |
| Net Weight | 0.055 kg |
| Permissible Continuous Overload | 40 mA, analogue input type: current; 30 V, analogue input type: voltage |
| Input Impedance | <= 250 Ohm current; >= 1 MOhm voltage |
Environment1
| Immunity To Microbreaks | 10 ms |
|---|
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 7 cm |
| Package 1 Width | 3.5 cm |
| Package 1 Length | 3 cm |
| Package 1 Weight | 74 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 27 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.24 kg |
Logistical informations1
| Country Of Origin | ID |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
