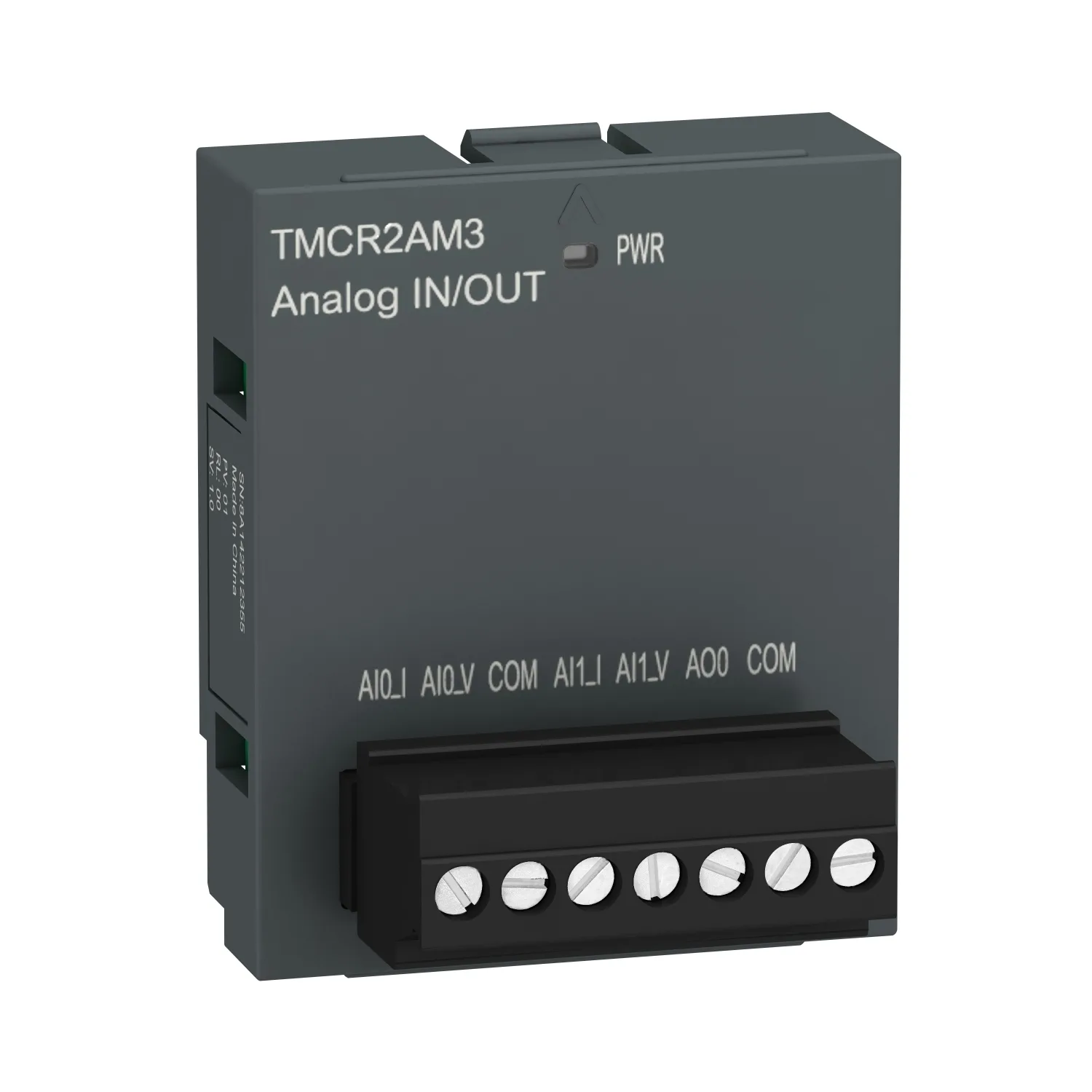

TMCR2AM3 - M200 Cartridge module, 2ch analog input, 1ch analog output, Voltage-Current

• "This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 IO."
• "This optional cartridge provides 2 additional analog inputs and 1 analog output."
• "The analog IOs can be configured as current 4mA to 20mA or 0mA to 20mA, or voltage 0V to 10V or 0V to 5V."
• "This IO cartridge provides additional analog IOs (16bits resolution) to the controller."
• "The data conversion time is 2ms, the sampling duration is 1ms."
• "The IOs are wired with twisted shielded pairs cable on the screw terminal block of the cartridge."
• "It is 41mm high, 15mm deep, and 35mm wide. It weighs 0.024kg."
• "This optional cartridge provides 2 additional analog inputs and 1 analog ouput to the controller."
• "This product is marqued CE, and certified by IEC/EN 61131-2, UL 508, and IEC/EN 61010-2-201."
• "This cartridge is an optional part of Modicon M200 logic controller."
• "It installs in a specific slot on controller, when removing the cartridge cover."
• "Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise."
• "Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion."

Key Features

• "Ideal logic controller for your small automation systems requiring flexibility and simple motion"
• "Designed for a quick assembly on controller"
• "Enhance the capacity of the controller"
• "Fast and easy programming with a simplified tool"
