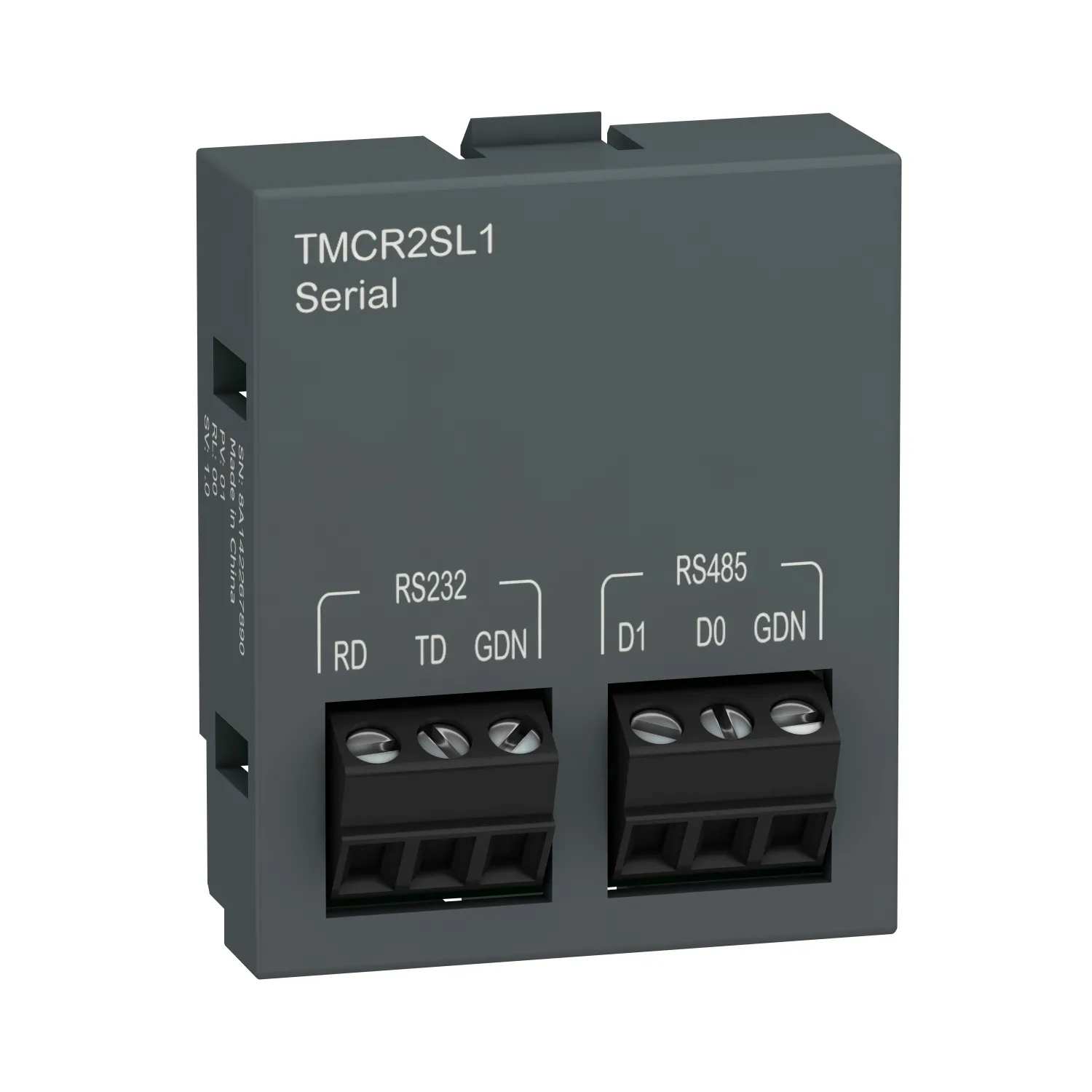

TMCR2SL1 - M200 Cartridge module, serial communication

• "This product is part of the Easy modicon M200 range, an offer of logic controllers for up to 168 IO."
• "This optional cartridge provides one communication channel to M200 controllers."
• "The additional communication channel is a RS232C or RS485 serial link."
• "This Serial link cartridge cartridge provides one additional communication channel to M200 controllers."
• "Its data transmission rate varies from 1.2 to 115.2 kbit/s (115.2kbit/s by default) for bus length of 15m on RS485 and for bus length of 3m on RS232C."
• "The cartridge connection type is screw terminal block for RS232 and RS485."
• "It is 41mm high, 15mm deep, and 35mm wide. It weighs 0.012kg."
• "This optional cartridge provides 1 SL communication channel to the controller."
• "This product is marqued CE, and certified by IEC/EN 61131-2, UL 508, and IEC/EN 61010-2-201."
• "This cartridge is an optional part of Modicon M200 logic controller."
• "It installs in a specific slot on controller, when removing the cartridge cover."
• "Entry-level plc perfectly suited to meet specific needs of emerging markets at an affordable price without compromise."
• "Best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion."

Key Features

• "Ideal logic controller for your small automation systems requiring flexibility and simple motion"
• "Designed for a quick assembly on controller"
• "Enhance the capacity of the controller"
• "Fast and easy programming with a simplified tool"
