TPRBCPFN - TeSys Island Communication Module PROFINET
Schneider TPRBCPFN, TeSys Island Communication Module PROFINET. Category: TeSys island. Request a quote for price and lead time.
- Reference:TPRBCPFN
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:446.04 EUR (Request a quote)
Key Specifications
- Range
- TeSys
- Product Name
- TeSys island
- Device Short Name
- TPRBC
- Product Or Component Type
- Bus coupler
Product Description

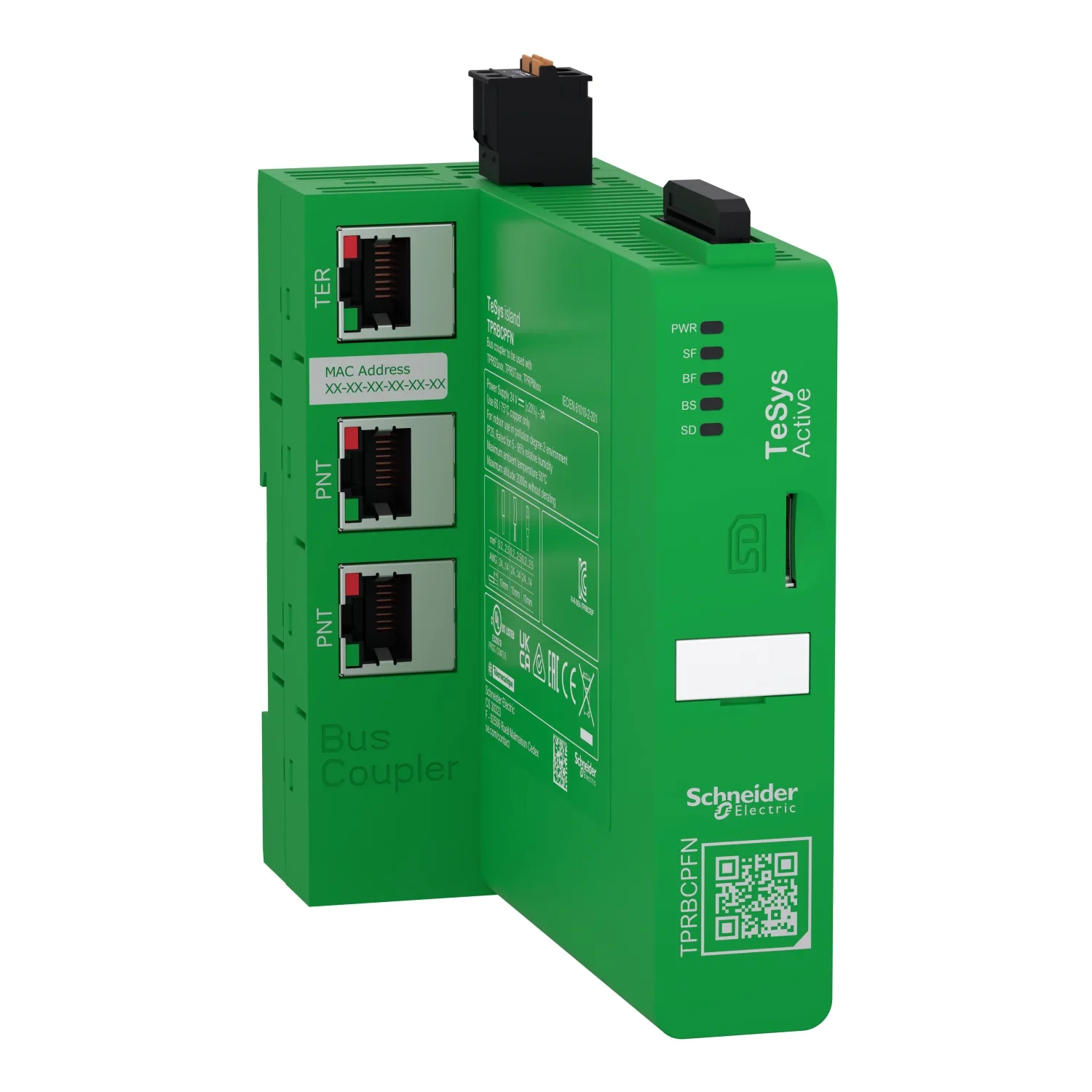

TeSys island bus coupler, point of connection between a TeSys island configuration (group of starters) and an automation system over PROFINET IO. It performs all functions for the application (TeSys avatars), selectable and configurable through SoMove or MachineExpert. For diagnostics and maintenance of the TeSys island, a web server (OMT) is embedded. To be supplied externally by 24V DC, it provides two RJ45 ports for PROFINET IO, one RJ45 service port over Ethernet, one micro SD card port, and a port for the internal bus interconnecting the modules of the island. Mounting on DIN rail, together with the other modules of the TeSys island configuration, the bus coupler is the module on the most left position. Multi standards certified (IEC, UL, CSA, CCC, EAC), cybersecurity Achilles Level 2 certified.
Key Features
- Full integration with SoMove/MachineExpert for the programming of the island
- One single 24V DC power supply for the complete island
- Manages motors and other electrical loads up to 80 A (AC-3) / 37 kW/40 hp
- All adjustments and setting are digitized, no mechanical dials or dip switches
- Embedded Cybersecurity (Achilles Level 2)
Technical Specifications
Main16
| Range | TeSys |
|---|---|
| Product Name | TeSys island |
| Device Short Name | TPRBC |
| Product Or Component Type | Bus coupler |
| Communication Port Protocol | Profinet IO |
| Device Presentation | Point of connection between a group of starters and an automation controller; Management of the complete island up to 20 modules |
| Function Available | Full integration with SoMove for the control of the island; One single 24V DC power supply for the complete island; Two fieldbus ports for communication with an automation controller; One service port with an embedded webserver for maintenance |
| Product Compatibility | TPRST motor starter; TPRSS SIL motor starter; TPRPM power module; TPRSM SIL interface module; TPRVM voltage interface module; TPRAN analog IO module; TPRDG digital IO module |
| Integrated Connection Type | 2 RJ45, connector female for protocol Profinet IO, fieldbus port; 1 RJ45, connector female for protocol Ethernet TCP/IP, service port; 1 micro SD card port |
| Communication Service | Conformance class A (CC-A); Net load class 1; DHCP client; SNTP client |
| Local Signalling | 1 LED green/yellow with PWR marking for power supply status; 1 LED green/red with SF marking for system fault; 1 LED green/red with BF marking for network status; 1 LED green/red with BS marking for internal bus status; 1 LED green/red with SD marking for SD card access (SD) |
| [Us] Rated Supply Voltage | 24 V DC |
| Supply Voltage Limits | 20.4…28.8 V DC |
| Rated Current | 3 A maximum |
| Protection Type | External fuse, 3 A fast fuse for power supply; Reverse polarity protection for power supply |
| Power Dissipation In W | 7 W maximum |
Complementary9
| Cybersecurity | Achilles certified |
|---|---|
| Standards | EN/IEC 60947-4-1; CSA C22.2 No 61010-2-201; UL 61010-2-201; EN/IEC 61010-2-201 |
| Product Certifications | UL; CSA; EAC; Achilles: level 2; PNO |
| Mounting Mode | Horizontal and vertical (35 mm symmetrical rail) |
| Connections - Terminals | Power supply: removable spring terminal block 2 cable(s) 2.5 mm² (14 AWG) rigid or flexible |
| Width | 50 mm |
| Height | 118 mm |
| Depth | 114 mm |
| Net Weight | 0.204 kg |
Environment11
| Ambient Air Temperature For Storage | -25…70 °C |
|---|---|
| Ambient Air Temperature For Operation | -10…60 °C |
| Relative Humidity | 5…95 % |
| Operating Altitude | 0...2000 m without derating |
| IP Degree Of Protection | IP20 |
| Pollution Degree | 2 |
| Protective Treatment | TC |
| Fire Resistance | 960 °C conforming to UL 94 |
| Shock Resistance | 15 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Vibration Resistance | 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6; 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic Compatibility | Electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2; Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3; Communication: fast transients immunity test, level 3, 1 kV, conforming to EN/IEC 61000-4-4; Power supply: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4; Communication: surge immunity test (common mode), level |
Packing Units6
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 6.8 cm |
| Package 1 Width | 13.7 cm |
| Package 1 Length | 15.5 cm |
| Package 1 Weight | 283.0 g |
Logistical informations1
| Country Of Origin | ID |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
