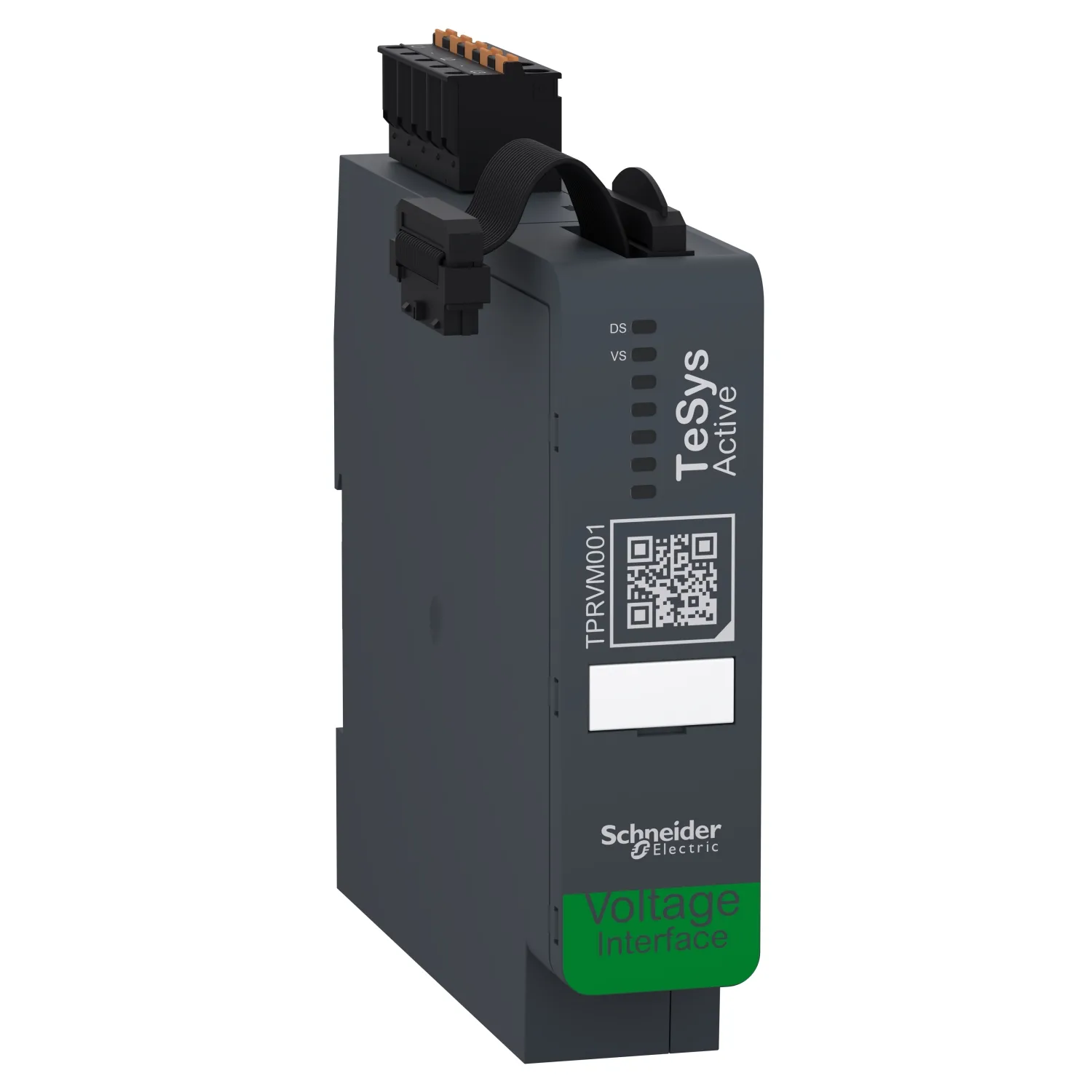

TPRVM001 - TeSys Island Voltage Interface Module
Schneider TPRVM001, TeSys Island Voltage Interface Module. Category: TeSys island. Request a quote for price and lead time.
- Reference:TPRVM001
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:343.44 EUR (Request a quote)
Key Specifications
- Range
- TeSys
- Product Name
- TeSys island
- Device Short Name
- TPRVM
- Product Or Component Type
- Voltage interface module
Product Description
TeSys island voltage interface module, 100-690V / 47-63Hz. Connected to a TPRBC bus coupler it measures the mains voltages powering the loads. It provides the voltage values for power and energy calculation, calculates the RMS values and phase sequence. Voltage measurement range 100-690 V +/- 5 %, phase frequency measurement range 47-63 Hz +/- 1 Hz in single phase or 3-phase systems. Mounting on DIN rail together with the other modules of the TeSys island configuration. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Key Features
- Monitoring of the mains voltage powering the island
- Reporting of the voltage to the bus coupler to enable power & energy monitoring
- Manages motors and other electrical loads up to 80 A (AC-3) / 37 kW/40 hp
- All adjustments and setting are digitized, no mechanical dials or dip switches
- Embedded Cybersecurity (Achilles Level 2)
Technical Specifications
Main14
| Range | TeSys |
|---|---|
| Product Name | TeSys island |
| Device Short Name | TPRVM |
| Product Or Component Type | Voltage interface module |
| Device Presentation | Monitoring of the mains voltage powering the island; Reporting of the voltage to the bus coupler to enable power & energy monitoring |
| Function Of Module | Monitoring of voltages in single phase systems L-N or L-L; Monitoring of voltages in 3-phase systems without neutral N connection; Calculation of RMS phase voltages, voltage phase sequence, fundamental frequency; Identification of dip and swell events level and duration |
| Product Compatibility | TPRBC bus coupler |
| [Ue] Rated Operational Voltage | 690 V AC 47...63 Hz |
| [Ui] Rated Insulation Voltage | 690 V conforming to IEC 61010-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to IEC 61010-1 |
| Overvoltage Category | III |
| Monitoring Type | Phase voltage 100...690 V; Phase frequency 47...63 Hz; Phase sequence |
| Measurement Accuracy | Voltage: +/- 5 %,; Frequency: +/- 1 Hz, |
| Local Signalling | 1 LED (green/red) for DS (device status); 1 LED (green/red) for VS (voltage status) |
Complementary11
| [Us] Rated Supply Voltage | 24 V DC supplied by the bus coupler |
|---|---|
| Current Consumption | 2 mA |
| Power Dissipation In W | 0.5 W maximum |
| Standards | IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201 |
| Product Certifications | CSA; UL; EAC (pending) |
| Mounting Mode | Horizontal and vertical (35 mm symmetrical rail) |
| Connections - Terminals | Measuring input: removable spring terminal block 3 cable(s) 0.2…2.5 mm² (24 AWG...14 AWG) rigid; Measuring input: removable spring terminal block 3 cable(s) 0.2…2.5 mm² (24 AWG...14 AWG) flexible without cable end; Measuring input: removable spring terminal block 3 cable(s) 0.25…2.5 mm² (22 AWG...14 AWG) flexible with cable end |
| Width | 25 mm |
| Height | 118 mm |
| Depth | 114 mm |
| Net Weight | 0.159 kg |
Environment11
| Ambient Air Temperature For Storage | -25…70 °C |
|---|---|
| Ambient Air Temperature For Operation | -10…60 °C |
| Relative Humidity | 5…95 % |
| Operating Altitude | 0...2000 m without derating |
| IP Degree Of Protection | IP20 |
| Pollution Degree | 2 |
| Protective Treatment | TC |
| Fire Resistance | 960 °C conforming to UL 94 |
| Shock Resistance | 15 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Vibration Resistance | 1.5 mm peak to peak (f= 3…13 Hz) conforming to IEC 60068-2-6; 1 gn (f= 13…200 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic Compatibility | Electrostatic discharge, level 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2; Radiated RF fields, level 3, 10 V/m, conforming to EN/IEC 61000-4-3; Line voltage circuit: fast transients immunity test, level 3, 2 kV, conforming to EN/IEC 61000-4-4; Line voltage circuit: surge immunity test (common mode), level 3, 2 kV, conforming to EN/IEC 61000-4-5 |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 13.500 cm |
| Package 1 Length | 15.500 cm |
| Package 1 Weight | 235.000 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 16 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 4.295 kg |
Logistical informations1
| Country Of Origin | ID |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
