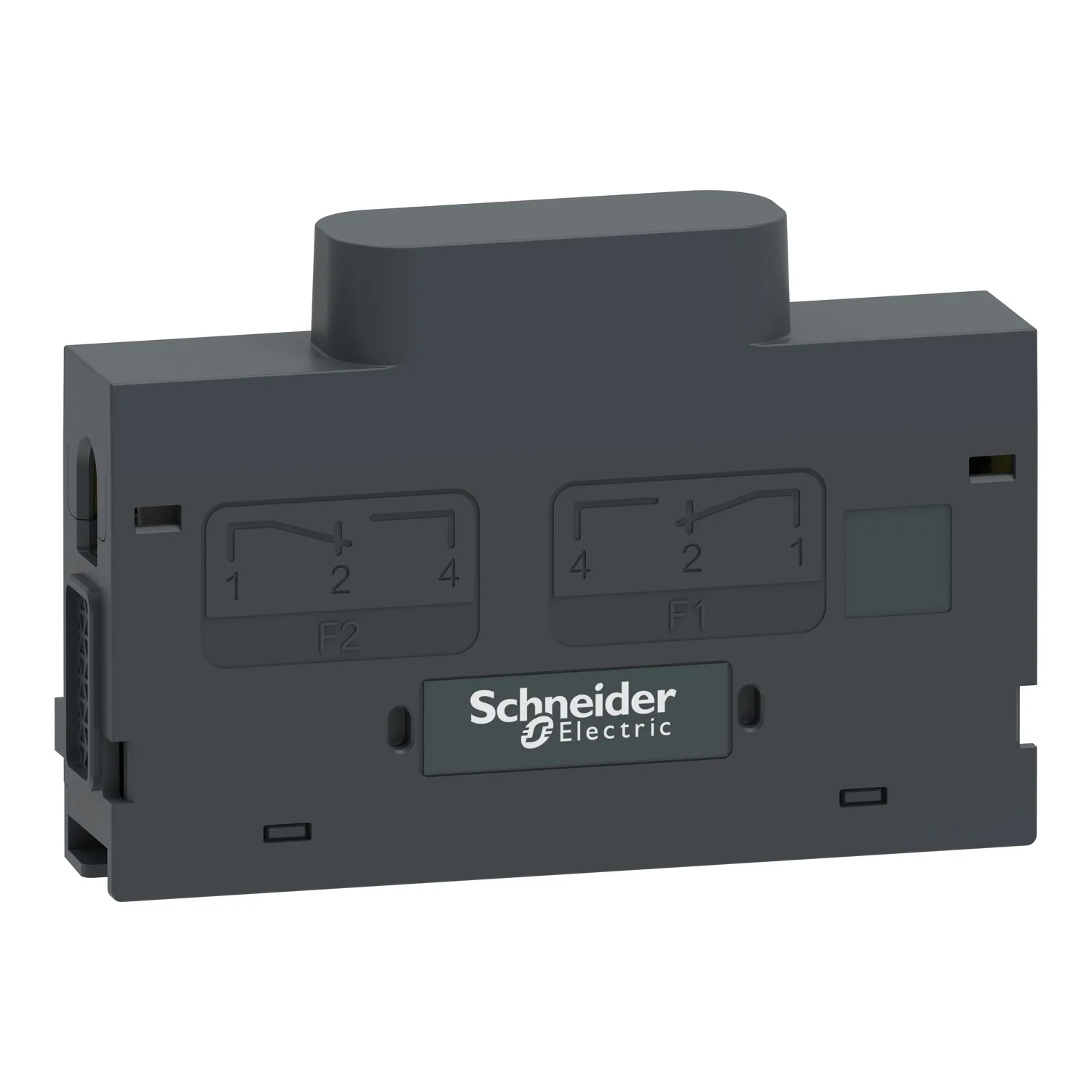

TPSAUX33 - Auxiliary contact for OFF position
Schneider TPSAUX33, Auxiliary contact for OFF position. Category: TransferPacT. Request a quote for price and lead time.
- Reference:TPSAUX33
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:60.10 EUR (Request a quote)
Key Specifications
- Range Of Product
- TransferPacT
- Product Or Component Type
- Auxiliary Contact Module
- Device Application
- Signalling
Product Description
İs auxilary contact as signal accessory used to ATSE in TransferPacT series. It is acted as status indication for switch mechanical position on OFF poisition for TransferPacT transfer switch. This contact compostion of signalling is 2NC+2NO. The rated operational current(Ie) is provided 2A@250VAC. It is mounted mode "clip-on" side by side on the right of transfer switch. This wiring capacity is 0.75-2.5 mm²(18-14 AWG) with PZ2 screw driver.
Key Features
- "Indication for OFF position."
- "auxiliary contact accessory."
- "easily add on."
- "Compatible with TransferPacT ATS series."
Technical Specifications
Main3
| Range Of Product | TransferPacT |
|---|---|
| Product Or Component Type | Auxiliary Contact Module |
| Device Application | Signalling |
Complementary11
| Auxiliary Contact Composition | 2 NO + 2 NC |
|---|---|
| Signalling Function | Switch position (off) |
| Auxiliary Connection Terminal | Screw clamp terminal |
| Mounting Mode | Clip-on |
| Mounting Position | Right-angled |
| Tightening Torque | 0.6 N.m +/- 0.1 N.m |
| Height | 90 mm |
| Width | 17.5 mm |
| Depth | 49.5 mm |
| Net Weight | 60 g |
| Accessory / Separate Part Category | Signalling accessory |
Environment2
| IP Degree Of Protection | IP20 |
|---|---|
| Pollution Degree | 3 |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 4.3 cm |
| Package 1 Width | 5.8 cm |
| Package 1 Length | 12.0 cm |
| Package 1 Weight | 180.0 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 18 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.5 kg |
Logistical informations1
| Country Of Origin | CN |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
