Schneider
compact PLC base Twido - 100..240 V AC supply - 24 I 24 V DC - 16 O
Not for sale

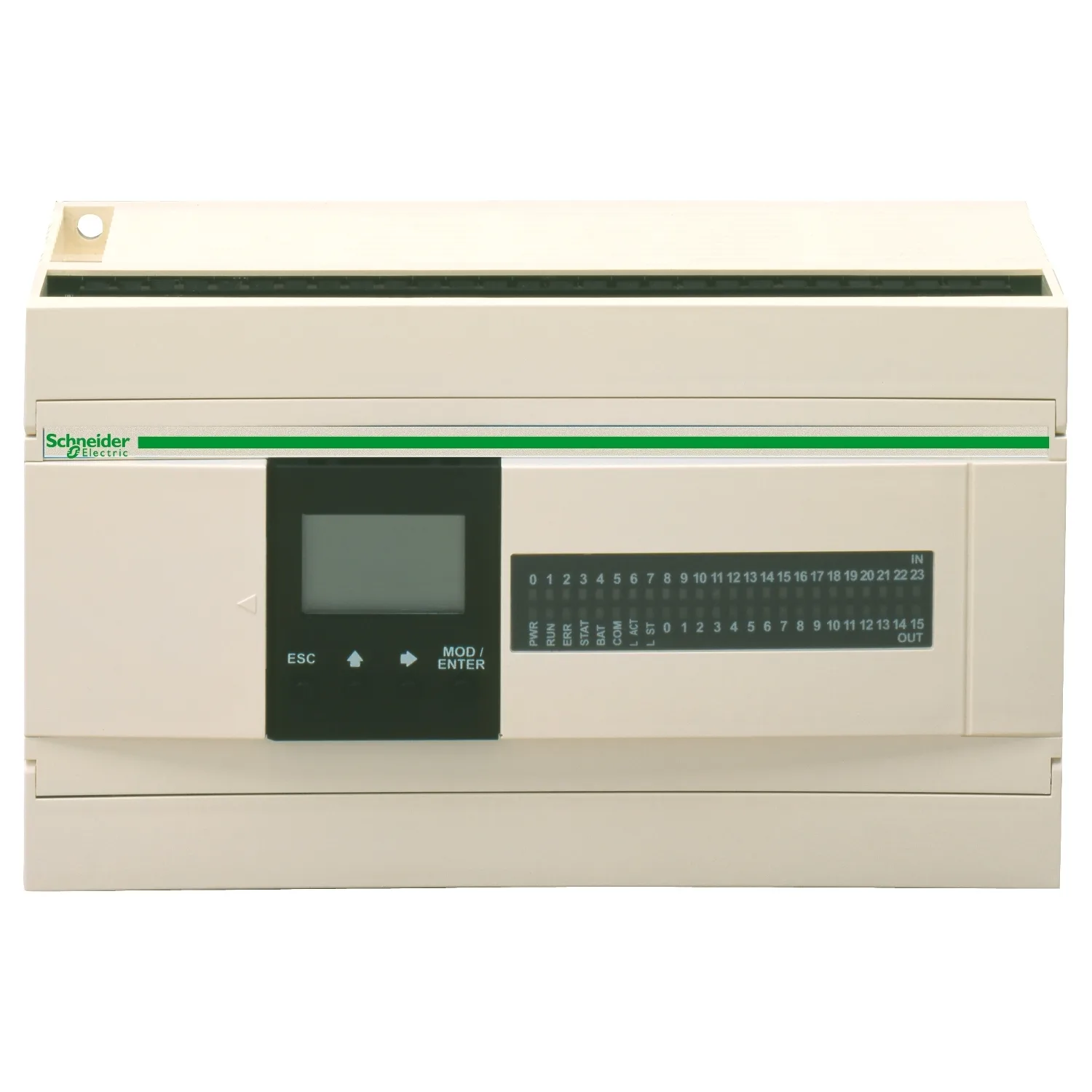

Schneider TWDLCAE40DRF, compact PLC base Twido - 100..240 V AC supply - 24 I 24 V DC - 16 O. Category: Twido. Not for sale; no price or quote is offered for this product.
- Reference:TWDLCAE40DRF
- Manufacturer / Brand:Schneider
Key Specifications
- Range Of Product
- Twido
- Product Or Component Type
- Compact base controller
- Concept
- Transparent Ready
- Discrete I/O Number
- 40
Product Description
Compact PLC Twido - 100..240 V AC Supply - 24 I 24 V DC - 16 O
Technical Specifications
Main14
| Range Of Product | Twido |
|---|---|
| Product Or Component Type | Compact base controller |
| Concept | Transparent Ready |
| Discrete I/O Number | 40 |
| Discrete Input Number | 24 |
| Discrete Input Voltage | 24 V |
| Discrete Input Voltage Type | DC |
| Discrete Output Number | 14 for relay; 2 for transistor |
| [Us] Rated Supply Voltage | 100...240 V AC |
| Maximum Number Of I/O Expansion Module | 7 |
| Use Of Slot | Memory cartridge |
| Data Backed Up | Internal RAM external battery TSXPLP01, 3 years autonomy |
| Integrated Connection Type | Power supply; Non isolated serial link mini DIN, Modbus/character mode master/slave RTU/ASCII (RS485) half duplex, 38.4 kbit/s; Serial link interface adaptor (RS232C/RS485); Ethernet TCP/IP RJ45, , 10/100 Mbit/s, 1 twisted pair transparent ready class A10 |
| Complementary Function | PID; Event processing |
Complementary40
| Discrete Input Logic | Sink or source |
|---|---|
| Input Voltage Limits | 20.4...26.4 V |
| Discrete Input Current | 11 mA for I0.0 to I0.1; 11 mA for I0.6 to I0.7; 7 mA for I0.2 to I0.5; 7 mA for I0.8 to I0.23 |
| Input Impedance | 2100 Ohm for I0.0 to I0.1; 2100 Ohm for I0.6 to I0.7; 3400 Ohm for I0.2 to I0.5; 3400 Ohm for I0.8 to I0.23 |
| Filter Time | 150 µs + programmed filter time for I0.6 to I0.23 at state 0; 35 µs + programmed filter time for I0.0 to I0.5 at state 1; 40 µs + programmed filter time for I0.0 to I0.5 at state 0; 40 µs + programmed filter time for I0.6 to I0.23 at state 1 |
| Insulation Between Channel And Internal Logic | 1500 Vrms for 1 minute |
| Insulation Resistance Between Channel | None |
| Minimum Load | 0.1 mA |
| Contact Resistance | 30000 µOhm |
| Load Current | 2 A at 240 V AC inductive load, operating rate <30 cyc/mn for relay output; 2 A at 240 V AC resistive load, operating rate <30 cyc/mn for relay output; 2 A at 30 V DC inductive load, operating rate <30 cyc/mn for relay output; 2 A at 30 V DC resistive load, operating rate <30 cyc/mn for relay output |
| Mechanical Durability | 20000000 cycles for relay output |
| Electrical Durability | 100000 cycles for relay output |
| Current Consumption | 128 mA at 24 V DC at state 1; 128 mA at 24 V DC state 1 + input ON; 170 mA at 5 V DC at state 0; 240 mA at 5 V DC state 1 + input ON; 5 mA at 24 V DC at state 0; 90 mA at 5 V DC at state 1 |
| I/O Connection | Non-removable screw terminal block |
| Maximum Input/output Number | 152 removable screw terminal block with I/O expansion module; 208 spring terminal block with I/O expansion module; 264 HE-10 connector with I/O expansion module |
| Network Frequency | 50/60 Hz |
| Supply Voltage Limits | 85…264 V |
| Network Frequency Limits | 47…63 Hz |
| Power Supply Output Current | 0.4 A for 24 V DC sensors |
| Input Current | 790 mA |
| Inrush Current | 35 A |
| Protection Type | Power protection by internal fuse |
| Power Consumption In VA | 65 VA at 100 V; 77 VA at 264 V |
| Insulation Resistance | > 10 MOhm at 500 V, between I/O and earth terminals; > 10 MOhm at 500 V, between supply and earth terminals |
| Program Memory | 3000 instructions |
| Exact Time For 1 Kinstruction | 1 ms |
| System Overhead | 0.5 ms |
| Memory Description | Internal RAM, 128 counters, no floating, no trigonometrical; Internal RAM, 128 timers, no floating, no trigonometrical; Internal RAM, 256 internal bits, no floating, no trigonometrical; Internal RAM, 3000 internal words, no floating, no trigonometrical; Internal RAM, double words, no floating, no trigonometrical; Internal RAM, floating, trigonometrical |
| Free Slots | 1 |
| Realtime Clock | With clock, clock drift <= 30 s/month, operating time: 30 days |
| Port Ethernet | 10BASE-T/100BASE-TX |
| Communication Service | BOOTP client, Ethernet TCP/IP; Modbus messaging, Ethernet TCP/IP |
| Positioning Functions | PWM/PLS 2 channel(s) at 7 kHz |
| Counting Input Number | 2 counting input(s) at 20000 Hz 32 bits; 4 counting input(s) at 5000 Hz 16 bits |
| Analogue Adjustment Points | 1 point adjustable from 0 to 511 points; 1 point adjustable from 0...1023 |
| Status LED | 1 LED (green) PWR; 1 LED (green) RUN; 1 LED per channel (green) I/O status; 1 LED (red) module error (ERR); 1 LED user pilot light (STAT); 1 LED 10 or 100 Mbit/s rate (LACT); 1 LED Ethernet status (LAN ST) |
| Depth | 70 mm |
| Height | 95 mm |
| Width | 90 mm |
| Net Weight | 0.525 kg |
Environment12
| Immunity To Microbreaks | 10 ms |
|---|---|
| Dielectric Strength | 1500 V for 1 minute, between I/O and earth terminals; 1500 V for 1 minute, between supply and earth terminals |
| Product Certifications | UL; CSA |
| Marking | CE |
| Ambient Air Temperature For Operation | 0…55 °C |
| Ambient Air Temperature For Storage | -25…70 °C |
| Relative Humidity | 30…95 % without condensation |
| IP Degree Of Protection | IP20 |
| Operating Altitude | 0...2000 m |
| Storage Altitude | 0…3000 m |
| Vibration Resistance | 0.075 mm at 10…57 Hz on 35 mm symmetrical DIN rail; 1 gn at 57…150 Hz on 35 mm symmetrical DIN rail; 1.6 mm at 2…25 Hz on plate or panel with fixing kit; 4 gn at 25…100 Hz on plate or panel with fixing kit |
| Shock Resistance | 15 gn for 11 ms |
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
