Schneider
DeviceNet card - 125/250/500 kbps
Not for sale

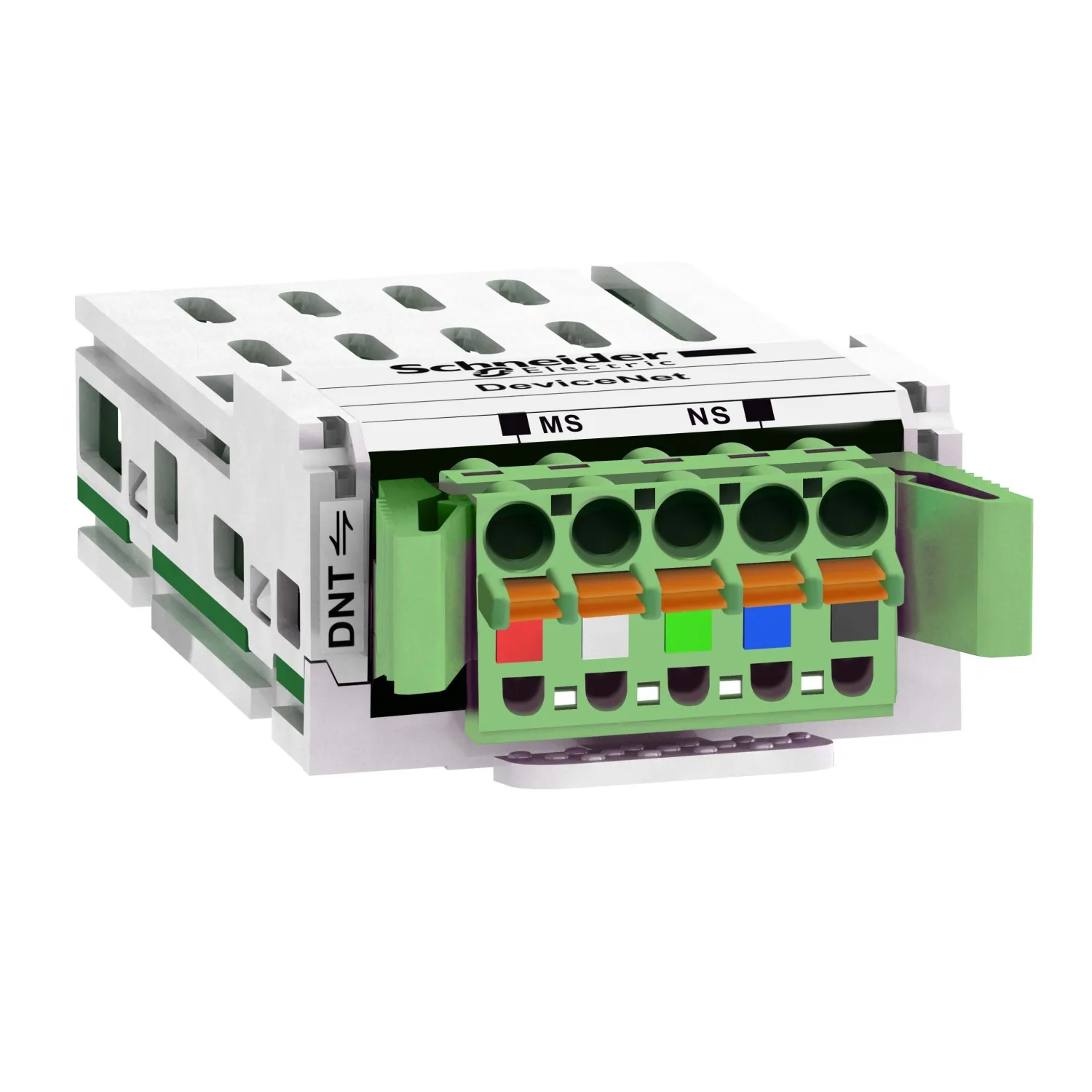

Schneider VW3M3301, DeviceNet card - 125/250/500 kbps. Category: Lexium 32 & Motors. Not for sale; no price or quote is offered for this product.
- Reference:VW3M3301
- Manufacturer / Brand:Schneider
Key Specifications
- Range Compatibility
- Lexium 32
- Accessory / Separate Part Category
- Communication accessories
- Accessory / Separate Part Type
- Card
- Product Or Component Type
- Communication module
Product Description
DeviceNet Card - 125/250/500 kbps
Technical Specifications
Main6
| Range Compatibility | Lexium 32 |
|---|---|
| Accessory / Separate Part Category | Communication accessories |
| Accessory / Separate Part Type | Card |
| Product Or Component Type | Communication module |
| Product Compatibility | Lexium 32M |
| Accessory / Separate Part Destination | Servo drive |
Complementary6
| Transmission Rate | 125 kbps 500 m; 500 kbps 100 m; 250 kbps |
|---|---|
| Number Of Addresses | 1…63 |
| Web Services | Inputs : polled, change of state, cyclic; Standard assemblies; Extended assemblies; Outputs : polled; Motion assemblies; Communication monitoring; CIP motion profile; Auto device replacement |
| Communication Port Protocol | DeviceNet |
| Electrical Connection | 1 connector spring connector 5 pin(s) |
| Local Signalling | 1 LED (green/red) for MS (Module Status); 1 graphic display terminal for control mode received, reference received; 1 LED for NS (Network Status) |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 4.2 cm |
| Package 1 Width | 6.2 cm |
| Package 1 Length | 9.0 cm |
| Package 1 Weight | 57.0 g |
| Unit Type Of Package 2 | S01 |
| Number Of Units In Package 2 | 24 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 15.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 1.593 kg |
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
