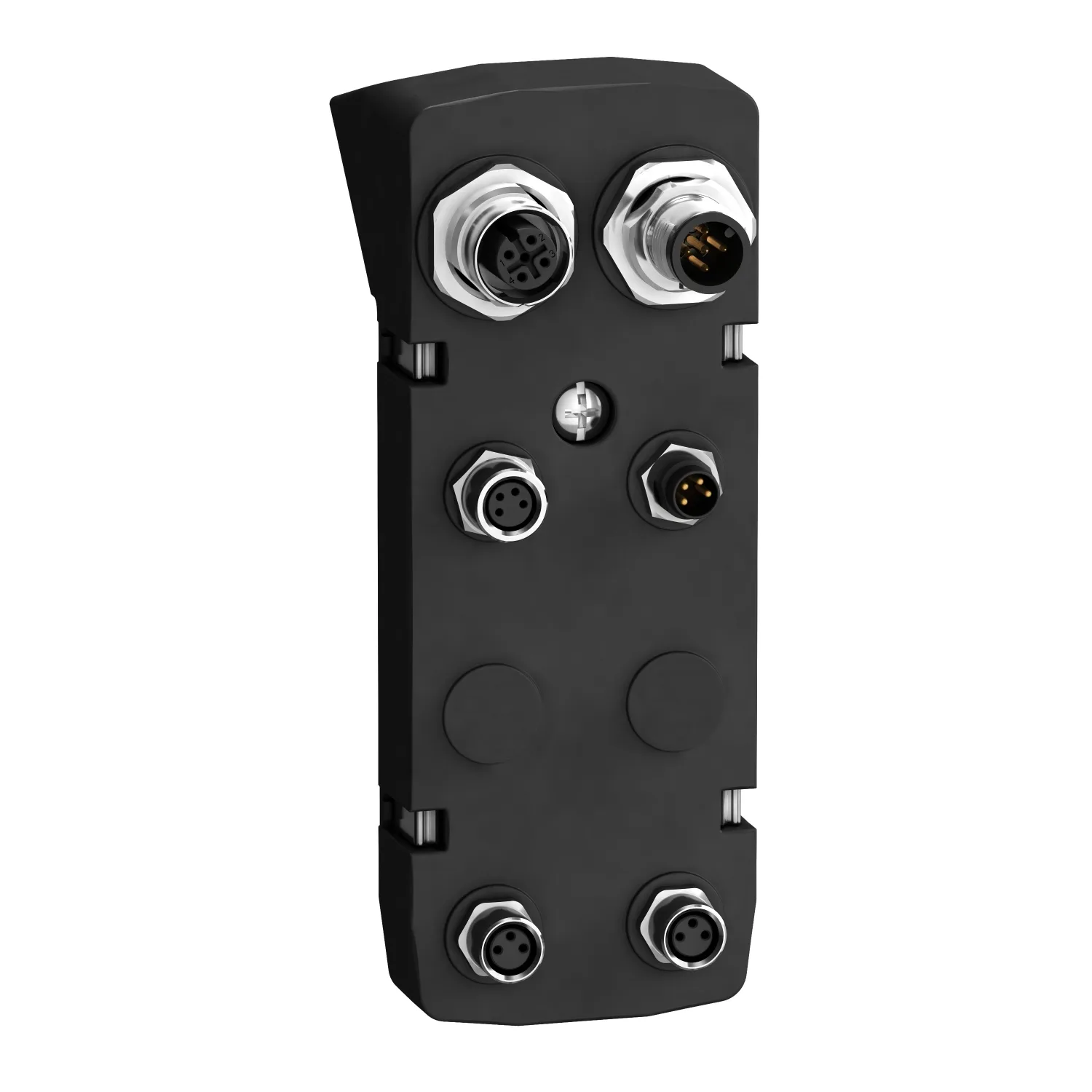

Connector module, Lexium 32i, connection for industrial connectors, CANopen, 2 DI, source, STO
Schneider VW3M9103, Connector module, Lexium 32i, connection for industrial connectors, CANopen, 2 DI, source, STO. Category: Lexium 32i. Request a quote for price and lead time.
- Reference:VW3M9103
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:490.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Lexium 32i
- Product Or Component Type
- Connector module
- Accessory / Separate Part Category
- Connection accessories
- Electrical Connection
- Industrial connector
Product Description
This product is part of the Lexium 32i range, an offer integrated servo drive from 0.6kW to 2.2kW. This product consists in a connection module for industrial connectors. It provides 2 discrete sourceinputs. Communication interfaces are CANmotion and CANopen DS402 with STO (safe torque off) safety function. It is furnished with industrial connector for electrical connection. Its 2 bus connectors are M12 type. It weighs 0.22kg. This product conforms to international standards IEC/EN 61800-5-1, IEC/EN 61800-3, and is UL and CSA certified. This product is compatible with Lexium 32i integrated servo drives. This product is compatible with drive control unit LXM32i CANopen. With servo motor and servo drive integrated in one housing, the Lexium 32i is designed for application areas requiring high precision and advanced motor control.
Key Features
- Ensures DI monitoring on CANopen bus
- Easy to connect with industrial M8 connectors
- Integrates Safe Torque Off safety function
- Designed for easy mounting and cabling
Technical Specifications
Main4
| Range Of Product | Lexium 32i |
|---|---|
| Product Or Component Type | Connector module |
| Accessory / Separate Part Category | Connection accessories |
| Electrical Connection | Industrial connector |
Complementary8
| Product Compatibility | Drive control unit LXM32i CANopen |
|---|---|
| Accessory / Separate Part Destination | Motor BMI with drive control unit Lexium 32i |
| Range Compatibility | Lexium 32i |
| Communication Interface | CANmotion; CANopen DS402 |
| Input/output Type | 2 discrete inputs |
| Discrete Input Logic | Source |
| Safety Function | STO (safe torque off) |
| Net Weight | 0.222 kg |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 8.3 cm |
| Package 1 Width | 11.7 cm |
| Package 1 Length | 17.0 cm |
| Package 1 Weight | 216.0 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 12 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.09 kg |
Logistical informations1
| Country Of Origin | DE |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
