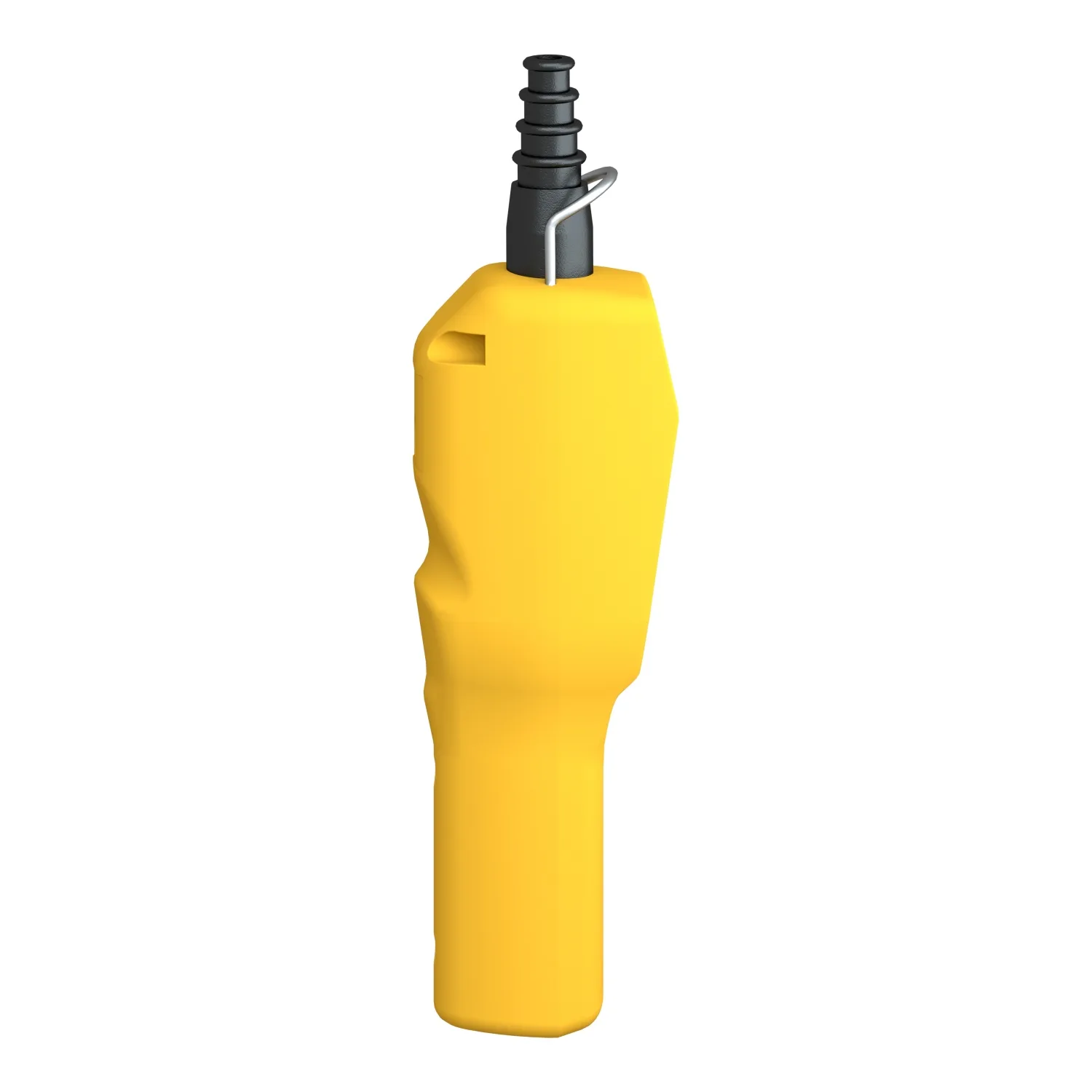

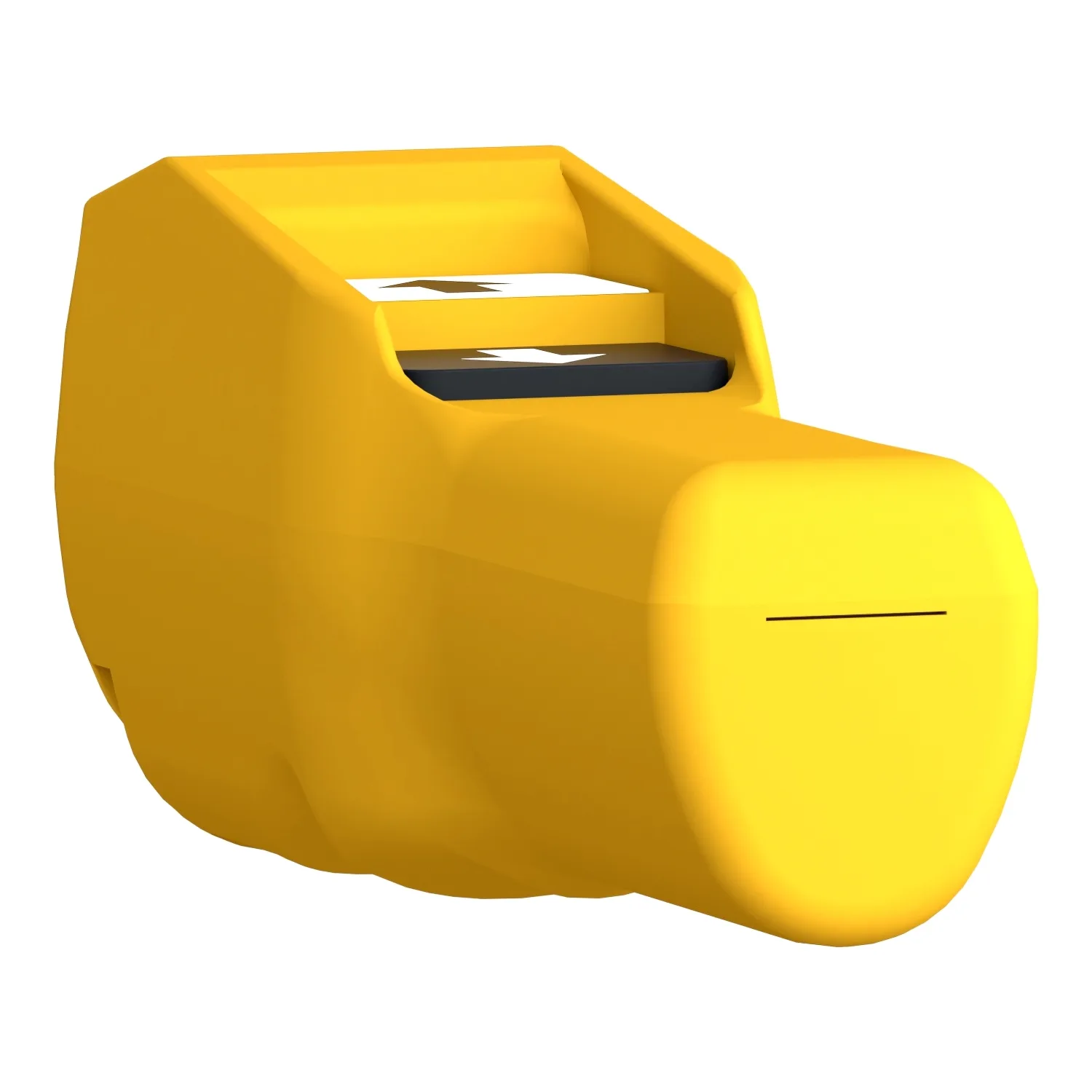

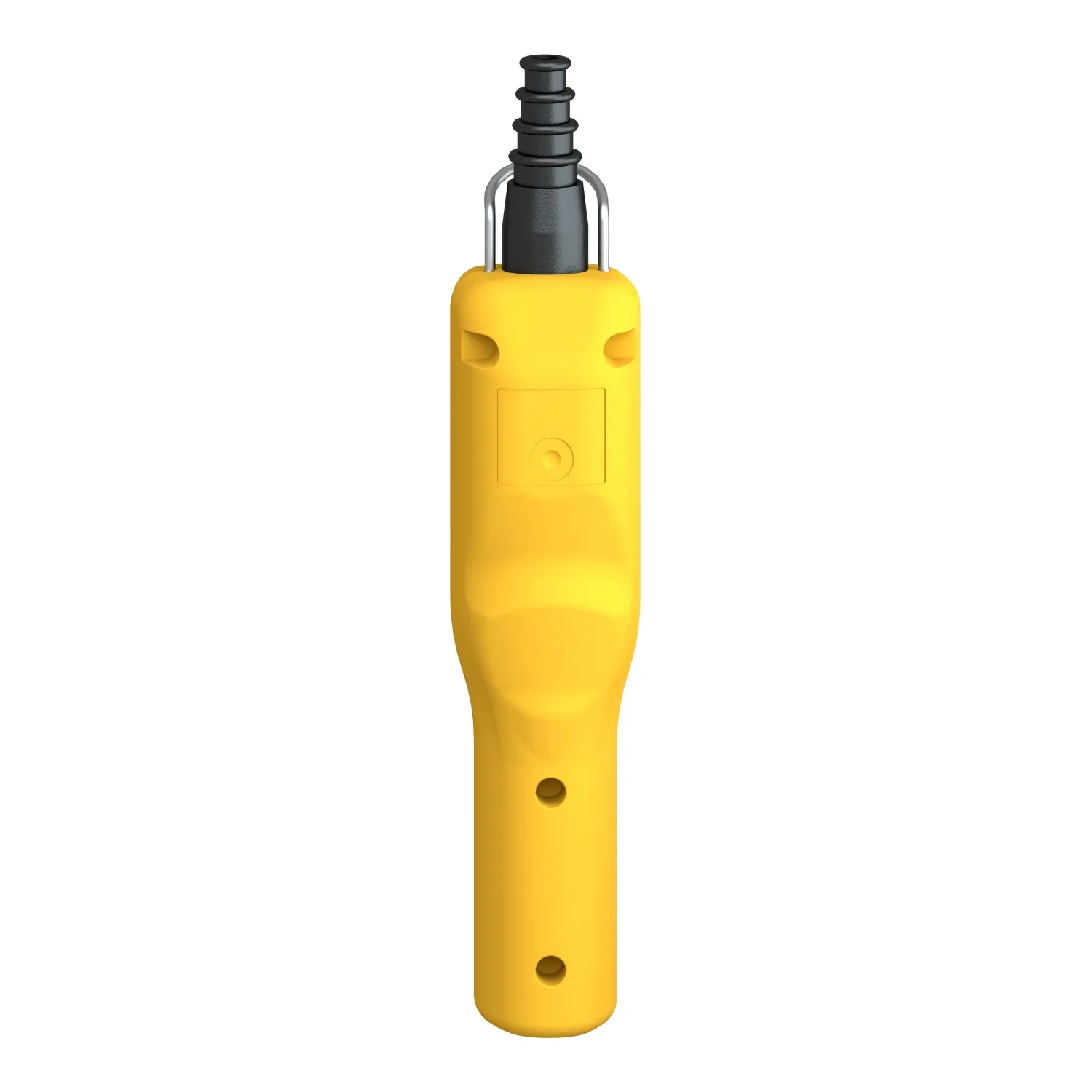

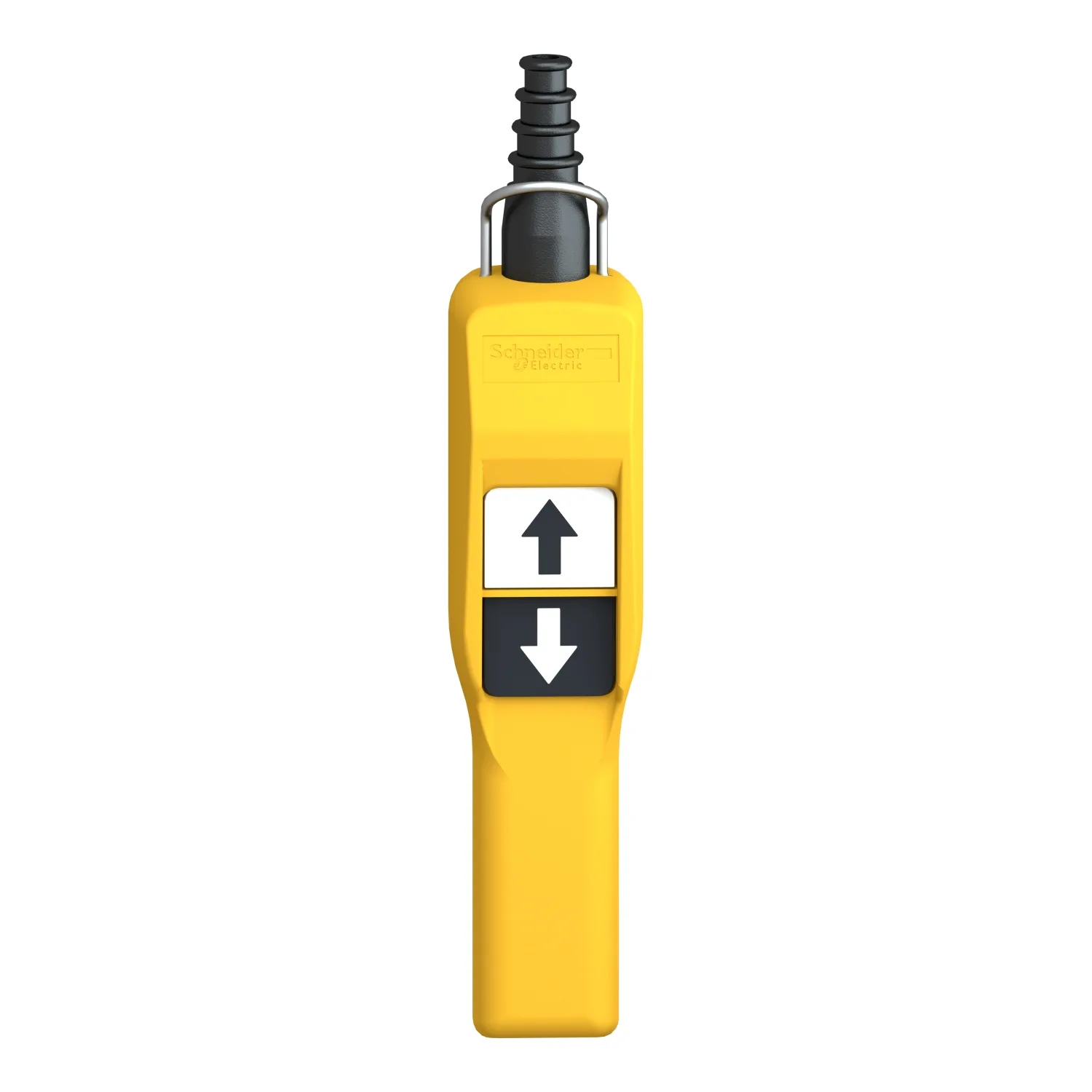

| Control Station Type | Double insulated |
|---|
| Enclosure Material | Polypropylene |
|---|
| Control Type | Intuitive |
|---|
| Electrical Circuit Type | Control circuit |
|---|
| Enclosure Type | Complete ready for use |
|---|
| Control Station Application | Control of single speed hoist motor |
|---|
| Control Station Composition | 2 booted push-buttons |
|---|
| Control Button Type | First push-button 1 NO raise, slow; Second push-button 1 NO lower, slow |
|---|
| Product Compatibility | ZB2BE101 for each direction |
|---|
| Mechanical Interlocking | With mechanical interlocking |
|---|
| Control Station Colour | Yellow |
|---|
| Connections - Terminals | Screw clamp terminals, 1 x 2.5 mm² with or without cable end; Screw clamp terminals, 2 x 1.5 mm² with or without cable end |
|---|
| Standards | UL 508; IEC 60204-32; IEC 60947-5-1; CSA C22.2 No 14 |
|---|
| Product Certifications | UL; CSA |
|---|
| Protective Treatment | TH |
|---|
| Ambient Air Temperature For Operation | -25…70 °C |
|---|
| Ambient Air Temperature For Storage | -40…70 °C |
|---|
| Vibration Resistance | 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6 |
|---|
| Shock Resistance | 100 gn conforming to IEC 60068-2-27 |
|---|
| Overvoltage Category | Class II conforming to IEC 61140 |
|---|
| IP Degree Of Protection | IP65 conforming to IEC 60529 |
|---|
| IK Degree Of Protection | IK08 conforming to IEC 62262 |
|---|
| Mechanical Durability | 1000000 cycles |
|---|
| Cable Entry | Rubber sleeve with stepped entry 7…15 mm |
|---|
| Contact Code Designation | A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A; A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
|---|
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
|---|
| [Ui] Rated Insulation Voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
|---|
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947-1 |
|---|
| Contact Operation | Slow-break |
|---|
| Maximum Resistance Across Terminals | 25 MOhm |
|---|
| Operating Force | 13…15 N |
|---|
| Short-circuit Protection | 10 A fuse protection by cartridge fuse type gG |
|---|
| Rated Operational Power In W | 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IE |
|---|
| Terminals Description ISO N°1 | (13-14)NO |
|---|
| Terminal Identifier | (11-12)NC; (13-14)NO |
|---|
