Schneider

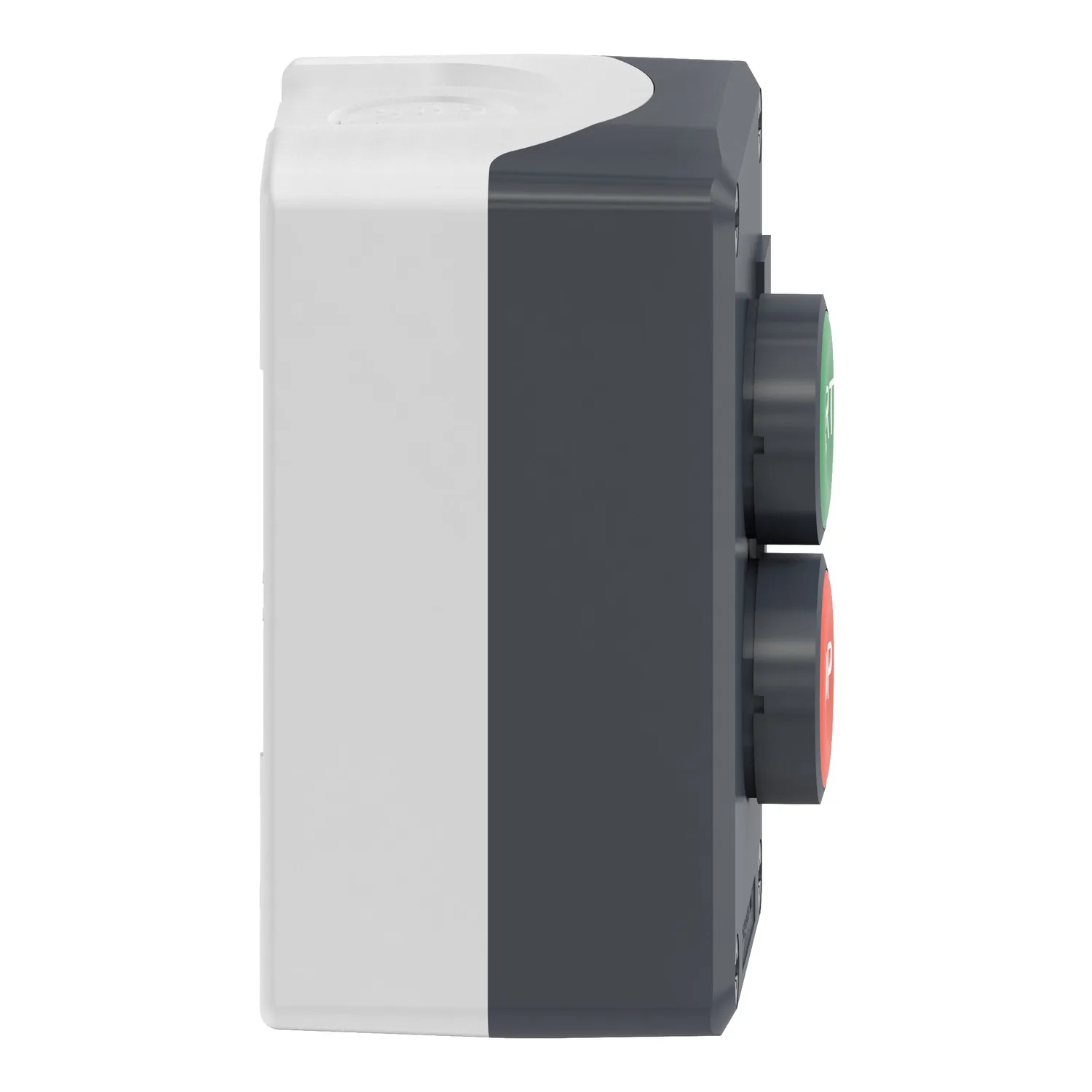

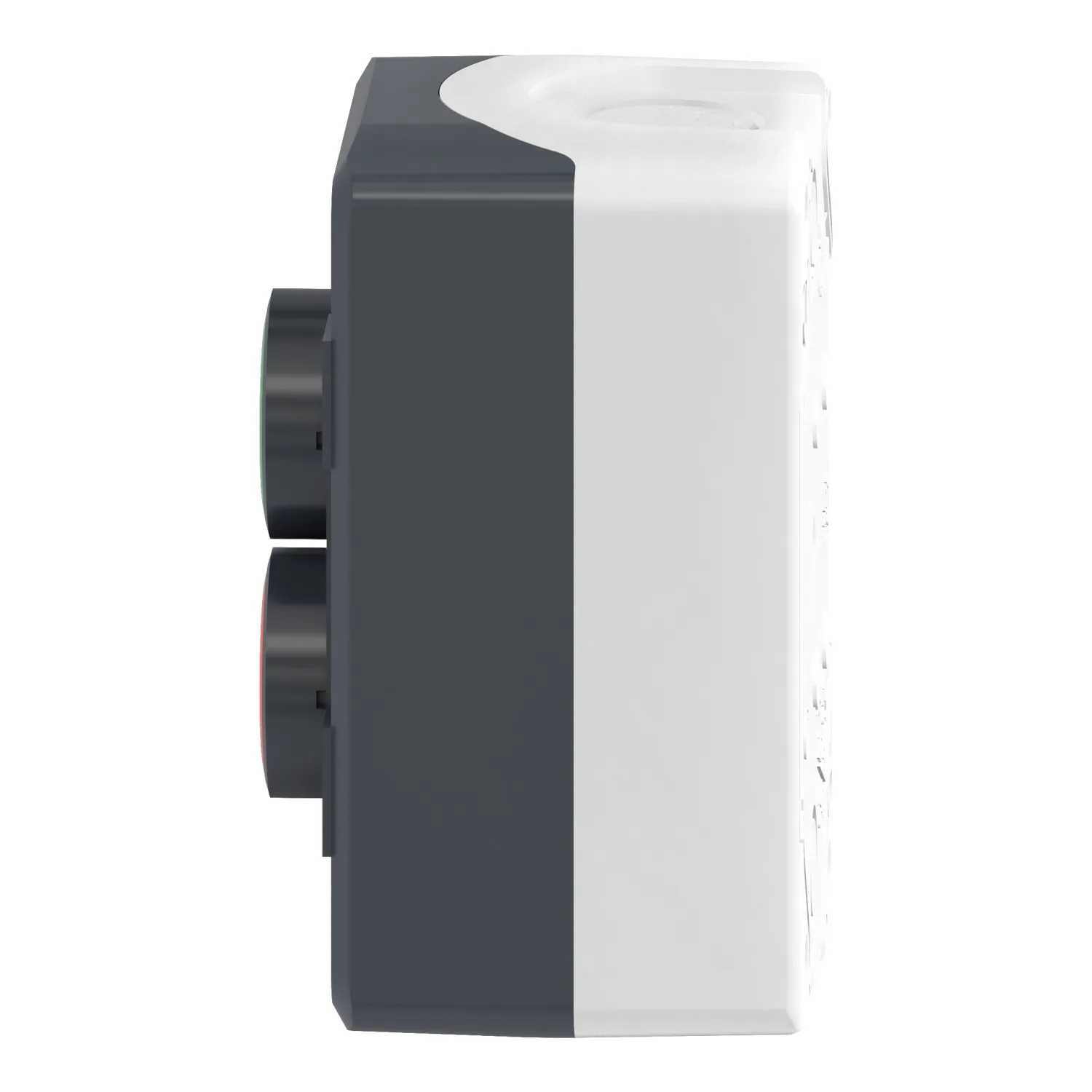

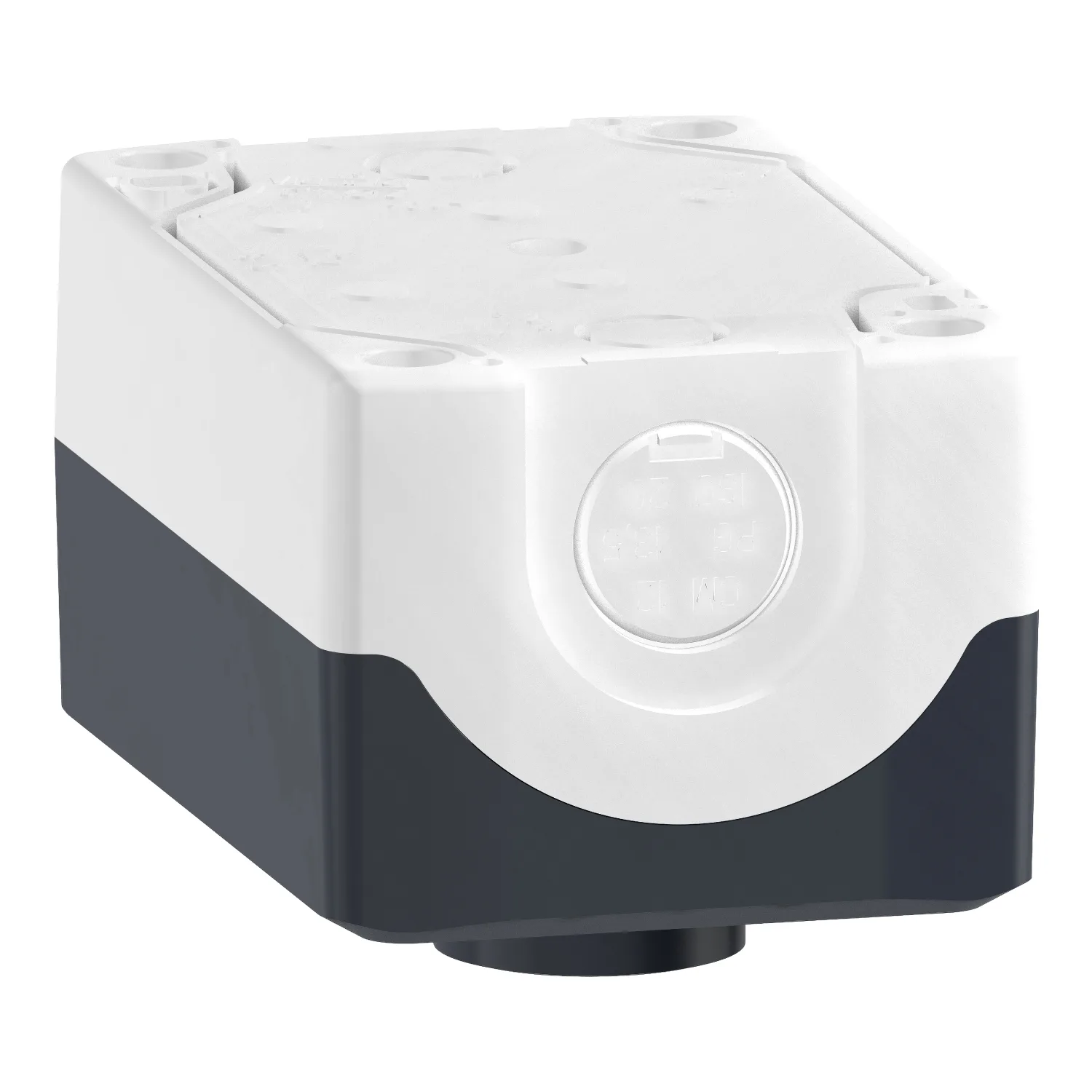

Control cassette; 22mm; Harmony XB5; No.of butt: 2; flat; IP66
Schneider XALD215, Control cassette; 22mm; Harmony XB5; No.of butt: 2; flat; IP66. Category: Harmony XALD, XALK. In stock.
- Reference:XALD215
- Manufacturer / Brand:Schneider
- Availability:In stock (10 pcs) ✅
- Price:48.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony XALD
- Product Or Component Type
- Complete control station
- Device Short Name
- XALD
- Product Destination
- For XB5 Ø 22 mm control and signalling units
Product Description
This Harmony XALD dark grey control station is ideal to control start and stop operations in machines. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It is also resistant to chemicals and offers double insulation.
Key Features
- "Full compatibility with the Ø 22 mm plastic push buttons, switches and pilot lights of the Harmony XB5 range"
- "Complete, ready-to-install stations with 1 to 3 buttons for the most common functions"
- "Modular system and simple to cable universal range"
- "Possibility to add up to 3 NO or NC contact blocks per operating head"
- "Polycarbonate pre-drilled control stations"
Technical Specifications
Main13
| Range Of Product | Harmony XALD |
|---|---|
| Product Or Component Type | Complete control station |
| Device Short Name | XALD |
| Product Destination | For XB5 Ø 22 mm control and signalling units |
| Control Station Application | Start-Stop function |
| Colour Of Base Of Enclosure | Light grey (RAL 7035) |
| Colour Of Cover | Dark grey (RAL 7016) |
| Material | Polycarbonate |
| Operator Profile | 2 flush push-buttons |

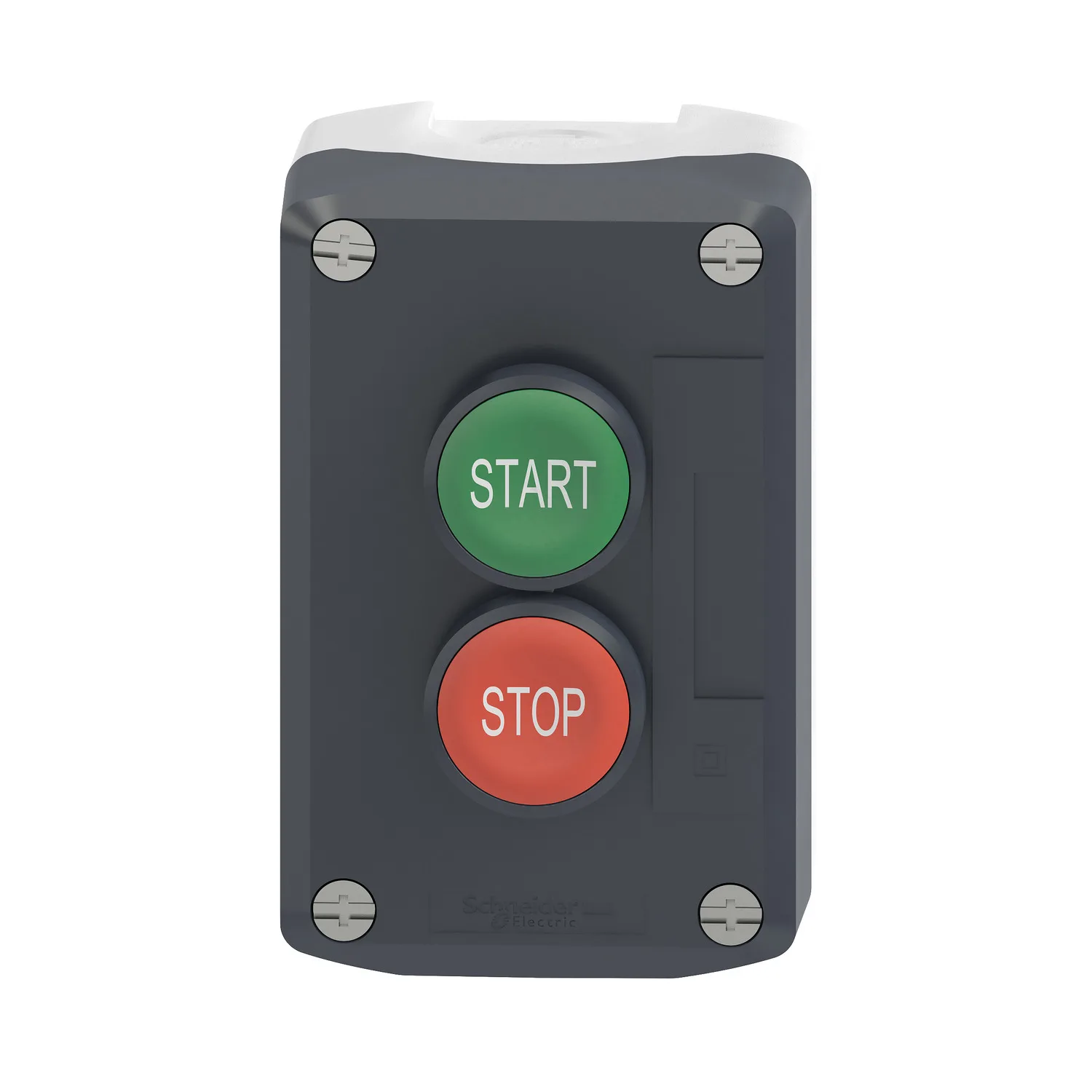

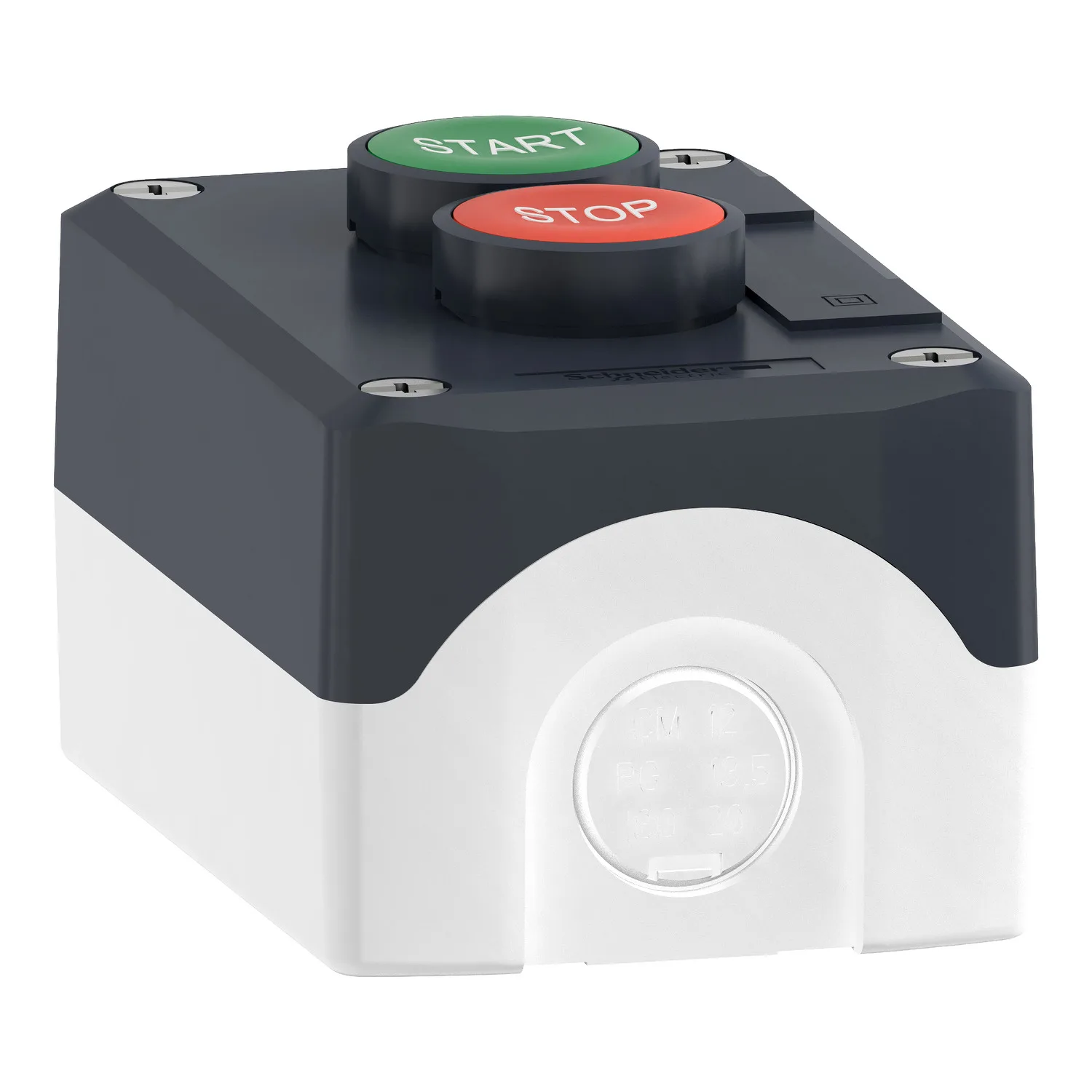

| Operators Description | Green ''START'' 1 NO - red ''STOP'' 1 NC |
| Control Station Composition | 1 flush push-button, green 1 NO START marking; 1 flush push-button, red 1 NC STOP marking |
| Marking Location | Marking on push-button |
| Contact Operation | Slow-break |
Complementary35
| AC Control Voltage 50 HZ | 120…600 V |
|---|---|
| Cable Entry | 2 knock-outs for cable entry, clamping capacity: 14 mm; 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm |
| AC Control Voltage 60 HZ | 120…600 V |
| Net Weight | 0.233 kg |
| DC Control Voltage | 125…600 V |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Number Of Command Positions | 2 |
| Number Of Indicator Lights | 0 |
| Colour Of Marking | White marking when green, red or black caps; Black marking when white caps |
| Number Of Push Buttons | 2 |
| Positive Opening | With conforming to IEC 60947-5-1 appendix K |
| Operating Travel | 1.5 mm (NC changing electrical state); 2.6 mm (NO changing electrical state); 4.3 mm (total travel) |
| Operating Force | 3.5 N NC changing electrical state; 3.8 N NO changing electrical state |
| Mechanical Durability | 10000000 cycles |
| Number Of Selector Switches | 0 |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Tightening Torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Number Of Key Switches | 0 |
| Shape Of Screw Head | Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts Material | Silver alloy (Ag/Ni) |
| Short-circuit Protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] Conventional Free Air Thermal Current | 10 A conforming to IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| Number Of Mushroom-shaped Push-buttons | 0 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] Rated Operational Current | 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1; 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A at 110 |
| Electrical Reliability | Λ < 10exp(-6) at 5 V, 1 mA conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V, 5 mA conforming to IEC 60947-5-4 |
| Emergency Power Off | No |
| Number Of Contacts As Normally Closed Contact | 1 |
| Number Of Contacts As Normally Open Contact | 1 |
| Number Of Contacts As Change-over Contact | 0 |
| Housing Material | Plastic |
| Housing Colour | Grey |
| Colour Of Cover | Dark grey |
Environment10
| Protective Treatment | TH |
|---|---|
| Ambient Air Temperature For Storage | -40…70 °C |
| Ambient Air Temperature For Operation | -40…70 °C |
| Overvoltage Category | Class II conforming to IEC 60536 |
| IP Degree Of Protection | IP66 conforming to IEC 60529; IP67; IP69; IP69K |
| NEMA Degree Of Protection | NEMA 13; NEMA 4X |
| IK Degree Of Protection | IK03 conforming to IEC 62262 |
| Standards | IEC 60947-5-5; IEC 60947-5-4; IEC 60947-1; CSA C22.2 No 14; UL 508; IEC 60947-5-1; JIS C8201-5-1; JIS C8201-1 |
| Vibration Resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 9.800 cm |
| Package 1 Width | 7.000 cm |
| Package 1 Length | 11.000 cm |
| Package 1 Weight | 224.000 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 25 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 6.106 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
