control station XAL-E - green pushbutton 1 NO + red pushbutton 1 NC
Not for sale

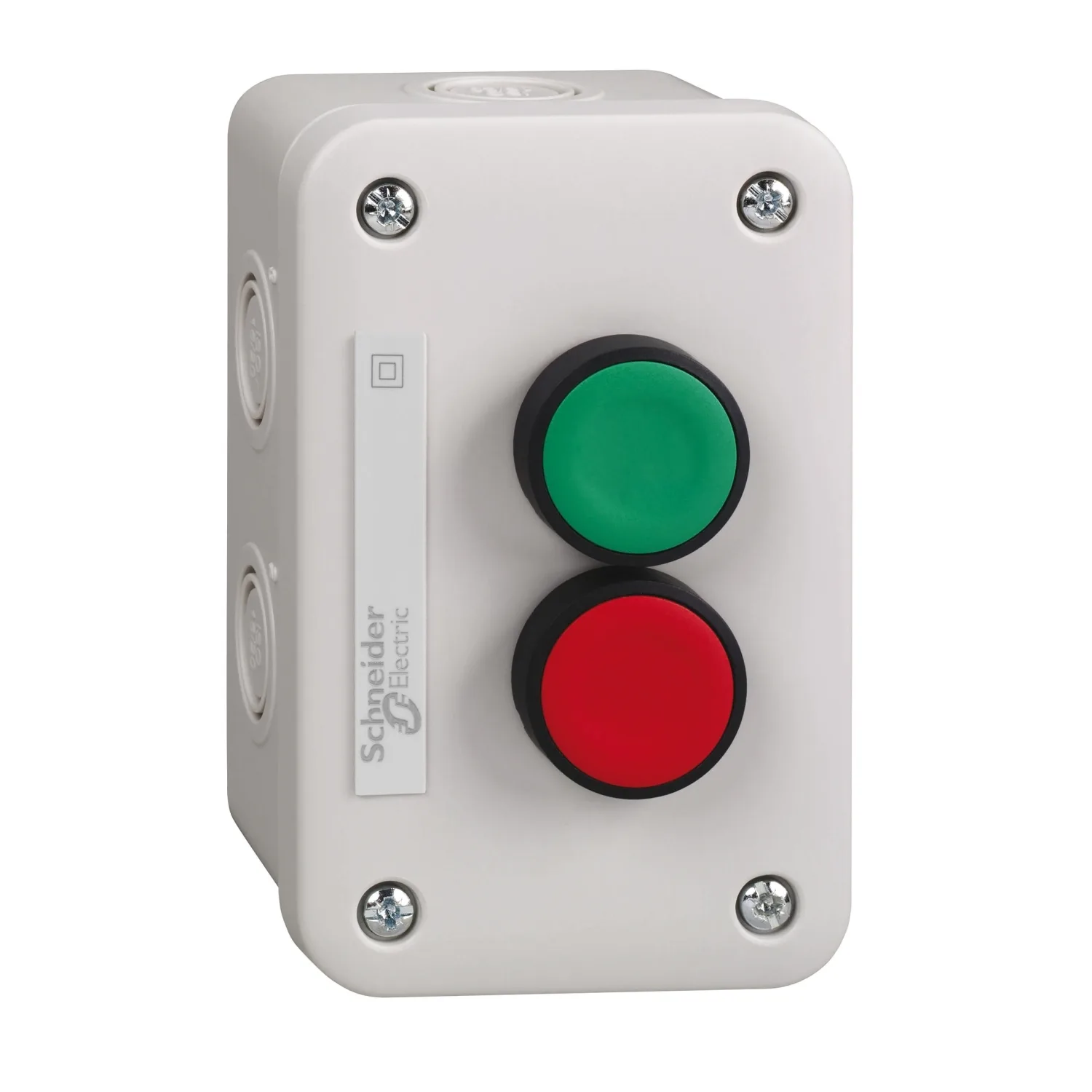

Schneider XALE2011, control station XAL-E - green pushbutton 1 NO + red pushbutton 1 NC. Category: Harmony XALE. Not for sale; no price or quote is offered for this product.
- Reference:XALE2011
- Manufacturer / Brand:Schneider
Key Specifications
- Range Of Product
- Harmony XALE
- Product Or Component Type
- Complete control station
- Device Short Name
- XALE
- Product Destination
- For XB7 Ø 22 mm control and signalling units
Product Description
This Harmony XALE2011 is a control station with green push button 1 NO + red push button 1 NC . It is part of the range Harmony XB7 diameter 22mm monolithic plastic push buttons and pilot lights.
Technical Specifications
Main11
| Range Of Product | Harmony XALE |
|---|---|
| Product Or Component Type | Complete control station |
| Device Short Name | XALE |
| Product Destination | For XB7 Ø 22 mm control and signalling units |
| Control Station Application | Two functions |
| Colour Of Base Of Enclosure | Light grey (RAL 7035) |
| Colour Of Cover | Light grey (RAL 7035) |
| Material | ABS (acrylonitrile butadiene-styrene) |
| IP Degree Of Protection | IP54 conforming to IEC 60529 |
| Control Station Composition | 1 flush push-button, green, spring return 1 NO; 1 flush push-button, red, spring return 1 NC |
| Contact Operation | Slow-break |
Complementary18
| Cable Entry | 2 knock-outs, clamping capacity: 20 mm; 6 knock-outs for ISO M20 |
|---|---|
| Net Weight | 0.145 kg |
| Marking | CE |
| Number Of Command Positions | 2 |
| Number Of Indicator Lights | 0 |
| Positive Opening | With conforming to EN/IEC 60947-5-1 appendix K |
| Number Of Push Buttons | 2 |
| Number Of Selector Switches | 0 |
| Short-circuit Protection | 4 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| Number Of Key Switches | 0 |
| [Ui] Rated Insulation Voltage | 250 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV conforming to EN/IEC 60947-1 |
| [Ie] Rated Operational Current | 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1; 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1; 0.3 A at 240 V, AC-14, D300 conforming to EN/IEC 60947-5-1; 0.6 A at 120 V, AC-14, D300 conforming to EN/IEC 60947-5-1 |
| Electrical Reliability | Λ <= 10exp(-6) at 17 V and 5 mA conforming to IEC 60947-5-4 |
| Number Of Mushroom-shaped Push-buttons | 0 |
| Number Of Contacts As Normally Closed Contact | 1 |
| Number Of Contacts As Normally Open Contact | 1 |
| Number Of Contacts As Change-over Contact | 0 |
Environment6
| Protective Treatment | TC |
|---|---|
| Ambient Air Temperature For Storage | -40…70 °C |
| Ambient Air Temperature For Operation | -25…55 °C |
| Electrical Shock Protection Class | Class II conforming to IEC 60536 |
| IK Degree Of Protection | IK05 conforming to EN 50102 |
| Standards | EN/IEC 60947-5-1; EN/IEC 62208; EN/IEC 60947-1; EN/IEC 60947-5-5 |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
