Schneider

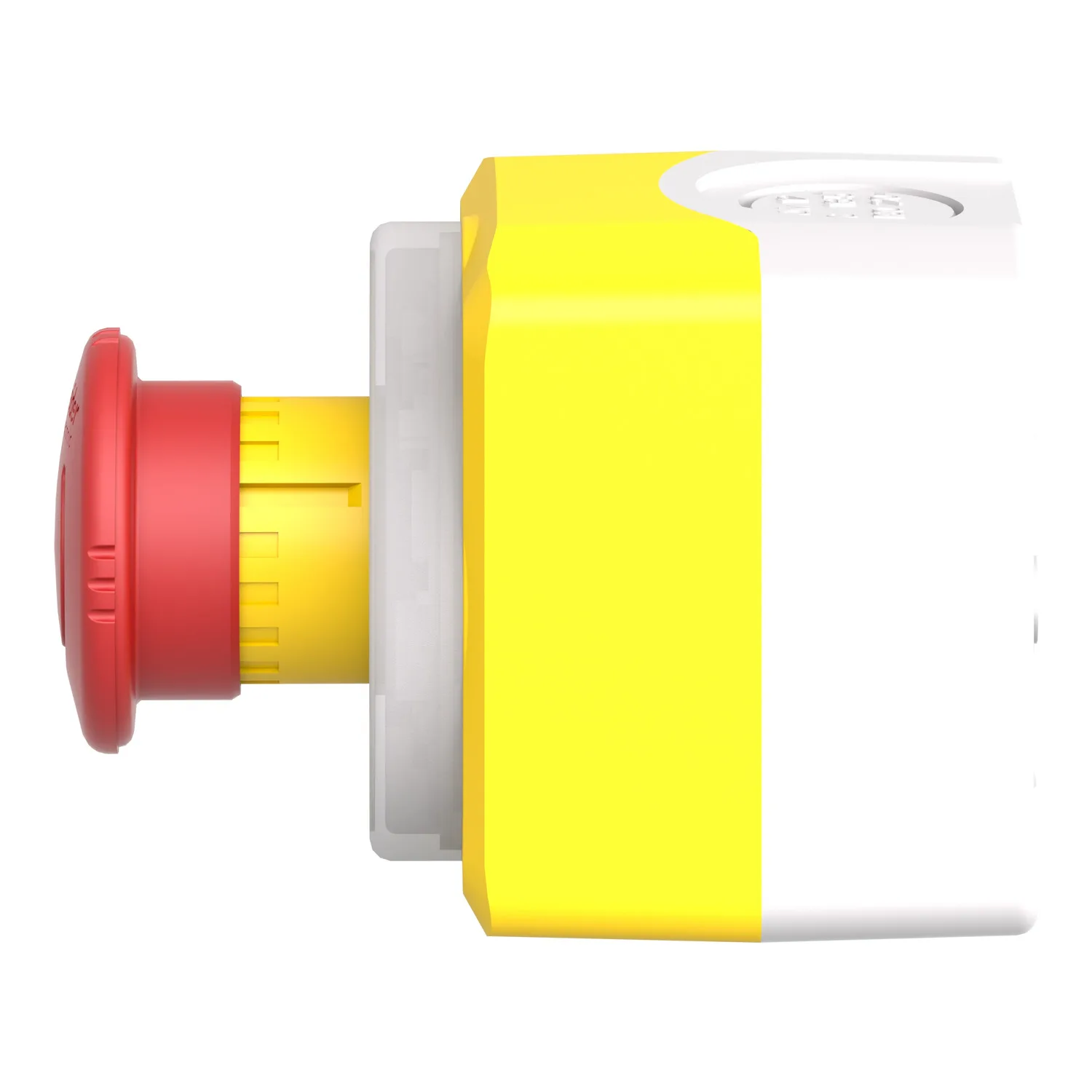

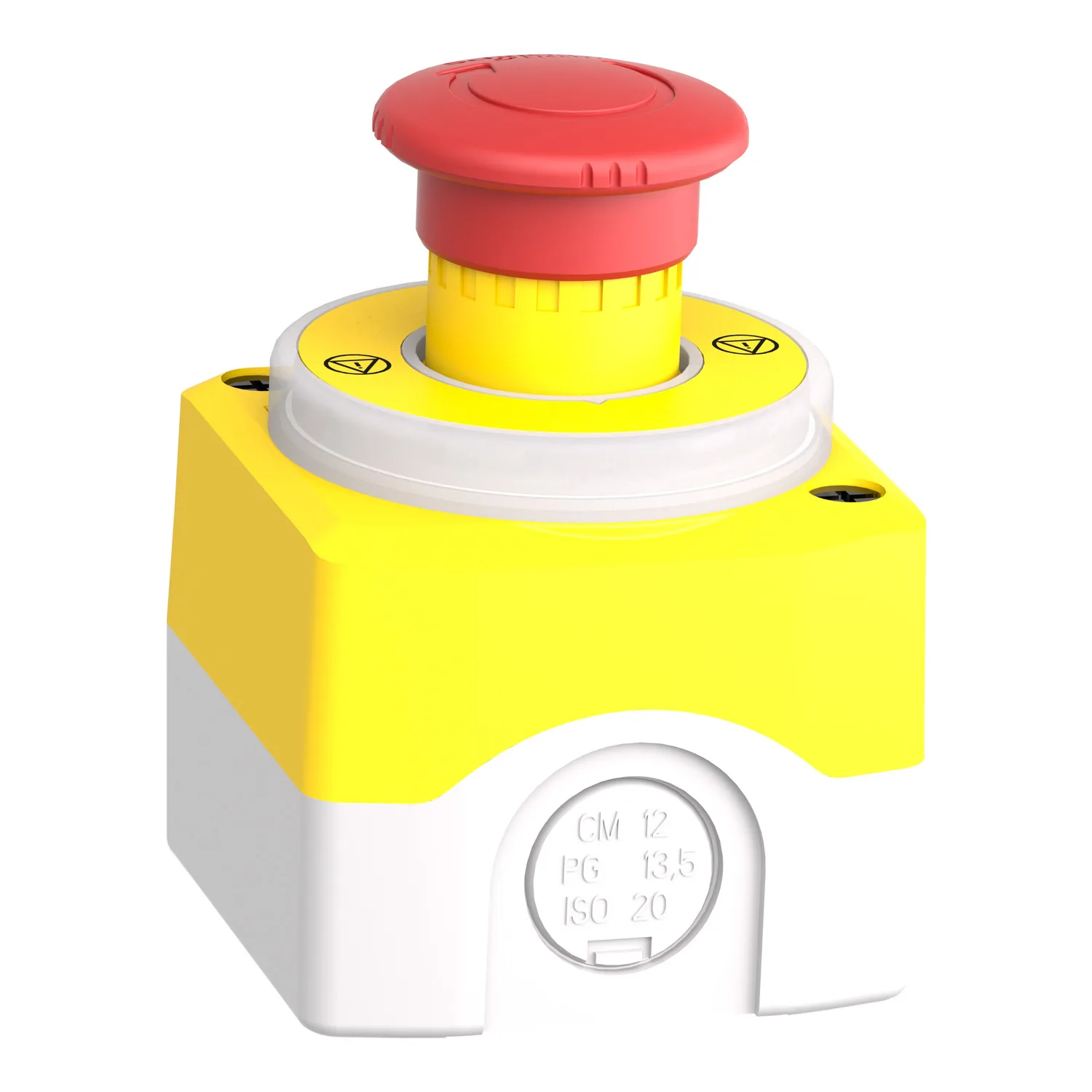

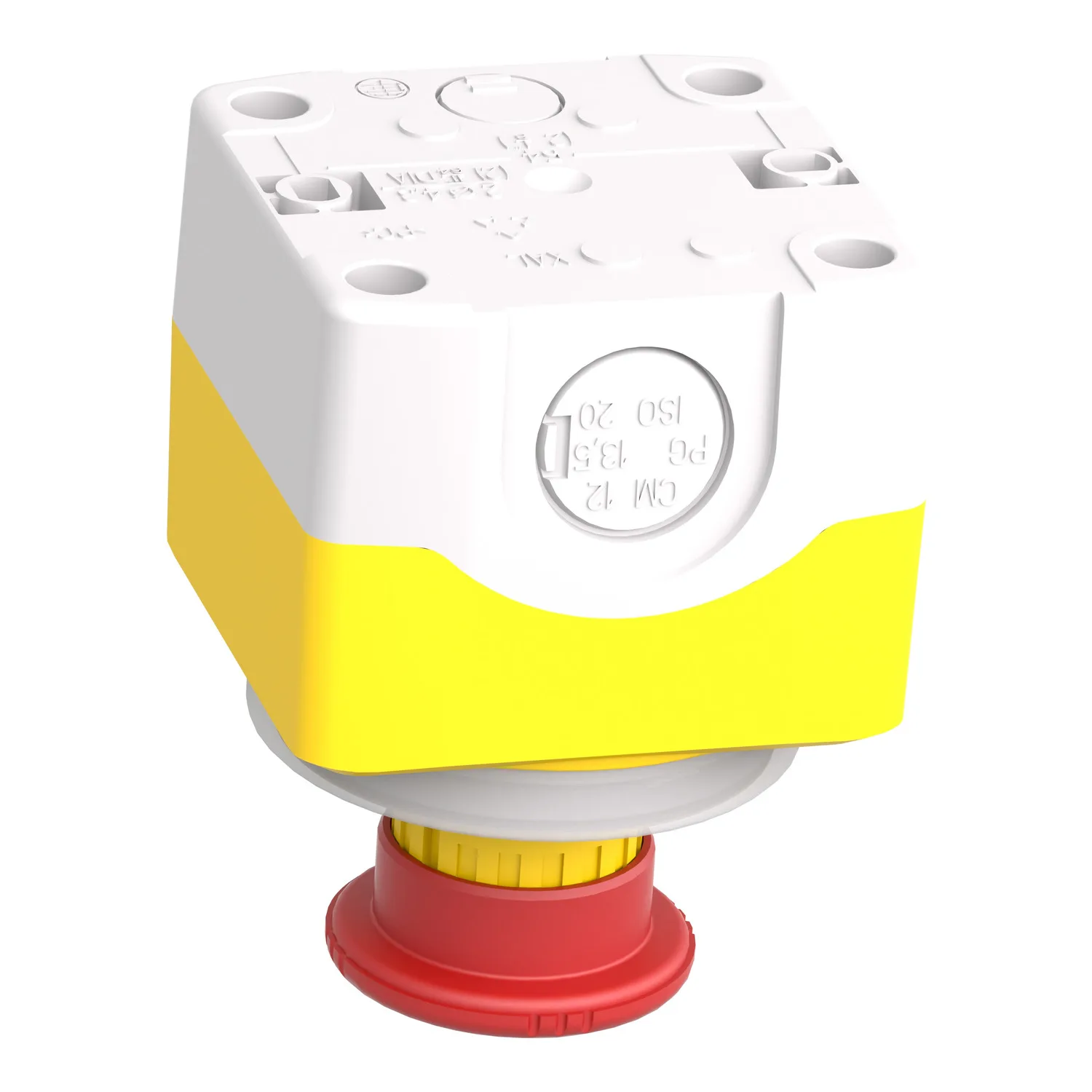

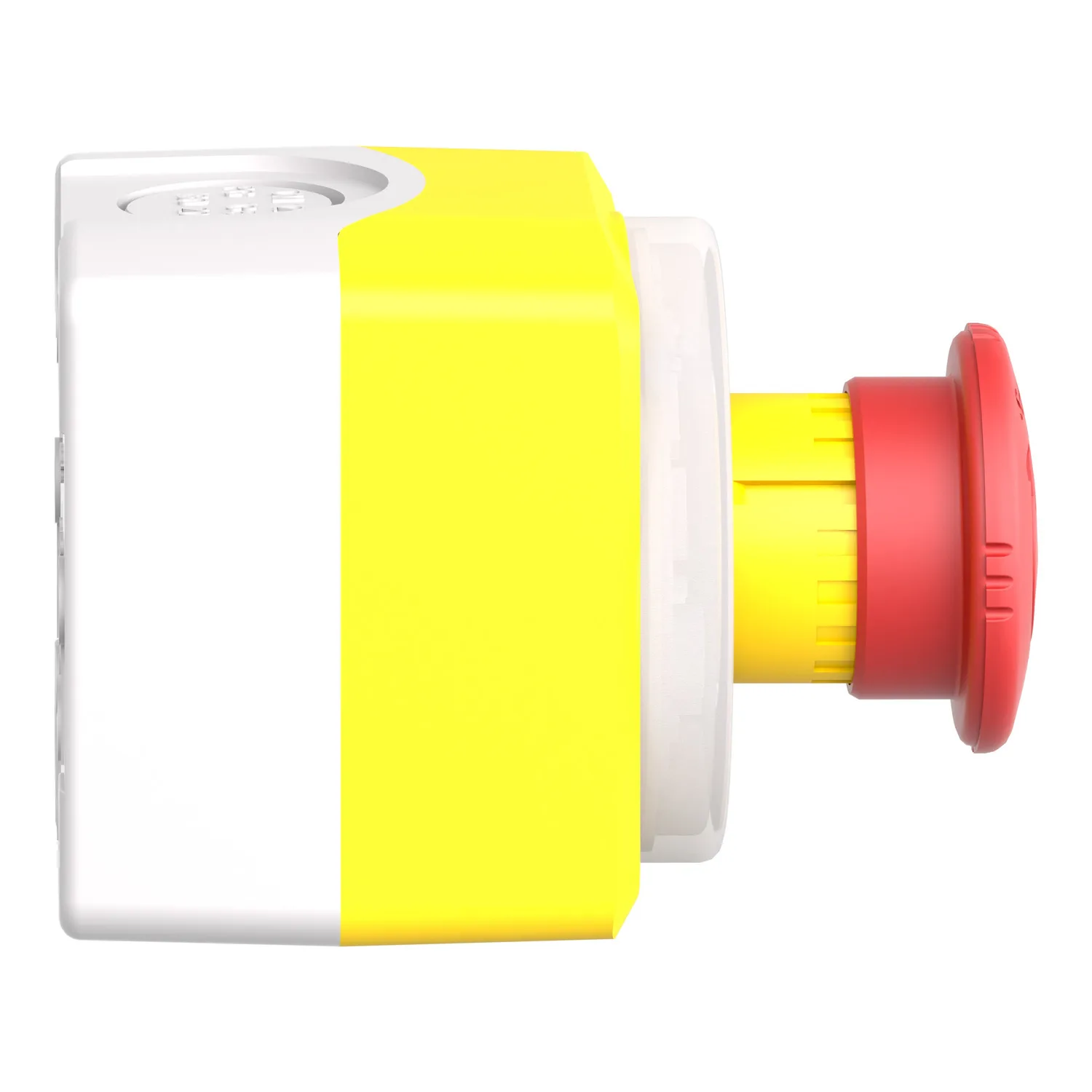

XALK178W3B140E - Illuminated ring, twist, pull 24V AC/DC
Schneider XALK178W3B140E, Illuminated ring, twist, pull 24V AC/DC. Category: Harmony XALD, XALK. Request a quote for price and lead time.
- Reference:XALK178W3B140E
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:170.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony XALK
- Product Or Component Type
- Complete control station
- Device Short Name
- XALK
- Product Destination
- For XB5 Ø 22 mm control and signalling units
Product Description
This control station with mushroom head push-button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is clearly distinguishable thanks to clear colors. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.
Key Features
- "Full compatibility with the Ø 22 mm plastic push buttons, switches and pilot lights of the Harmony XB5 range"
- "Complete, ready-to-install stations with 1 to 3 buttons for the most common functions"
- "Modular system and simple to cable universal range"
- "Possibility to add up to 3 NO or NC contact blocks per operating head"
- "Polycarbonate pre-drilled control stations"
Technical Specifications
Main13
| Range Of Product | Harmony XALK |
|---|---|
| Product Or Component Type | Complete control station |
| Device Short Name | XALK |
| Product Destination | For XB5 Ø 22 mm control and signalling units |
| Control Station Application | Emergency switching off function; Emergency stop function |
| Colour Of Base Of Enclosure | Light grey (RAL 7035) |
| Colour Of Cover | Yellow (RAL 1021) |
| Material | Polycarbonate |
| Operator Profile | 1 mushroom head push-button |
| Operators Description | Red unmarked 1 NO + 1 NC |
| Reset | Turn to release |

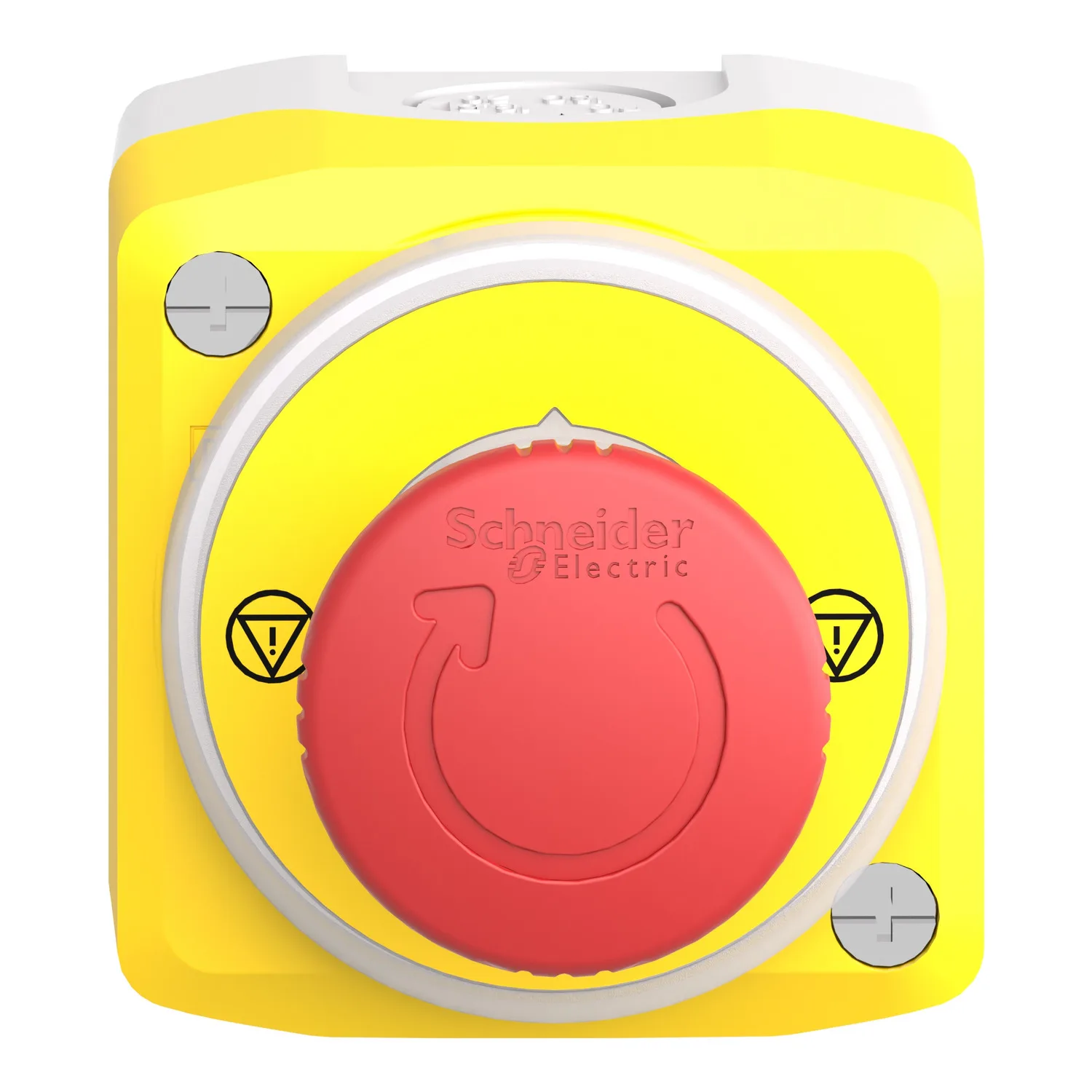

| Control Station Composition | 1 mushroom head Ø 40 mm push-button, red 1 NO + 1 NC |
| Contact Operation | Slow-break |
Complementary36
| AC Control Voltage 50 HZ | 24 V |
|---|---|

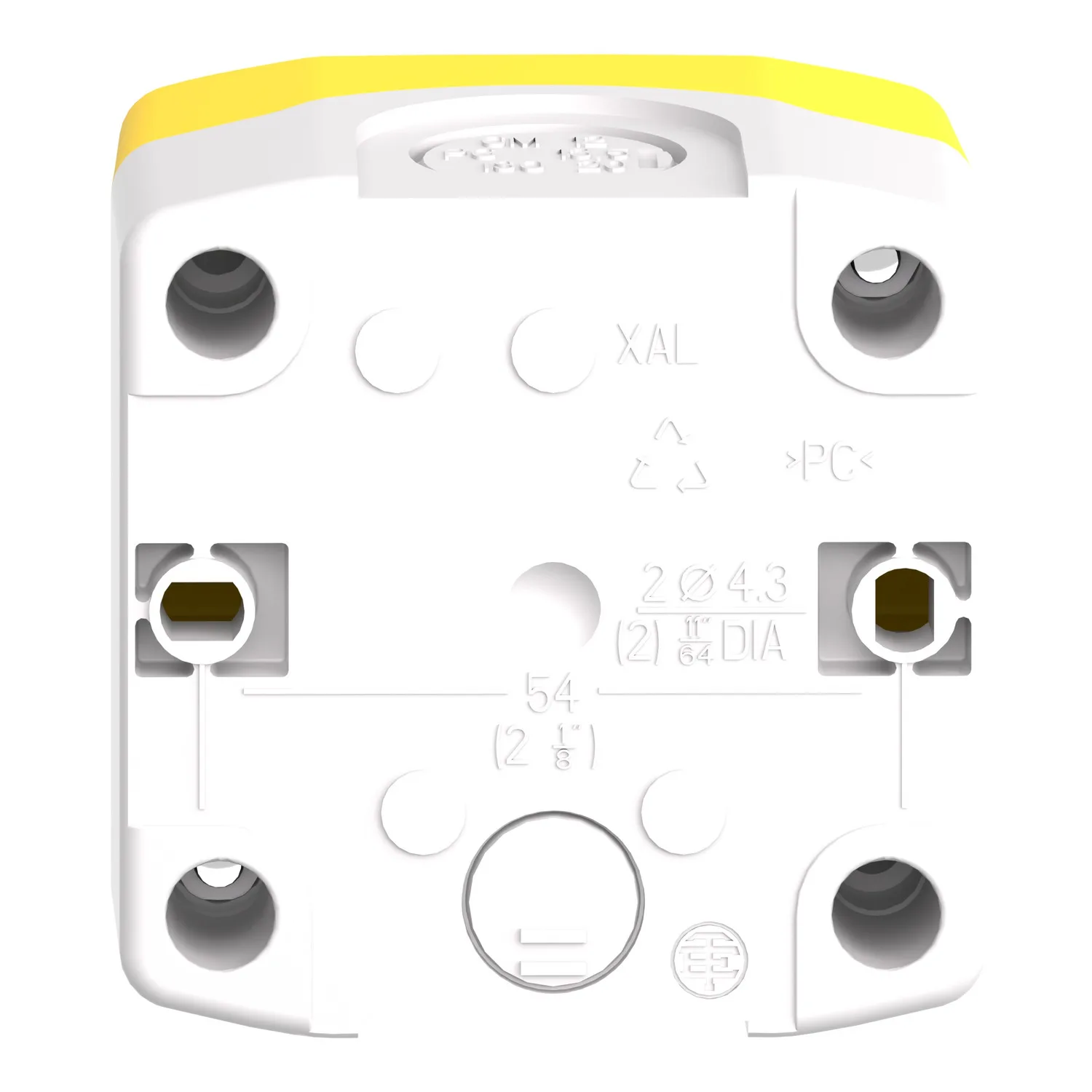

| Cable Entry | 1 knock-out for cable entry 0…14 mm; 2 knock-outs for Pg 13 cable gland and ISO M20 0…12 mm |
| AC Control Voltage 60 HZ | 24 V |
| Net Weight | 0.180 kg |
| DC Control Voltage | 24 V |
| Electrical Insulation Class | Class II conforming to IEC 61140 |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Number Of Command Positions | 1 |
| Number Of Indicator Lights | 0 |
| Number Of Push Buttons | 0 |
| Positive Opening | With conforming to IEC 60947-5-1 appendix K |
| Operating Travel | 1.5 mm (NC changing electrical state); 4.3 mm (total travel) |
| Operating Force | 44 N |
| Number Of Selector Switches | 0 |
| Mechanical Durability | 300000 cycles |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Number Of Key Switches | 0 |
| Tightening Torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape Of Screw Head | Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts Material | Silver alloy (Ag/Ni) |
| Short-circuit Protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] Conventional Free Air Thermal Current | 10 A conforming to IEC 60947-5-1 |
| Number Of Mushroom-shaped Push-buttons | 1 |
| [Ui] Rated Insulation Voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| Resistance To Electrostatic Discharge | 4 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] Rated Operational Current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1; 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A at 110 |
| Emergency Power Off | No |
| Electrical Reliability | Λ < 10exp(-6) at 5 V, 1 mA conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V, 5 mA conforming to IEC 60947-5-4 |
| Number Of Contacts As Normally Closed Contact | 1 |
| Number Of Contacts As Normally Open Contact | 1 |
| Number Of Contacts As Change-over Contact | 0 |
| Housing Material | Plastic |
| Housing Colour | Yellow |
| Colour Of Cover | Yellow |
Environment9
| Protective Treatment | TH |
|---|---|
| Ambient Air Temperature For Storage | -40…70 °C |
| Ambient Air Temperature For Operation | -40…55 °C |
| IP Degree Of Protection | IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653 |
| IK Degree Of Protection | IK05 conforming to IEC 62262 |
| Standards | CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-5-4; UL 508; IEC 60947-1; JIS C 4520 |
| Product Certifications | UL listed; CSA |
| Vibration Resistance | 5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 25 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27 |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 7.000 cm |
| Package 1 Width | 7.000 cm |
| Package 1 Length | 9.800 cm |
| Package 1 Weight | 190.000 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 40 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 7.978 kg |
Logistical informations1
| Country Of Origin | CZ |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
