Schneider

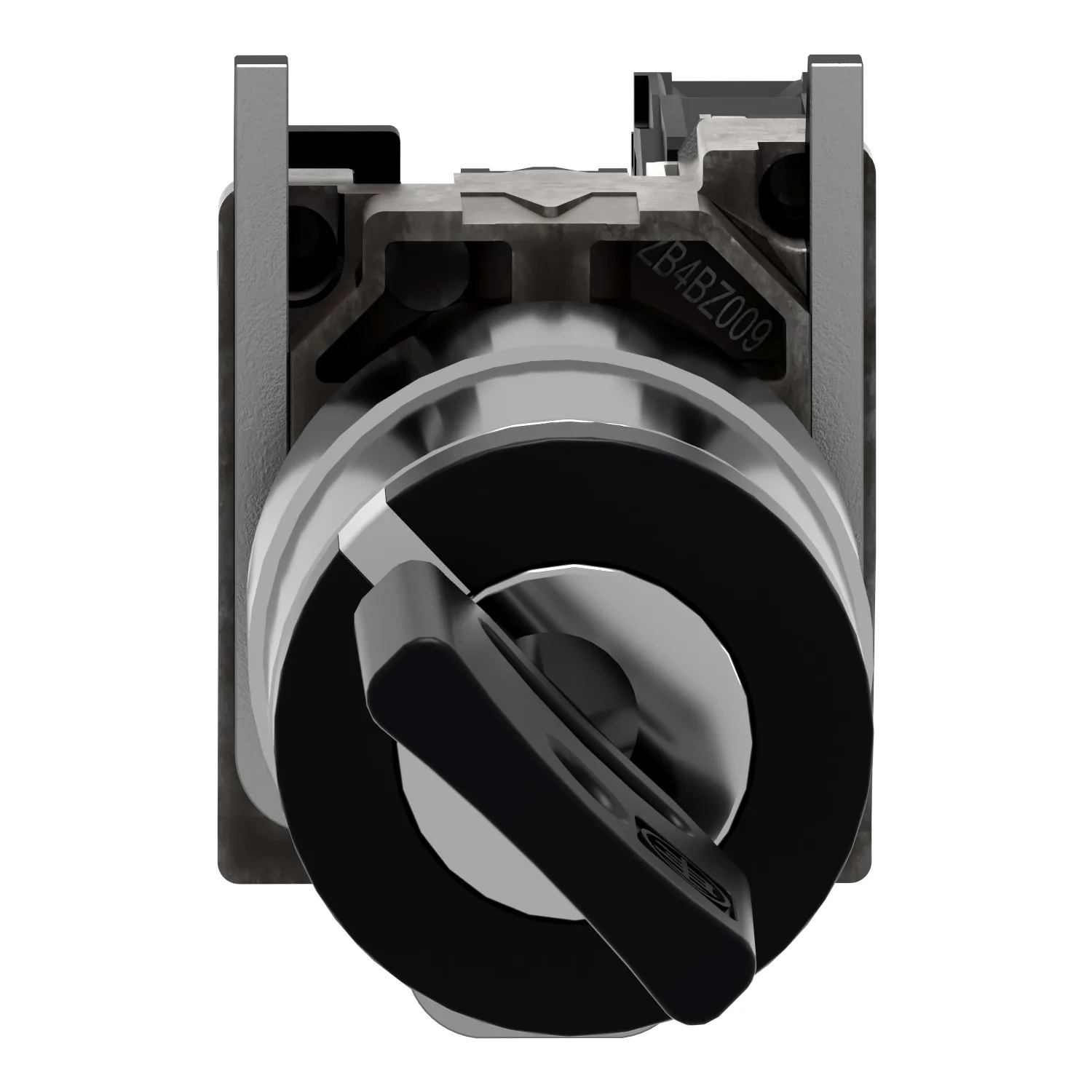

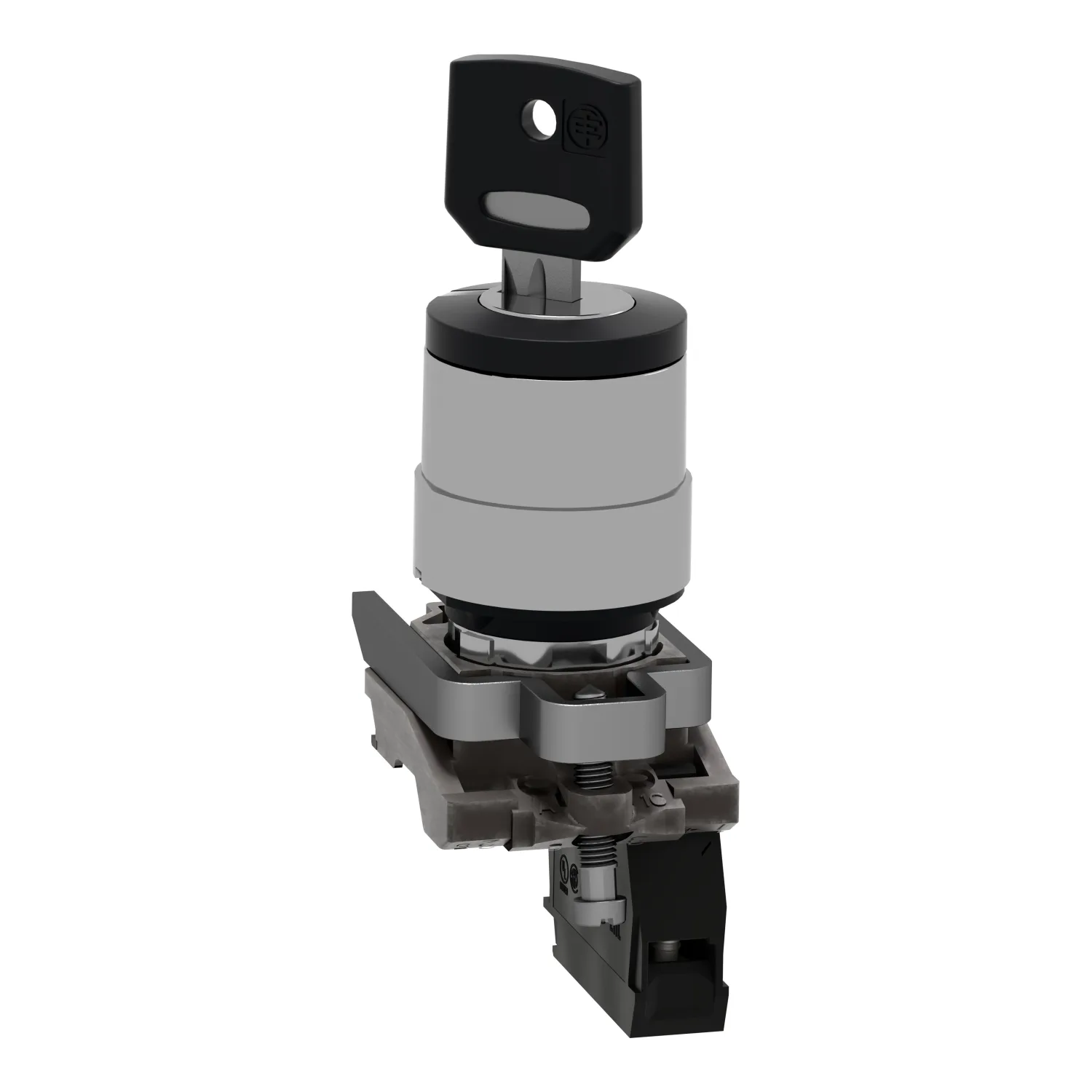

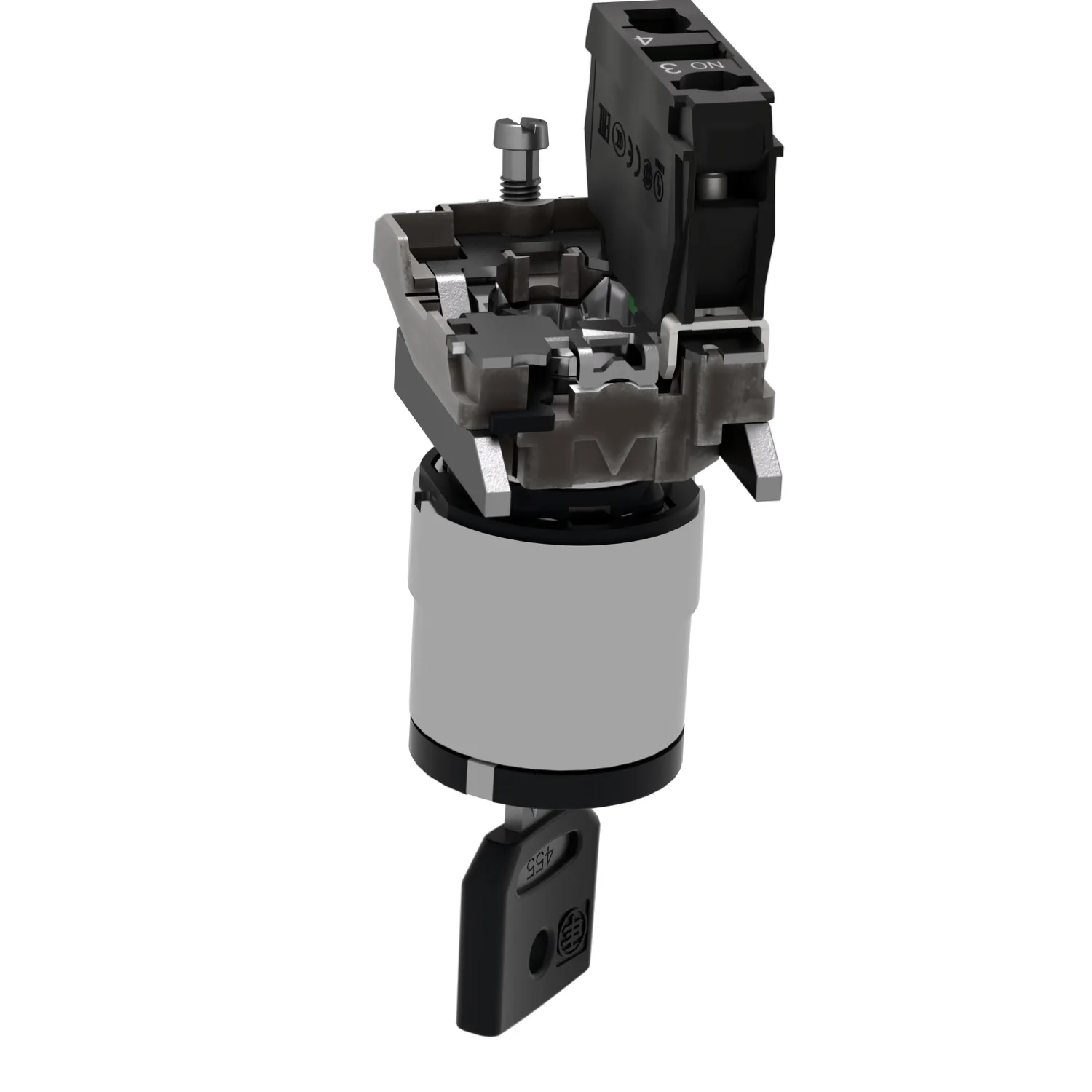

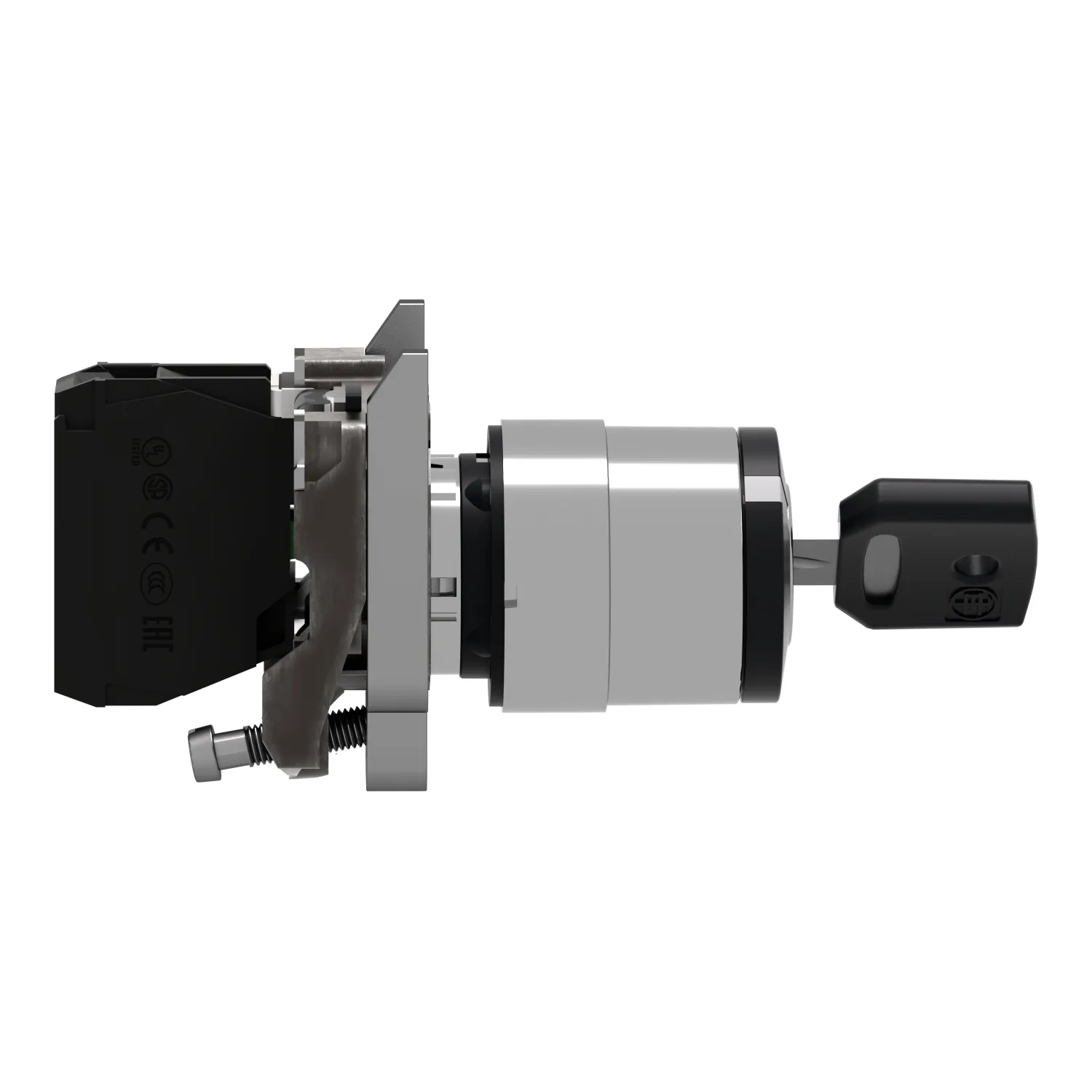

Switch: rotary with key; 22mm; Stabl.pos: 2; NO; black; none; IP66
Schneider XB4BG21, Switch: rotary with key; 22mm; Stabl.pos: 2; NO; black; none; IP66. Category: Harmony XB4. In stock.
- Reference:XB4BG21
- Manufacturer / Brand:Schneider
- Availability:In stock (39 pcs) ✅
- Price:40.40 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony XB4
- Product Or Component Type
- Selector switch
- Device Short Name
- XB4
- Bezel Material
- Chromium plated metal
Product Description
This Harmony XB4 modular black key selector switch (key no.455) has 2 positions, operates with a stay-put mechanism with key withdrawal on the left position. It has a metal bezel. This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Key Features
- "Quick and easy assembly and disassembly"
- "Robustness to withstand harsh environments"
- "Various types of connection: screw clamp, connector, Faston connector or spring terminal"
- "Excellent mechanical connection with operator head"
- "A wide choice of contact blocks for general purposes or specific applications (low current, standard)"
Technical Specifications
Main15
| Range Of Product | Harmony XB4 |
|---|---|
| Product Or Component Type | Selector switch |
| Device Short Name | XB4 |
| Bezel Material | Chromium plated metal |
| Fixing Collar Material | Zamak |
| Mounting Diameter | 22.5 mm |
| Sale Per Indivisible Quantity | 1 |
| Head Type | Standard |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | stay put |
| Operator Profile | key switch |
| Operator Position Information | 2 positions 90° |
| Contacts Type And Composition | 1 NO |
| Contact Operation | Slow-break |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
Complementary23
| Height | 47 mm |
|---|---|
| Width | 30 mm |
| Depth | 86 mm |

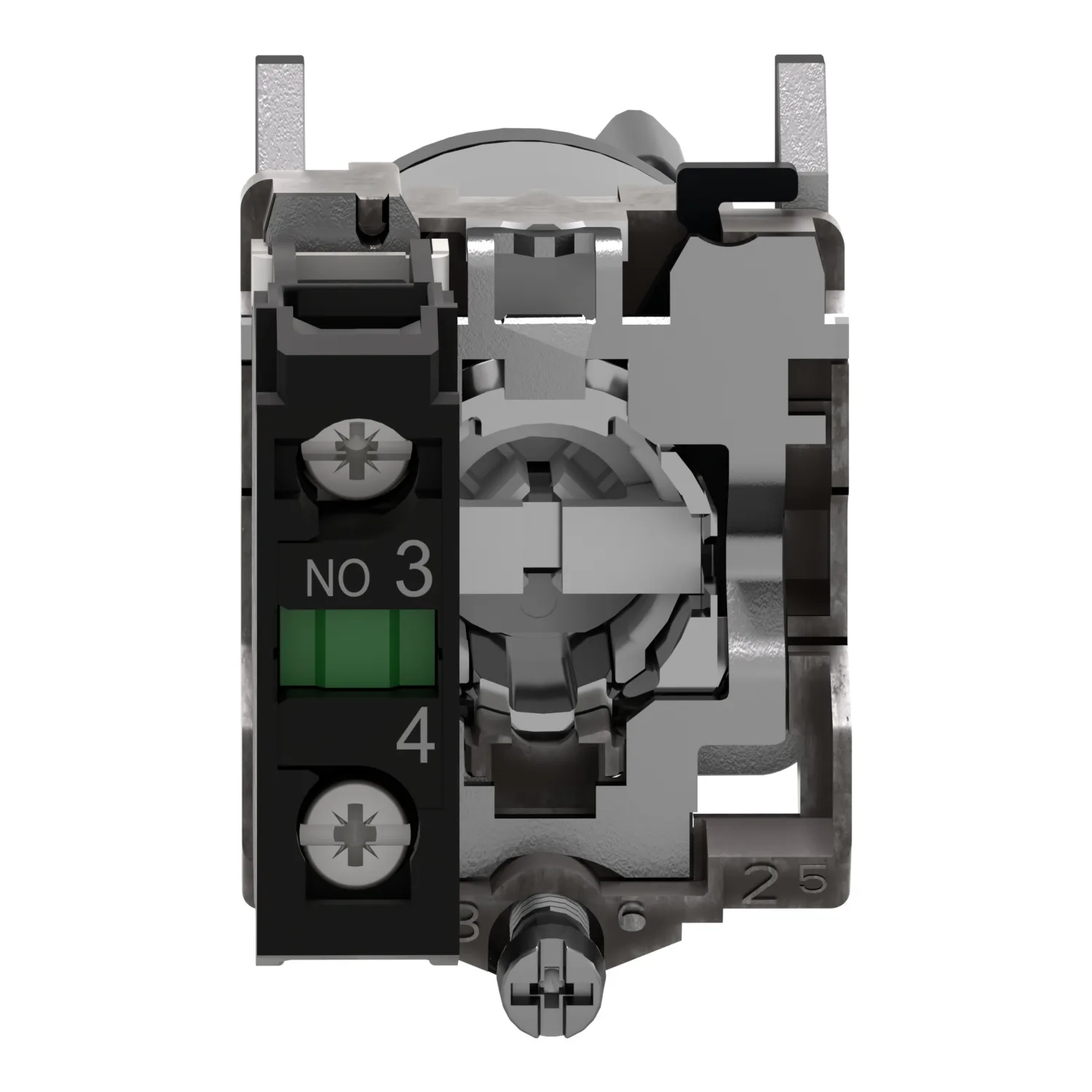

| Terminals Description ISO N°1 | (13-14)NO |
| Net Weight | 0.117 kg |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Type Of Keylock | Key 455 |
| Key Withdrawal Position | Left-hand |
| Contacts Usage | Standard contacts |
| Positive Opening | Without |
| Torque Value | 0.14 N.m NO changing electrical state |
| Mechanical Durability | 1000000 cycles |
| Tightening Torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape Of Screw Head | Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts Material | Silver alloy (Ag/Ni) |
| Short-circuit Protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] Conventional Free Air Thermal Current | 10 A conforming to IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] Rated Operational Current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1; 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A at 110 V, |
| Electrical Reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4 |
| Device Presentation | Complete product |
Environment11
| Protective Treatment | TH |
|---|---|
| Ambient Air Temperature For Storage | -40…70 °C |
| Ambient Air Temperature For Operation | -40…70 °C |
| Overvoltage Category | Class I conforming to IEC 60536 |
| IP Degree Of Protection | IP66 conforming to IEC 60529; IP69; IP69K; IP67 |
| Enclosure Type | UL type 4X/13 |
| IK Degree Of Protection | IK06 with keyhole cover ZBGP conforming to IEC 50102 |
| Standards | JIS C8201-5-1; IEC 60947-5-5; IEC 60947-1; UL 508; IEC 60947-5-4; CSA C22.2 No 14; IEC 60947-5-1; JIS C8201-1 |
| Product Certifications | BV; UL; CSA; DNV; LROS (Lloyds register of shipping) |
| Vibration Resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 3.600 cm |
| Package 1 Width | 5.400 cm |
| Package 1 Length | 9.100 cm |
| Package 1 Weight | 152.000 g |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 50 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 7.853 kg |
| Unit Type Of Package 3 | P06 |
| Number Of Units In Package 3 | 400 |
| Package 3 Height | 45.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 72.824 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
