Schneider
Switch: push-button; 22mm; NC; red; none; 3A/240VAC; 0.55A/125VDC

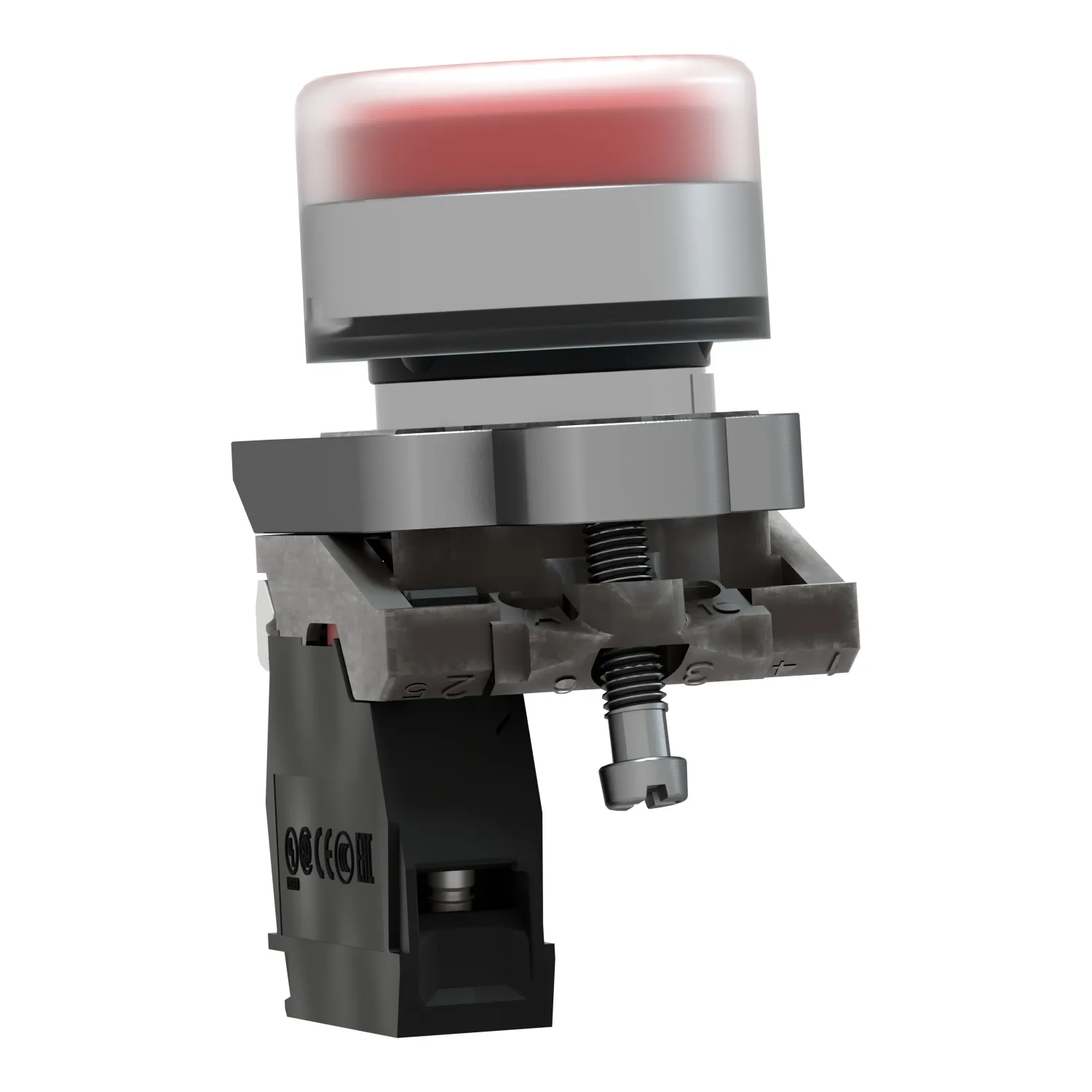

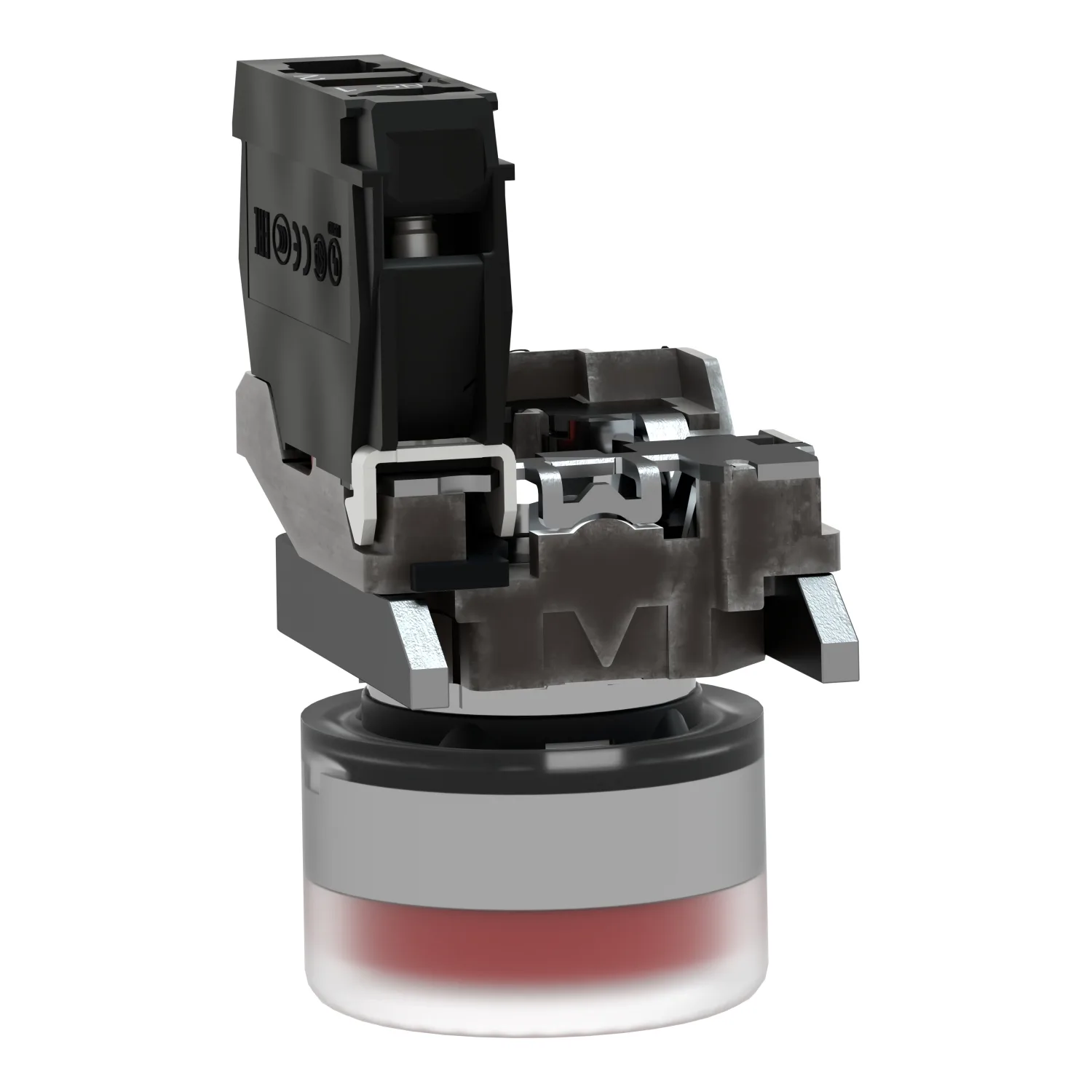

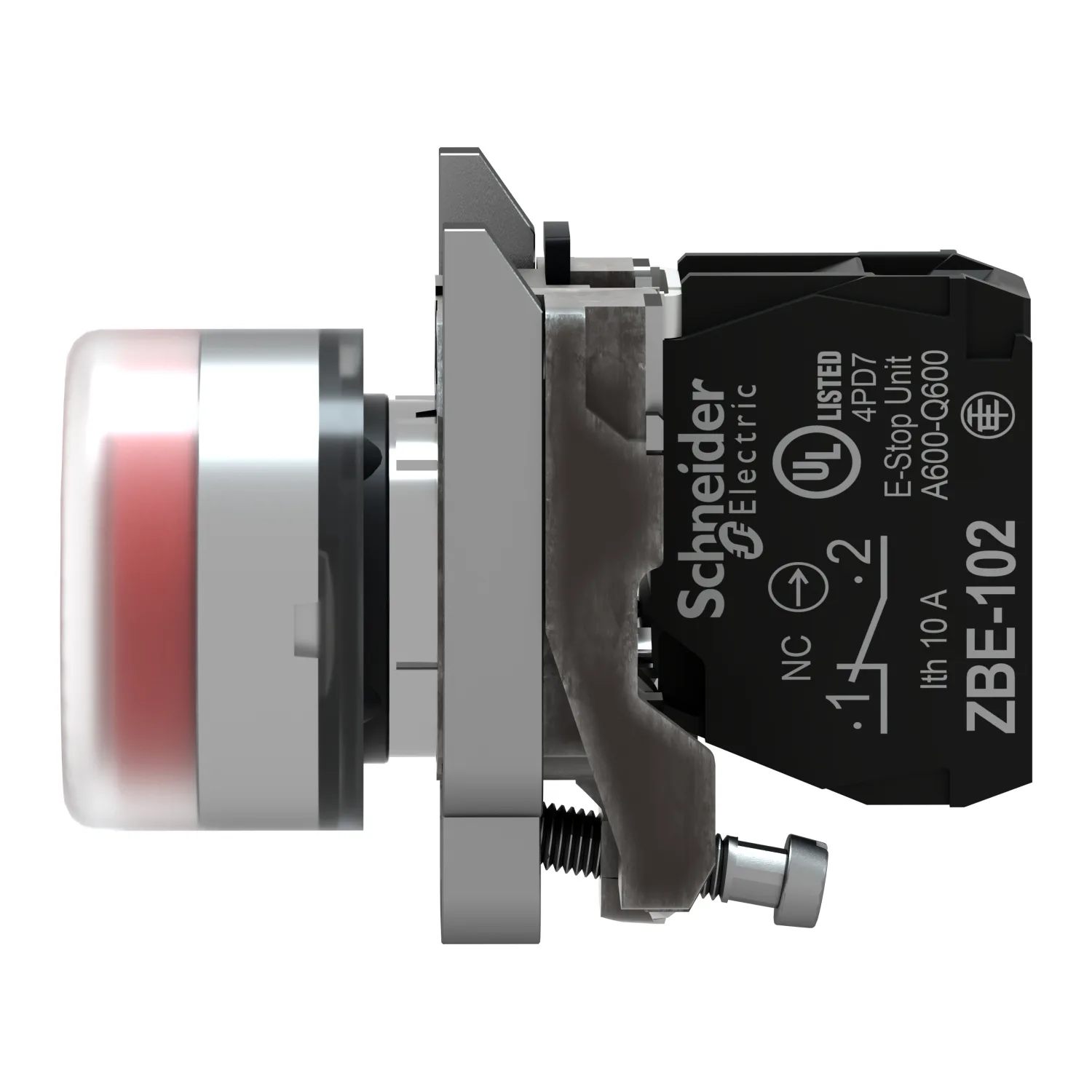

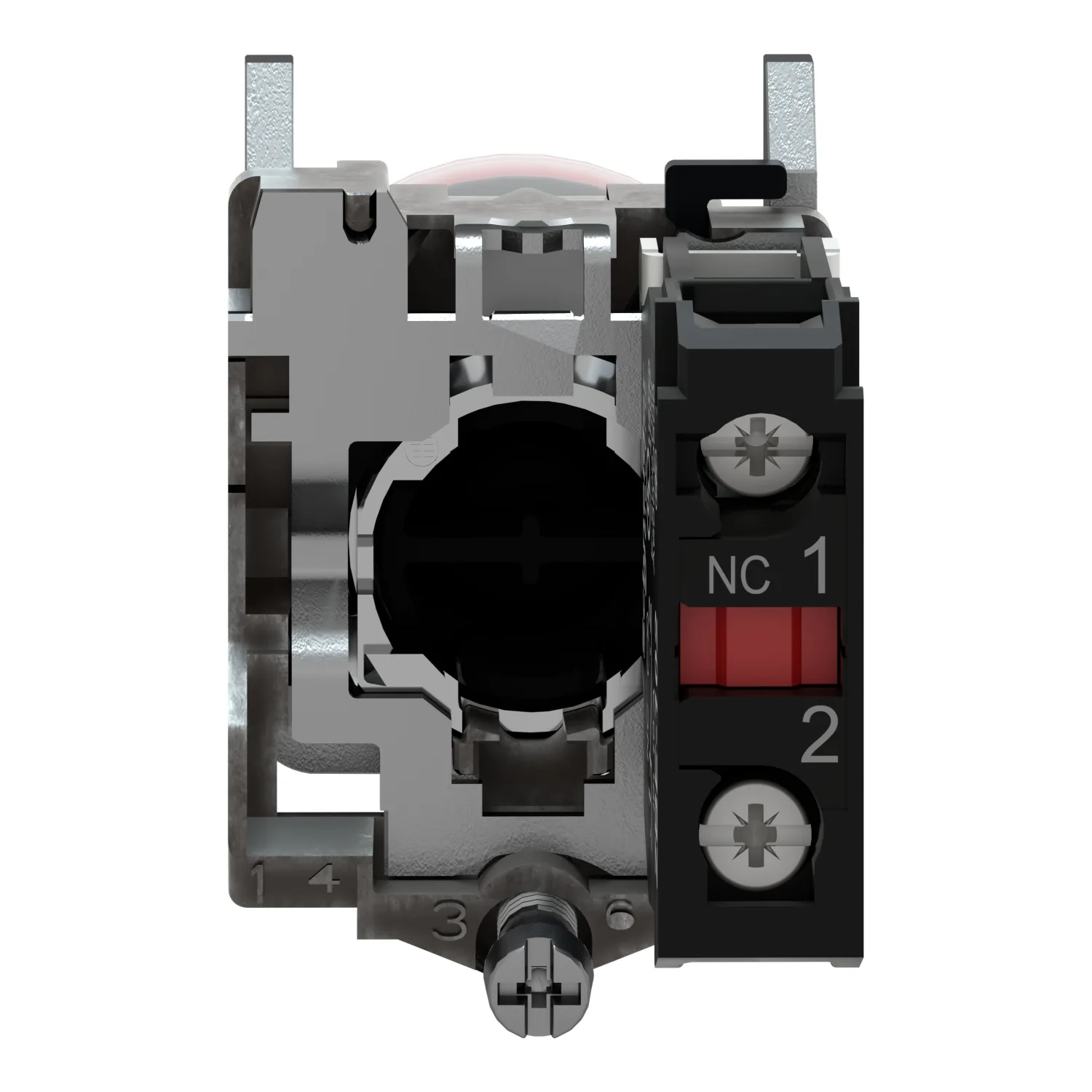

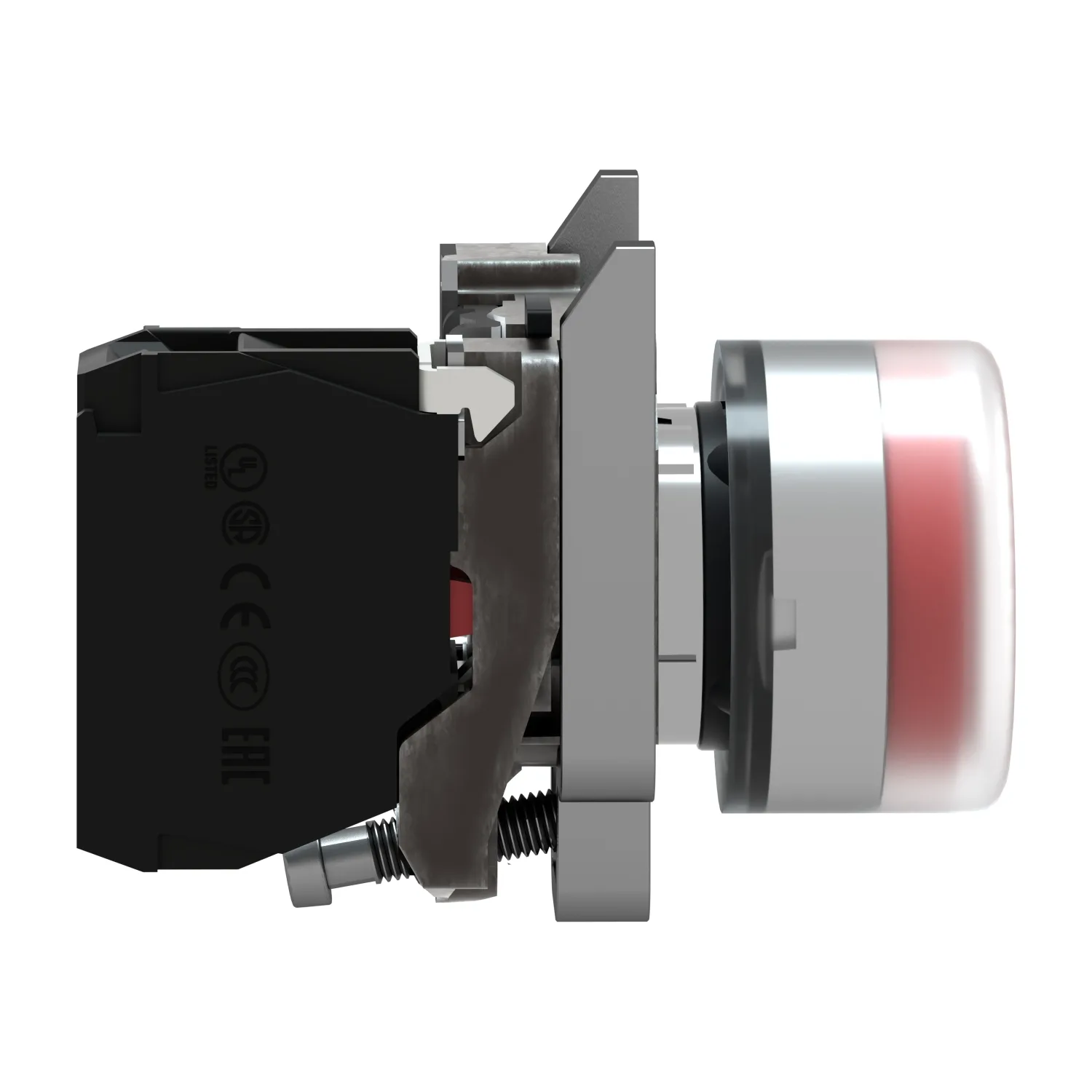

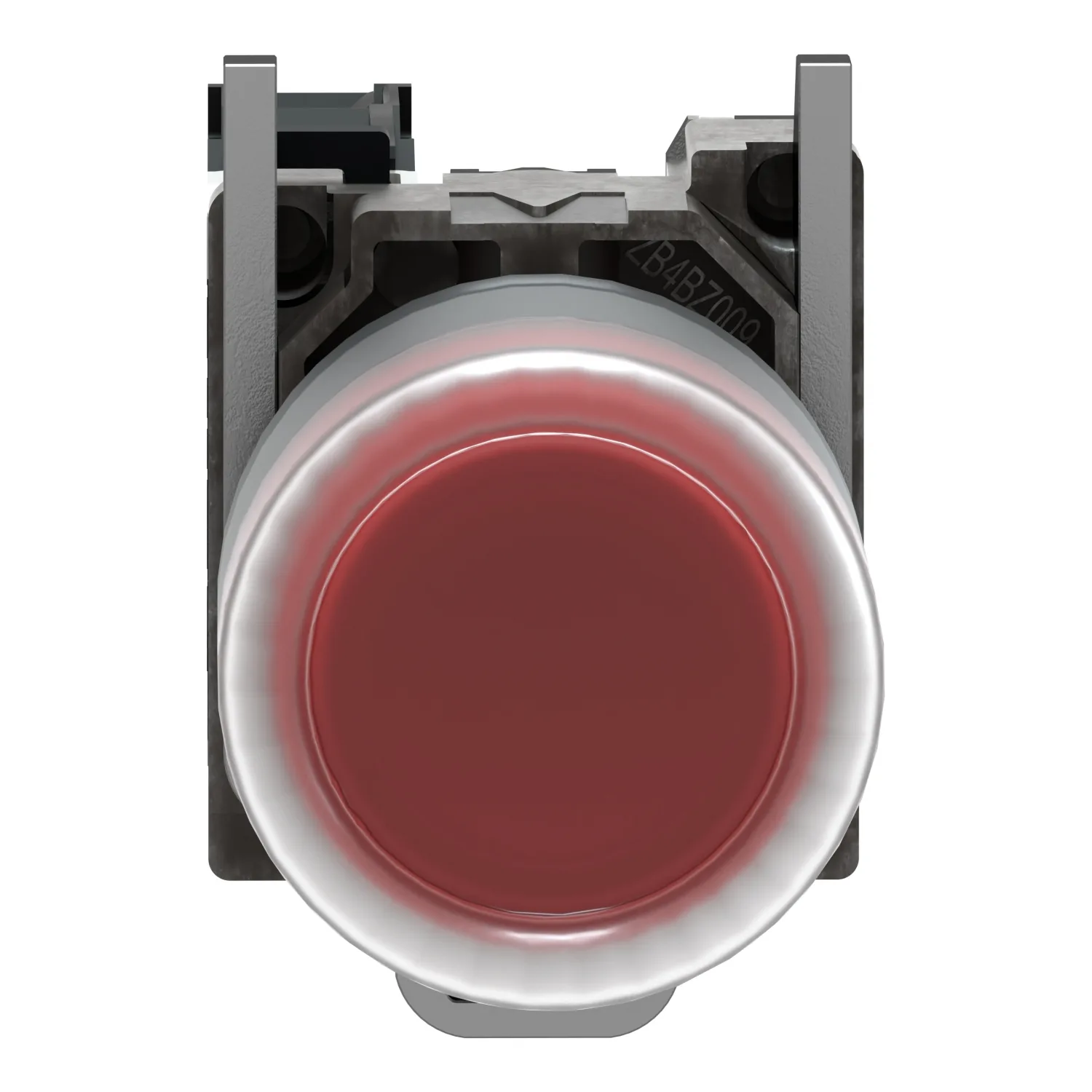

Schneider XB4BP42, Switch: push-button; 22mm; NC; red; none; 3A/240VAC; 0.55A/125VDC. Category: Harmony XB4. In stock.
- Reference:XB4BP42
- Manufacturer / Brand:Schneider
- Availability:In stock (20 pcs) ✅
- Price:17.90 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony XB4
- Device Short Name
- XB4
- Product Or Component Type
- Push-button
- Product Compatibility
- Not compatible with legend holder
Product Description
This Harmony XB4 modular red push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Key Features
- "Quick and easy assembly and disassembly"
- "Robustness to withstand harsh environments"
- "Various types of connection: screw clamp, connector, Faston connector or spring terminal"
- "Excellent mechanical connection with operator head"
- "A wide choice of contact blocks for general purposes or specific applications (low current, standard)"
Technical Specifications
Main16
| Range Of Product | Harmony XB4 |
|---|---|
| Device Short Name | XB4 |
| Product Or Component Type | Push-button |
| Product Compatibility | Not compatible with legend holder |
| Bezel Material | Chromium plated metal |
| Fixing Collar Material | Zamak |
| Mounting Diameter | 22.5 mm |
| Sale Per Indivisible Quantity | 1 |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | spring return |
| Operator Profile | Red projecting, unmarked |
| Head Type | Standard |
| Operator Additional Information | Clear boot |
| Contacts Type And Composition | 1 NC |
| Contact Operation | Slow-break |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
Complementary22
| Height | 47 mm |
|---|---|
| Width | 30 mm |
| Depth | 61 mm |
| Terminals Description ISO N°1 | (21-22)NC |
| Net Weight | 0.082 kg |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Contacts Usage | Standard contacts |
| Positive Opening | With conforming to IEC 60947-5-1 appendix K |
| Operating Travel | 1.5 mm (NC changing electrical state); 4.3 mm (total travel) |
| Operating Force | 3.5 N NC changing electrical state |
| Mechanical Durability | 10000000 cycles |
| Tightening Torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape Of Screw Head | Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts Material | Silver alloy (Ag/Ni) |
| Short-circuit Protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] Conventional Free Air Thermal Current | 10 A conforming to IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] Rated Operational Current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1; 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A at 110 |
| Electrical Reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4 |
| Device Presentation | Complete product |
Environment11
| Protective Treatment | TH |
|---|---|
| Ambient Air Temperature For Storage | -40…70 °C |
| Ambient Air Temperature For Operation | -40…70 °C |
| Overvoltage Category | Class I conforming to IEC 60536 |
| IP Degree Of Protection | IP66 conforming to IEC 60529; IP67 |
| Enclosure Type | UL type 4X/13 |
| IK Degree Of Protection | IK06 conforming to IEC 50102 |
| Standards | CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-1; JIS C8201-5-1; UL 508; IEC 60947-5-5; IEC 60947-5-4; JIS C8201-1 |
| Product Certifications | CSA; LROS (Lloyds register of shipping); BV; UL listed; DNV |
| Vibration Resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 8.800 cm |
| Package 1 Width | 3.400 cm |
| Package 1 Length | 5.400 cm |
| Package 1 Weight | 83.000 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 5 |
| Package 2 Height | 8.800 cm |
| Package 2 Width | 3.400 cm |
| Package 2 Length | 26.500 cm |
| Package 2 Weight | 419.000 g |
| Unit Type Of Package 3 | S03 |
| Number Of Units In Package 3 | 150 |
| Package 3 Height | 30.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 12.997 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
