Control lamp; 22mm; Harmony XB4; Illumin: filament lamp; Ø22mm
Schneider XB4BV64, Control lamp; 22mm; Harmony XB4; Illumin: filament lamp; Ø22mm. Category: Harmony XB4. Request a quote for price and lead time.
- Reference:XB4BV64
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:13.20 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony XB4
- Product Or Component Type
- Pilot light
- Device Short Name
- XB4
- Bezel Material
- Chromium plated metal
Product Description

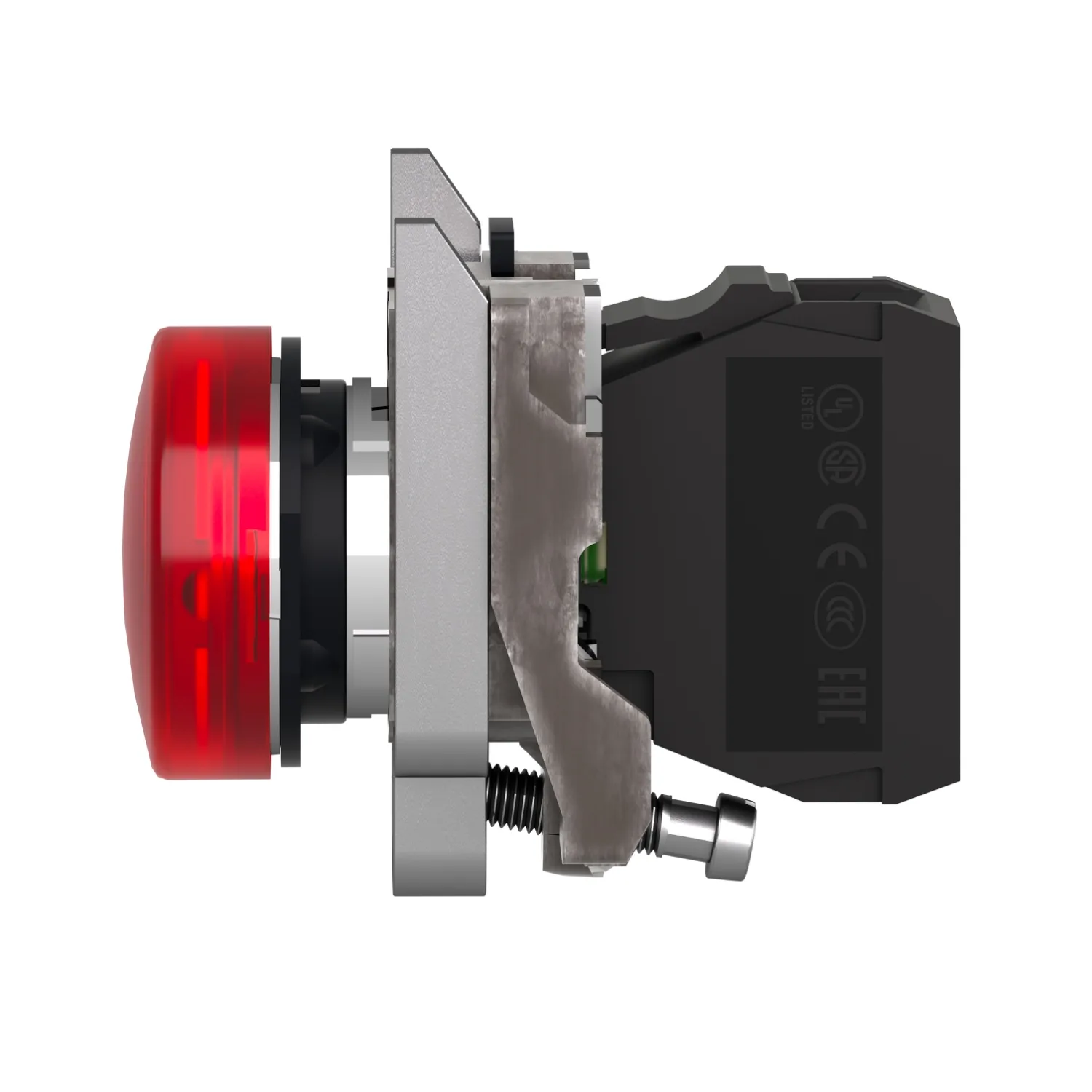

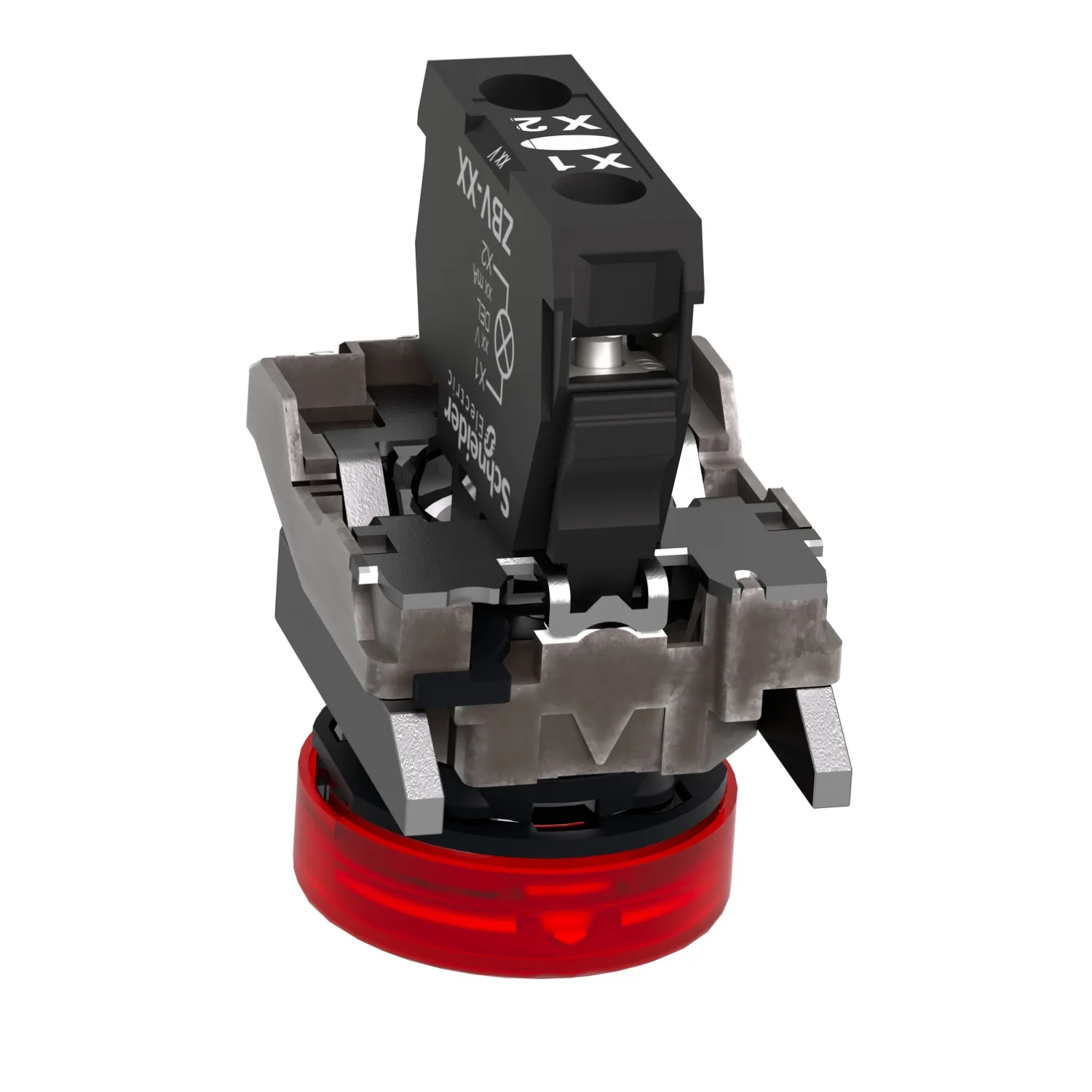

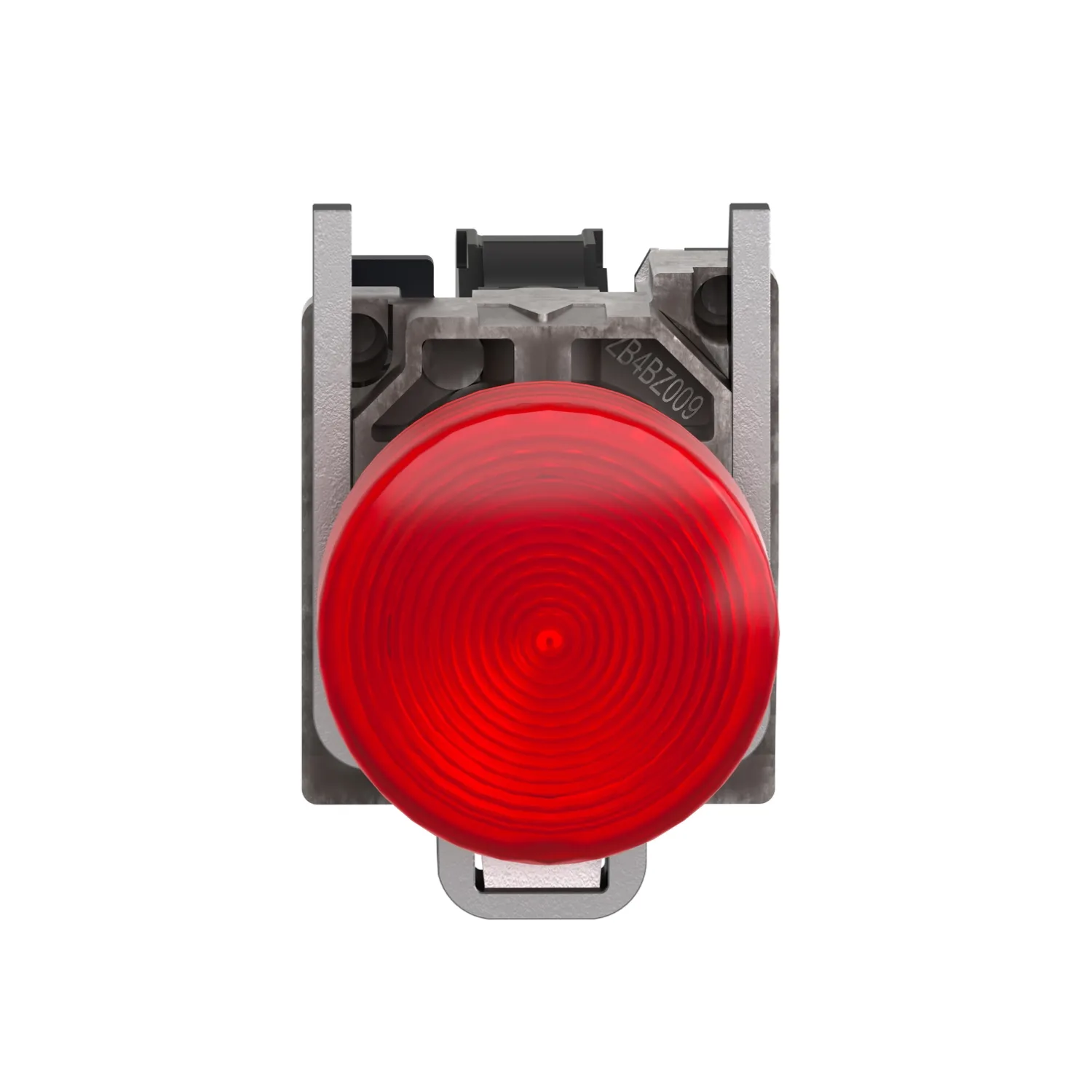

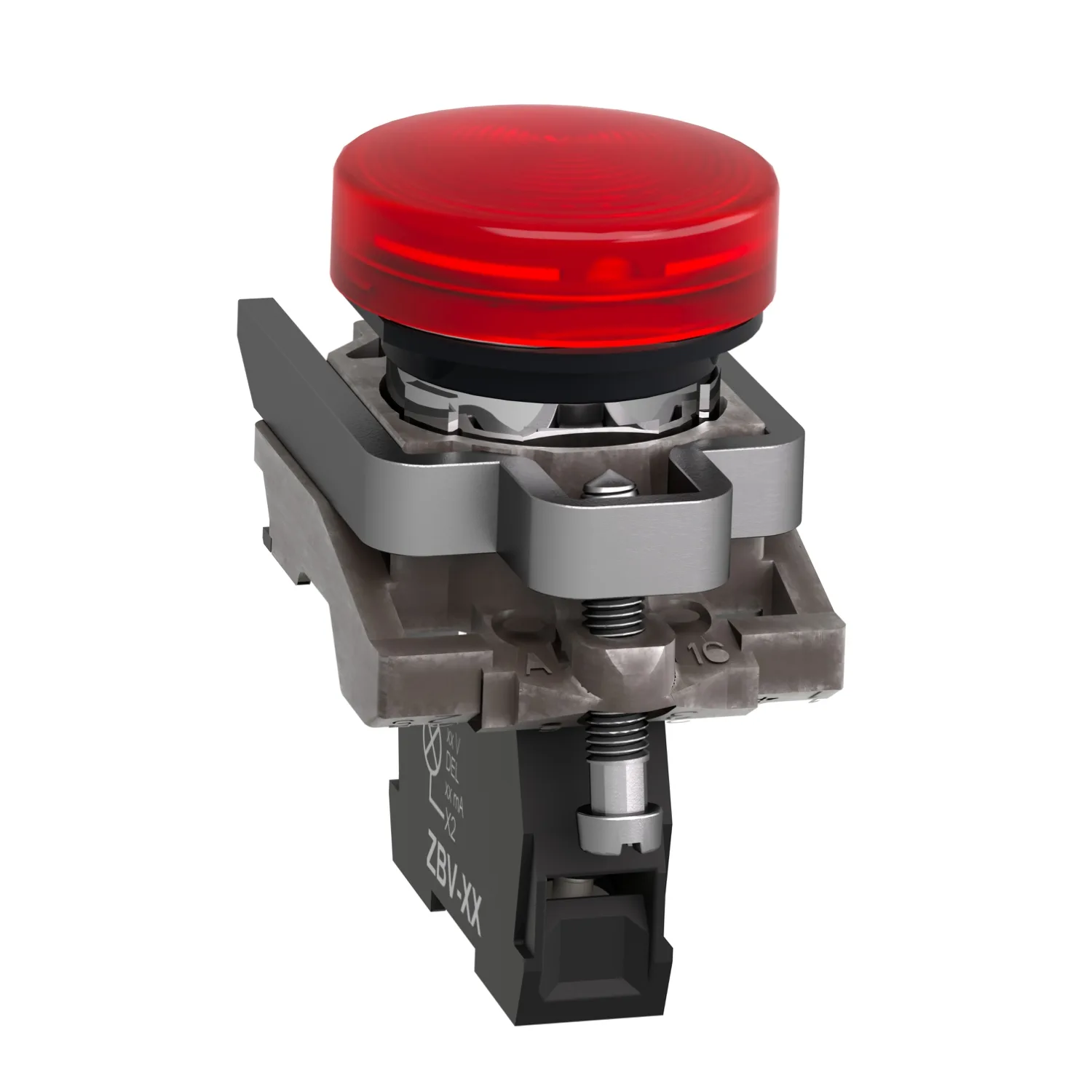

This Harmony XB4 plain lens modular red pilot light is supplied with 250V AC/DC, uses BA9s base. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indicator of process and machine operations, is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting BA9s base illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments.
Key Features
- "Quick and easy assembly and disassembly"
- "Robustness to withstand harsh environments"
- "Various types of connection: screw clamp, connector, Faston connector or spring terminal"
- "Excellent mechanical connection with operator head"
- "A wide choice of contact blocks for general purposes or specific applications (low current, standard)"
Technical Specifications
Main15
| Range Of Product | Harmony XB4 |
|---|---|
| Product Or Component Type | Pilot light |
| Device Short Name | XB4 |
| Bezel Material | Chromium plated metal |
| Fixing Collar Material | Zamak |
| Head Type | Standard |
| Mounting Diameter | 22.5 mm |
| Sale Per Indivisible Quantity | 1 |
| Shape Of Signaling Unit Head | Round |
| Cap/operator Or Lens Colour | Red |
| Operator Additional Information | With plain lens |
| Light Source | Bulb not included |
| Bulb Base | BA 9s |
| Light Block Supply | Direct <2.4 W |
| [Us] Rated Supply Voltage | <= 250 V |
Complementary11
| Height | 47 mm |
|---|---|
| Width | 30 mm |
| Depth | 55 mm |
| Terminals Description ISO N°1 | (X1-X2)PL |
| Net Weight | 0.075 kg |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| [Ui] Rated Insulation Voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV conforming to IEC 60947-1 |
| Signalling Type | Steady |
| Device Presentation | Complete product |
Environment11
| Protective Treatment | TH |
|---|---|
| Ambient Air Temperature For Storage | -40…70 °C |
| Ambient Air Temperature For Operation | -40…55 °C |
| Electrical Shock Protection Class | Class I conforming to IEC 60536 |
| IP Degree Of Protection | IP66 conforming to IEC 60529; IP67; IP69; IP69K |
| Enclosure Type | UL type 4X/13 |
| IK Degree Of Protection | IK06 conforming to IEC 50102 |
| Standards | UL 508; JIS C8201-5-1; IEC 60947-5-1; CSA C22.2 No 14; IEC 60947-1; IEC 60947-5-4; IEC 60947-5-5; JIS C8201-1 |
| Product Certifications | UL listed; CSA |
| Vibration Resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 8.800 cm |
| Package 1 Width | 3.400 cm |
| Package 1 Length | 5.400 cm |
| Package 1 Weight | 74.000 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 150 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 11.568 kg |
| Unit Type Of Package 3 | P06 |
| Number Of Units In Package 3 | 1200 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 60.000 cm |
| Package 3 Length | 80.000 cm |
| Package 3 Weight | 103.004 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
