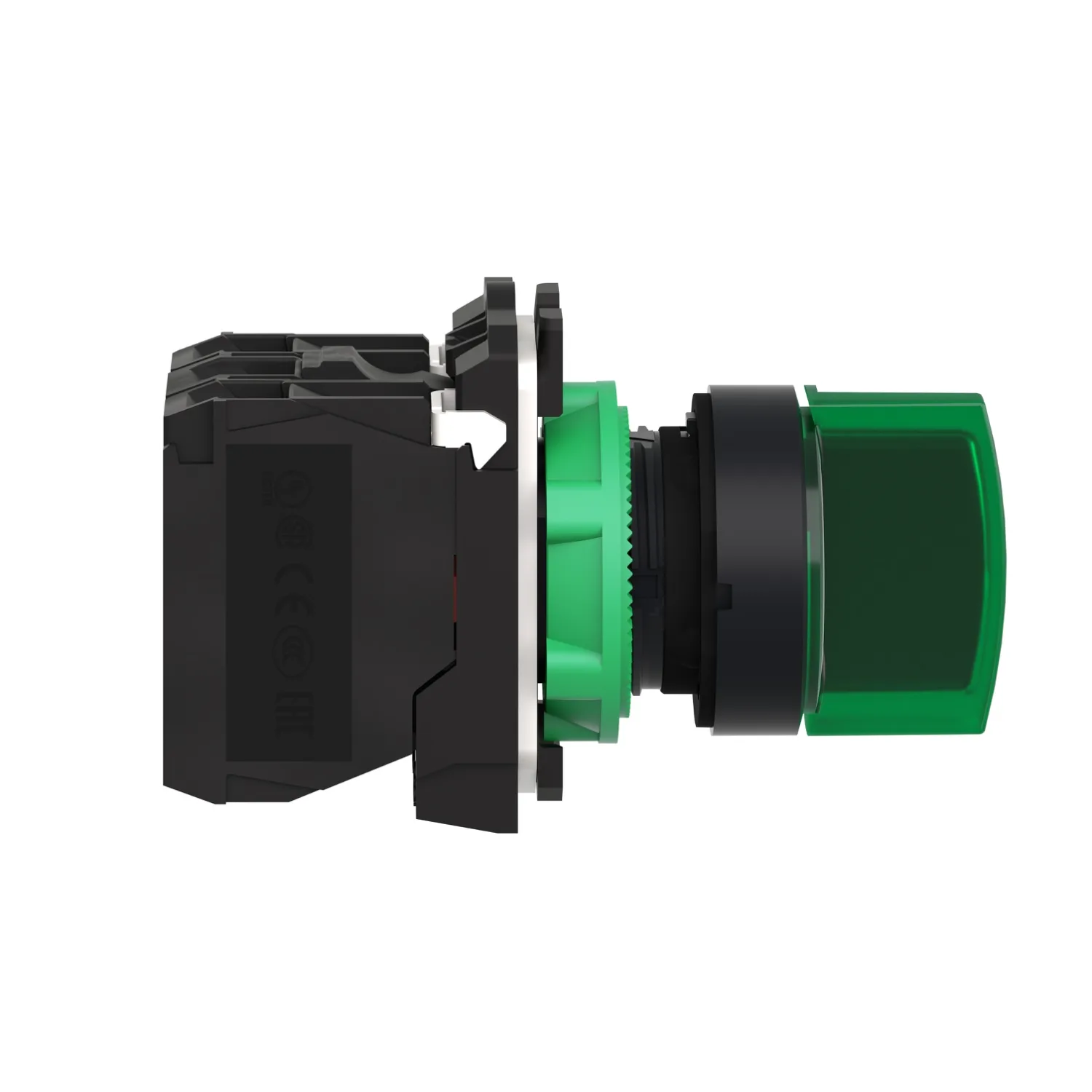

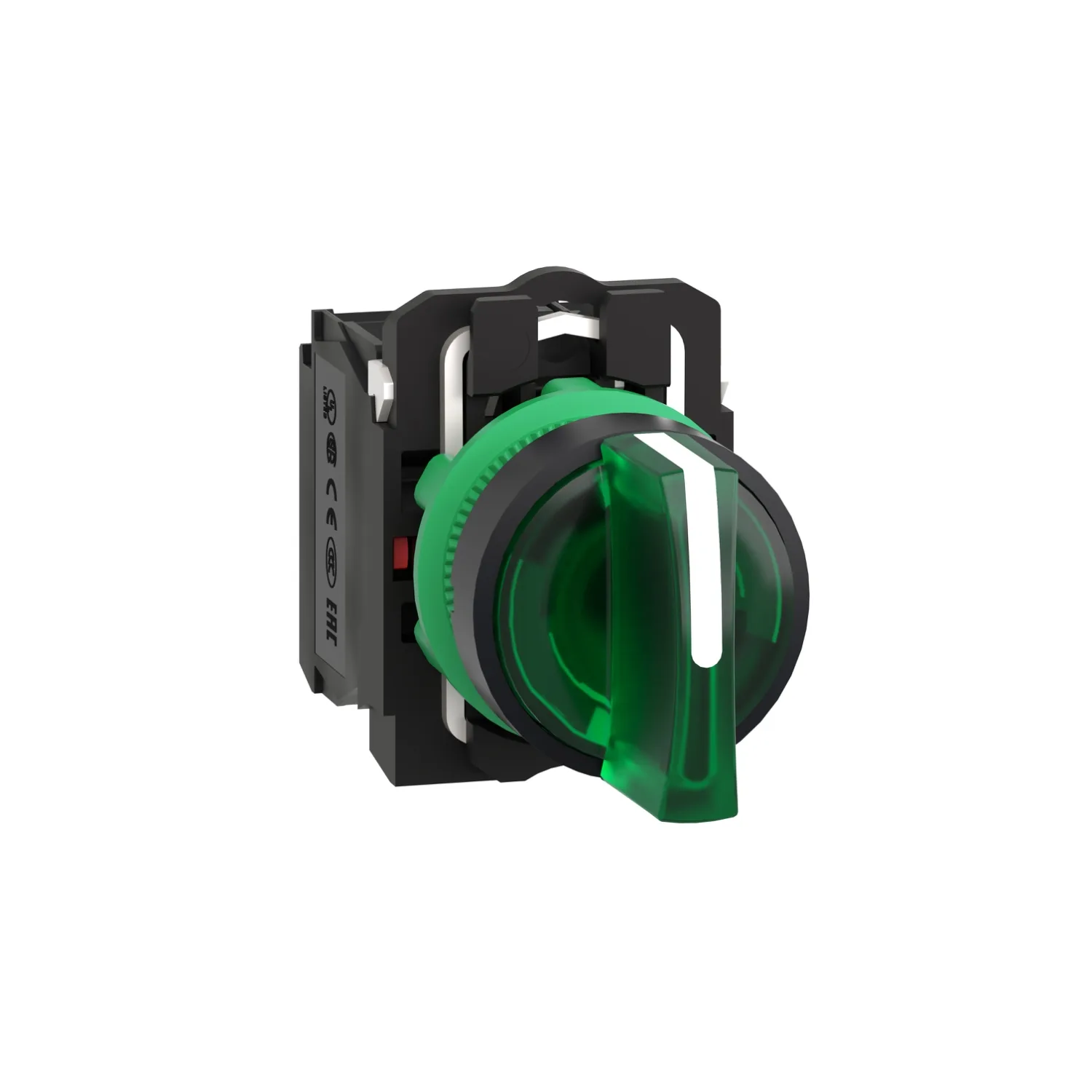

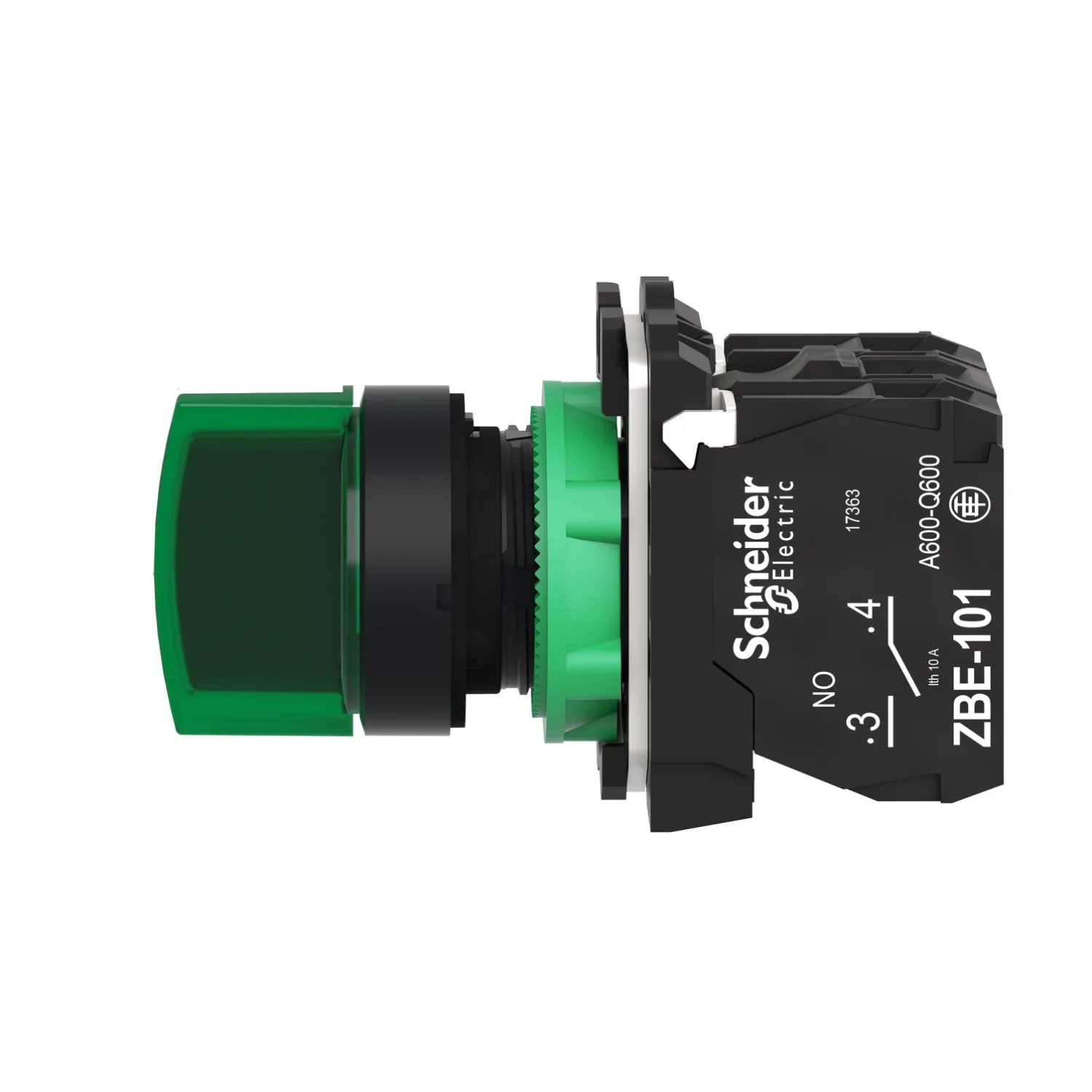

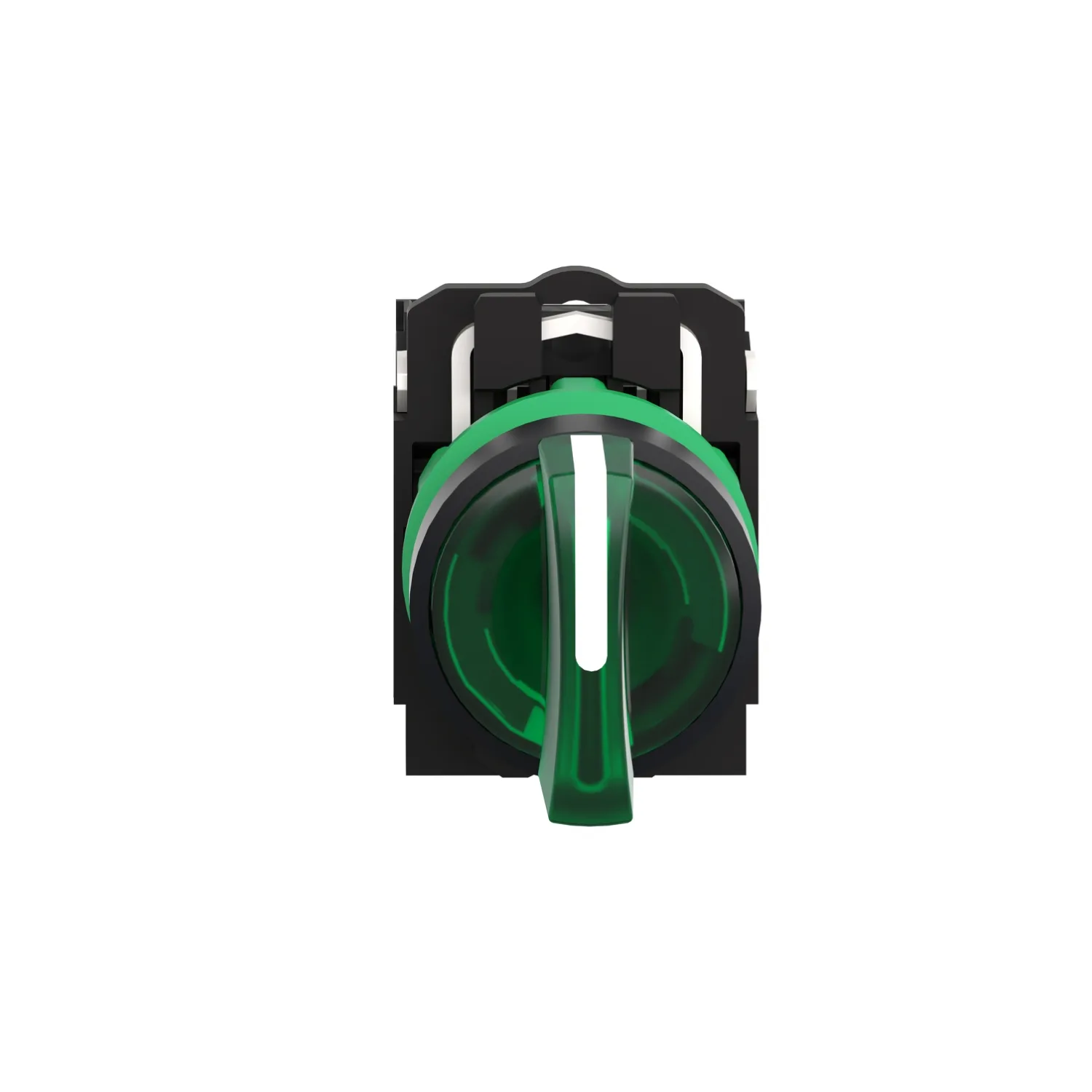

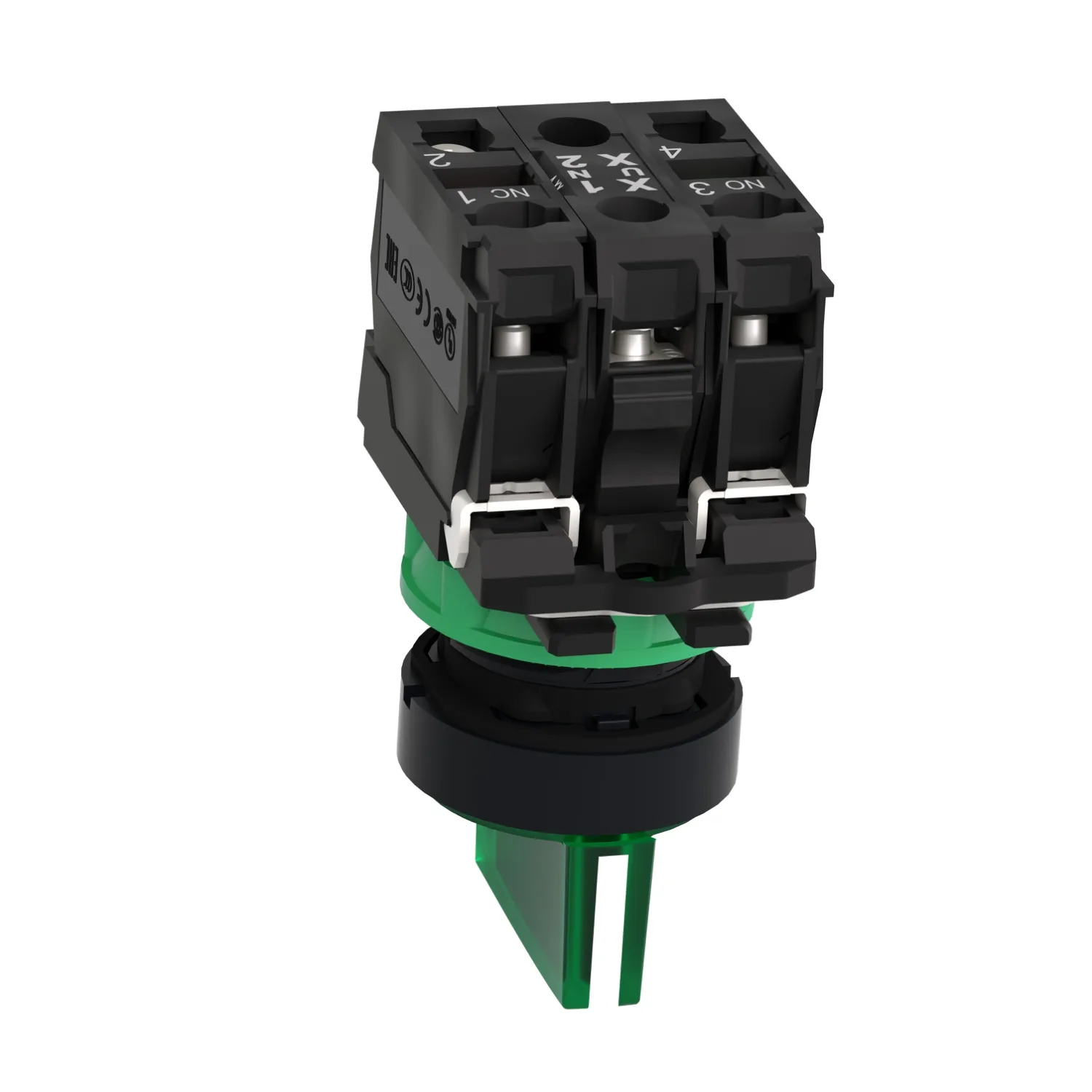

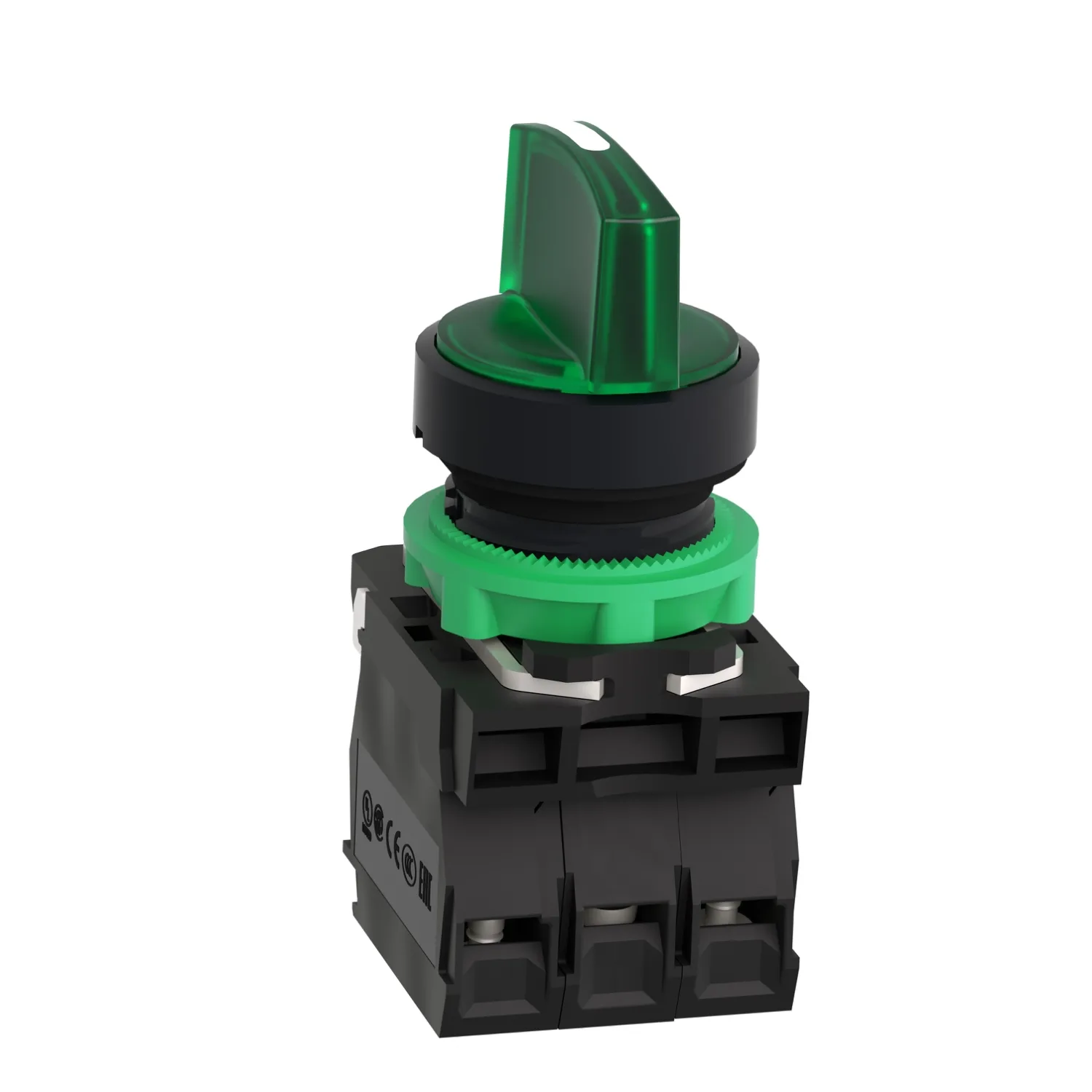

Illuminated selector switch, Harmony XB5, grey plastic, green handle, 22mm, 3 positions, universal LED, 1NO + 1NC, 24V AC DC
Schneider XB5AK133B5, Illuminated selector switch, Harmony XB5, grey plastic, green handle, 22mm, 3 positions, universal LED, 1NO + 1NC, 24V AC DC. Category: Harmony XB5. Request a quote for price and lead time.
- Reference:XB5AK133B5
- Manufacturer / Brand:Schneider
- Availability:On Request / Inquire Stock
- Price:35.50 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony XB5
- Product Or Component Type
- Illuminated selector switch
- Device Short Name
- XB5
- Bezel Material
- Dark grey plastic
Product Description
This Harmony XB5, illuminated modular green selector switch has 3 positions, operates with a stay-put mechanism, a 24V AC universal LED and uses screw clamp terminals. This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Key Features
- Compatible with universal LED block to be used for all colors
- Improved color intensity and brightness
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
Technical Specifications
Main16
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | Illuminated selector switch |
| Device Short Name | XB5 |
| Bezel Material | Dark grey plastic |
| Head Type | Standard |
| Mounting Diameter | 22.5 mm |
| Sale Per Indivisible Quantity | 1 |
| Shape Of Signaling Unit Head | Round |
| Type Of Operator | stay put |
| Operator Profile | Green standard handle |
| Operator Position Information | 3 positions +/- 45° |
| Contacts Type And Composition | 1 NO + 1 NC |
| Contact Operation | Slow-break |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Bulb Base | Integral LED |
| [Us] Rated Supply Voltage | 24 V AC/DC at 50/60 Hz |
Complementary27
| Height | 42 mm |
|---|---|
| Width | 30 mm |
| Depth | 70 mm |
| Terminals Description ISO N°1 | (11-12)NC; (13-14)NO |
| Net Weight | 0.516 kg |
| Resistance To High Pressure Washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Contacts Usage | Standard contacts |
| Positive Opening | With conforming to IEC 60947-5-1 appendix K |
| Operating Torque | 0.14 N.m NO changing electrical state |
| Mechanical Durability | 500000 cycles |
| Tightening Torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape Of Screw Head | Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts Material | Silver alloy (Ag/Ni) |
| Short-circuit Protection | 10 A cartridge fuse type gG conforming to IEC 60947-5-1 |
| [Ith] Conventional Free Air Thermal Current | 10 A conforming to IEC 60947-5-1 |
| [Ui] Rated Insulation Voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] Rated Operational Current | 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1; 6 A at 120 V, AC-15, A600 conforming to IEC 60947-5-1; 0.1 A at 600 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1; 0.55 A at 125 V, DC-13, Q600 conforming to IEC 60947-5-1; 1.2 A at 600 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Electrical Durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, DC-13, 0.2 A at 110 |
| Electrical Reliability | Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to IEC 60947-5-4; Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to IEC 60947-5-4 |
| Signalling Type | Steady |
| Light Source | Universal LED |
| Supply Voltage Limits | 19.2…30 V DC; 21.6…26.4 V AC |
| Current Consumption | 18 mA |
| Service Life | 100000 h at rated voltage and 25 °C |
| Surge Withstand | 1 kV conforming to IEC 61000-4-5 |
| Device Presentation | Complete product |
Environment15
| Protective Treatment | TH |
|---|---|
| Ambient Air Temperature For Storage | -40…70 °C |
| Ambient Air Temperature For Operation | -40…70 °C |
| Electrical Shock Protection Class | Class II conforming to IEC 60536 |
| IP Degree Of Protection | IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69; IP69K |
| Enclosure Type | UL type 4X/13 |
| IK Degree Of Protection | IK05 conforming to IEC 50102 |
| Standards | IEC 60947-5-4; CSA C22.2 No 14; JIS C8201-5-1; IEC 60947-5-1; IEC 60947-1; UL 508; JIS C8201-1 |
| Product Certifications | BV; UL; CSA; DNV; LROS (Lloyds register of shipping) |
| Vibration Resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Resistance To Fast Transients | 2 kV conforming to IEC 61000-4-4 |
| Resistance To Electromagnetic Fields | 10 V/m conforming to IEC 61000-4-3 |
| Resistance To Electrostatic Discharge | 6 kV on contact (on metal parts) conforming to IEC 61000-4-2; 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 |
| Electromagnetic Emission | Class B conforming to IEC 55011 |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 3.500 cm |
| Package 1 Width | 5.500 cm |
| Package 1 Length | 8.500 cm |
| Package 1 Weight | 60.000 g |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 100 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 8.000 kg |
| Unit Type Of Package 3 | P06 |
| Number Of Units In Package 3 | 800 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 60.048 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
