Control lamp; 22mm; Harmony XB7; Illumin: LED; 230V; Ø22mm; IP65
Schneider XB7EV03MP, Control lamp; 22mm; Harmony XB7; Illumin: LED; 230V; Ø22mm; IP65. Category: Harmony XB7. In stock.
- Reference:XB7EV03MP
- Manufacturer / Brand:Schneider
- Availability:In stock (100 pcs) ✅
- Price:9.40 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony XB7
- Product Or Component Type
- Pilot light
- Device Short Name
- XB7
- Bezel Material
- Plastic
Product Description

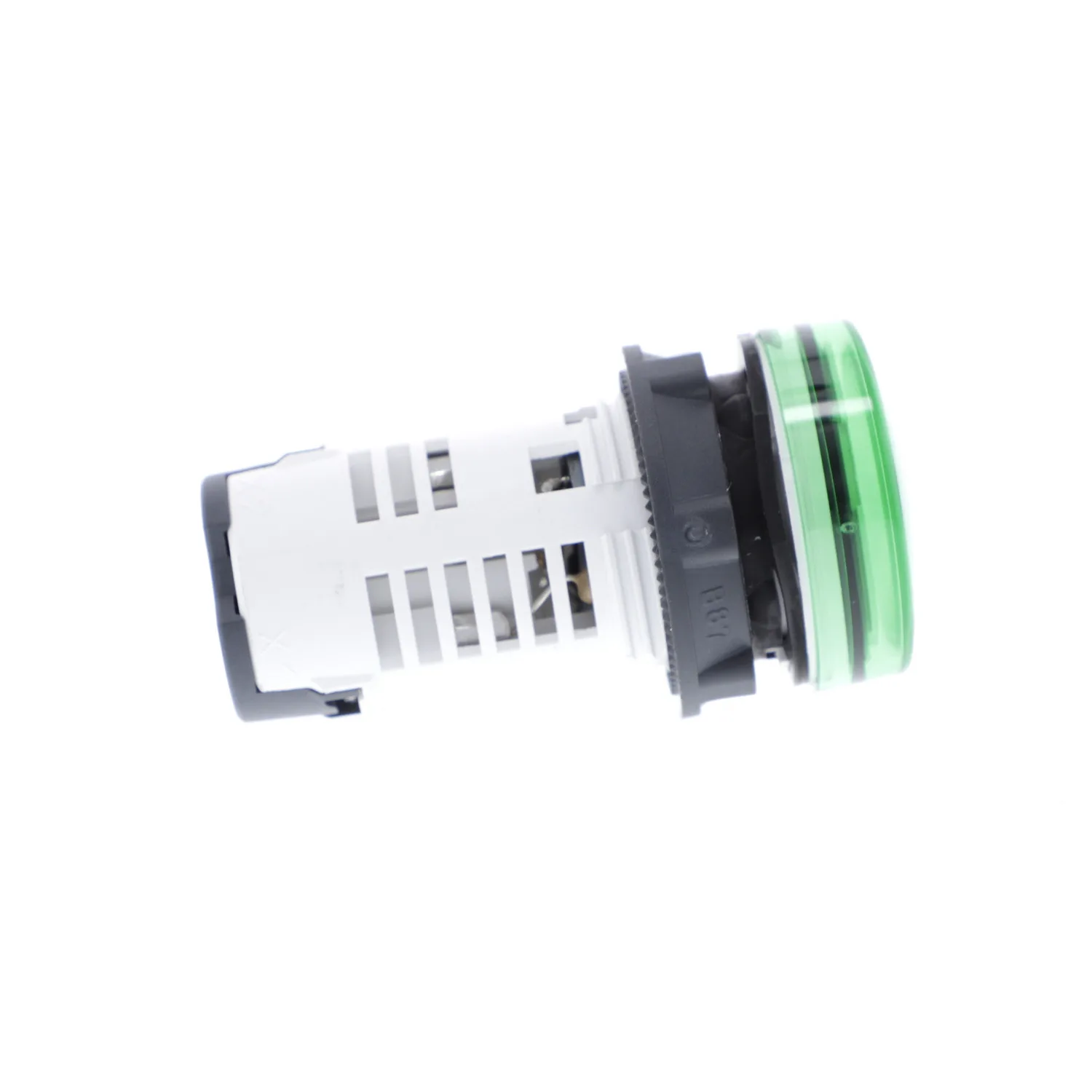

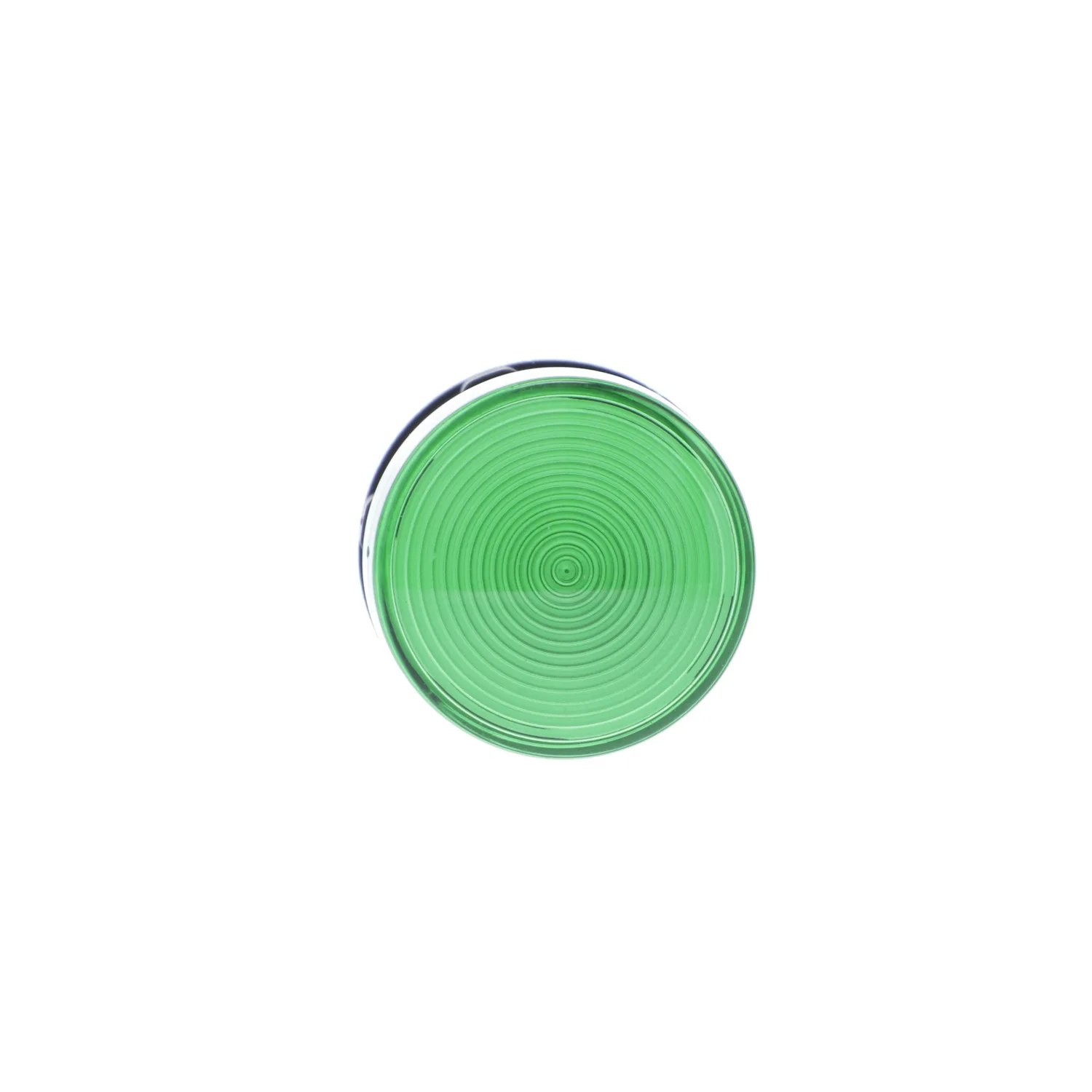

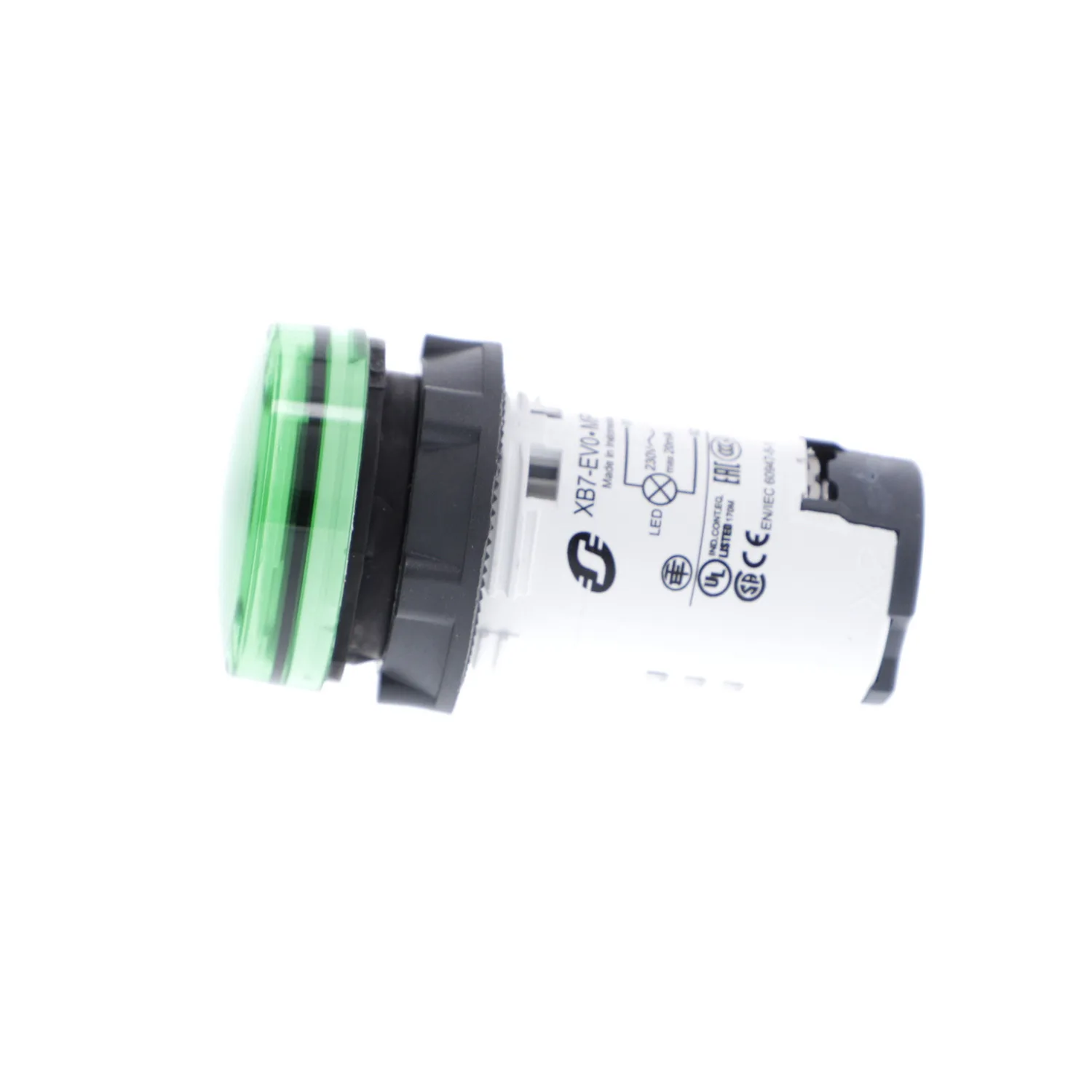

This Harmony XB7, plain lens monolithic green pilot light is supplied with 230V AC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Key Features
- Plastic bezel making it ideal for applications requiring good resistance to chemical agents and/or electrical insulation
- Designed to fit in a standard 22mm cut-out ensuring compatibility with pre-existing machinery
- Wide range of operating temperatures from -25°C to 70°C/-13 to +158 °F
- Wide availability throughout an extensive distribution network
Technical Specifications
Main12
| Range Of Product | Harmony XB7 |
|---|---|
| Product Or Component Type | Pilot light |
| Device Short Name | XB7 |
| Bezel Material | Plastic |
| Mounting Diameter | 22.5 mm |
| Sale Per Indivisible Quantity | 10 |
| Shape Of Signaling Unit Head | Round |
| Cap/operator Or Lens Colour | Green |
| Light Source | LED |
| Bulb Base | Integral LED |
| [Us] Rated Supply Voltage | 230...240 V AC 50/60 Hz |
| Device Presentation | Monolithic product |
Complementary17
| Height | 29 mm |
|---|---|
| Width | 29 mm |
| Depth | 54 mm |
| Terminals Description ISO N°1 | (X1-X2)PL |
| Net Weight | 0.02 kg |
| Device Mounting | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1 |
| Fixing Center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm; >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| Fixing Mode | Fixing nut beneath head: 2…2.4 N.m |

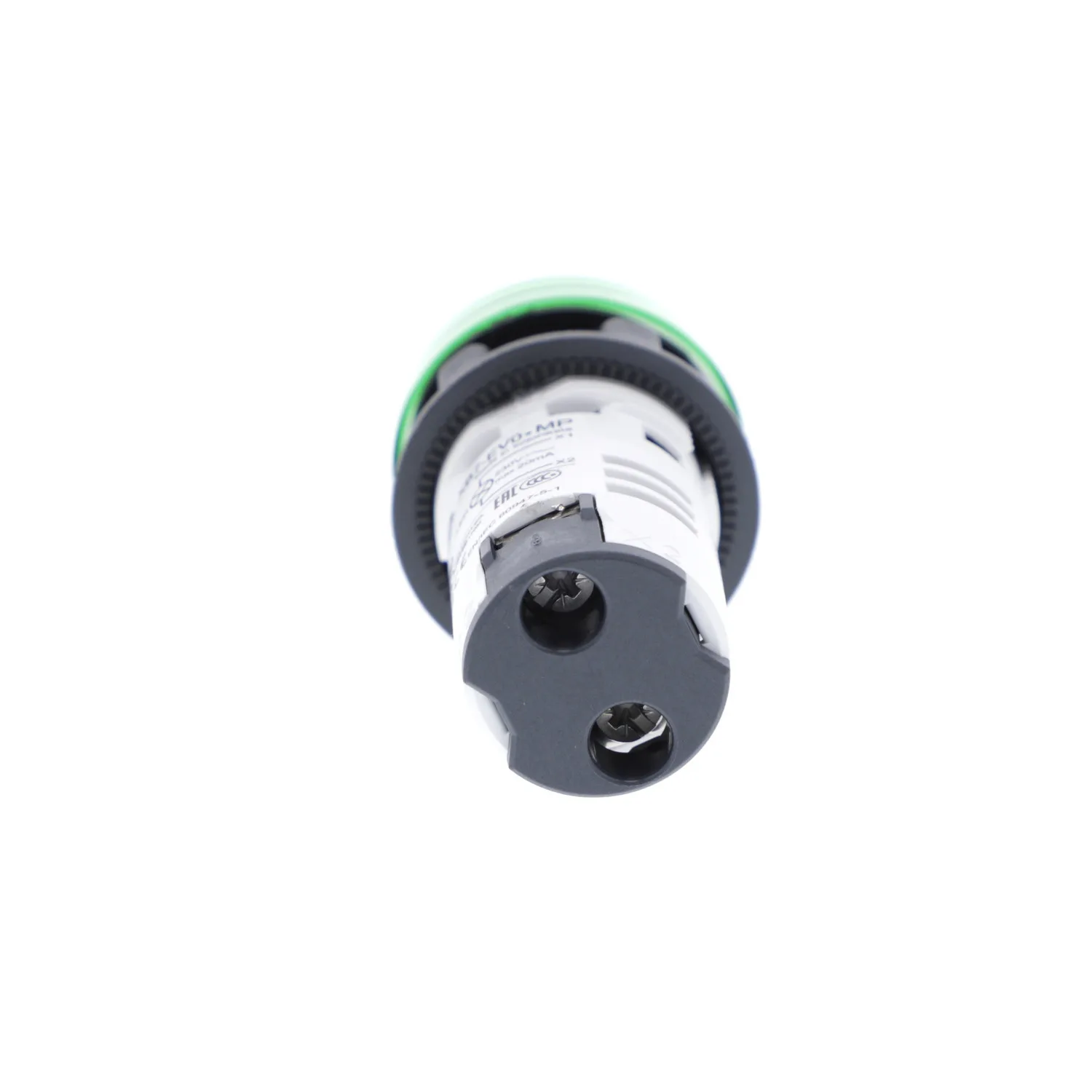

| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Tightening Torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape Of Screw Head | Cross compatible with JIS No 1 screwdriver; Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] Rated Insulation Voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947-1 |
| Signalling Type | Steady |
| Supply Voltage Limits | 195…264 V AC |
| Current Consumption | 16...20 mA |
| Service Life | 70000 h at rated voltage and 25 °C |
Environment10
| Protective Treatment | TH |
|---|---|
| Ambient Air Temperature For Storage | -40…70 °C |
| Ambient Air Temperature For Operation | -25…70 °C |
| Overvoltage Category | Class II conforming to IEC 60536 |
| IP Degree Of Protection | IP20 (rear face) conforming to IEC 60529; IP65 (front face) conforming to IEC 60529 |
| Enclosure Type | UL type 4/12 |
| Standards | CSA C22.2 No 14; JIS C8201-5-1; IEC 60947-1; IEC 60947-5-1; UL 508; JIS C8201-1 |
| Vibration Resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Electromagnetic Compatibility | Disturbing field emission class B conforming to IEC 55011 |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 3.000 cm |
| Package 1 Length | 6.000 cm |
| Package 1 Weight | 19.000 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 10 |
| Package 2 Height | 7.000 cm |
| Package 2 Width | 12.000 cm |
| Package 2 Length | 16.000 cm |
| Package 2 Weight | 200.000 g |
| Unit Type Of Package 3 | S01 |
| Number Of Units In Package 3 | 100 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 15.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 2.277 kg |
Logistical informations1
| Country Of Origin | ID |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
