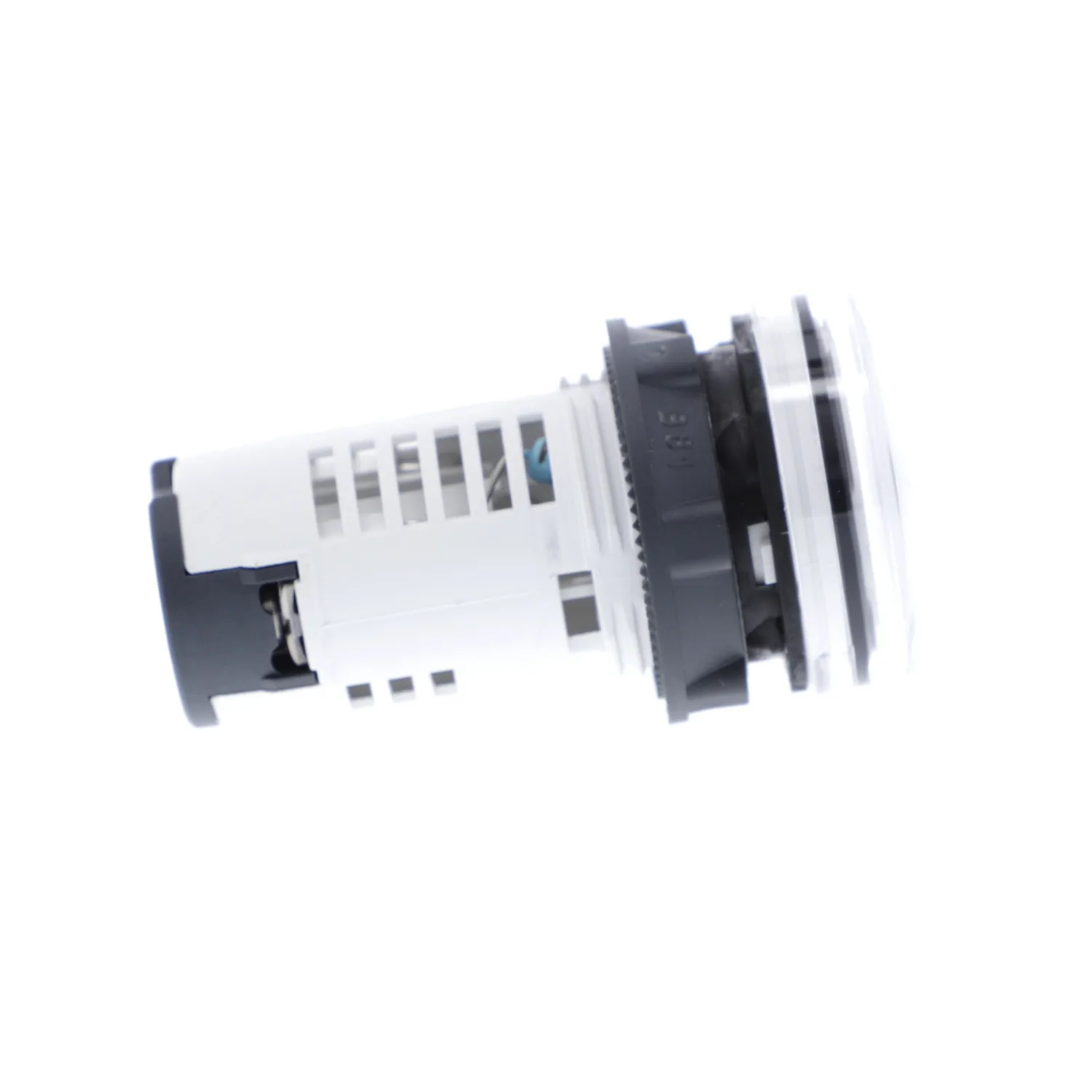

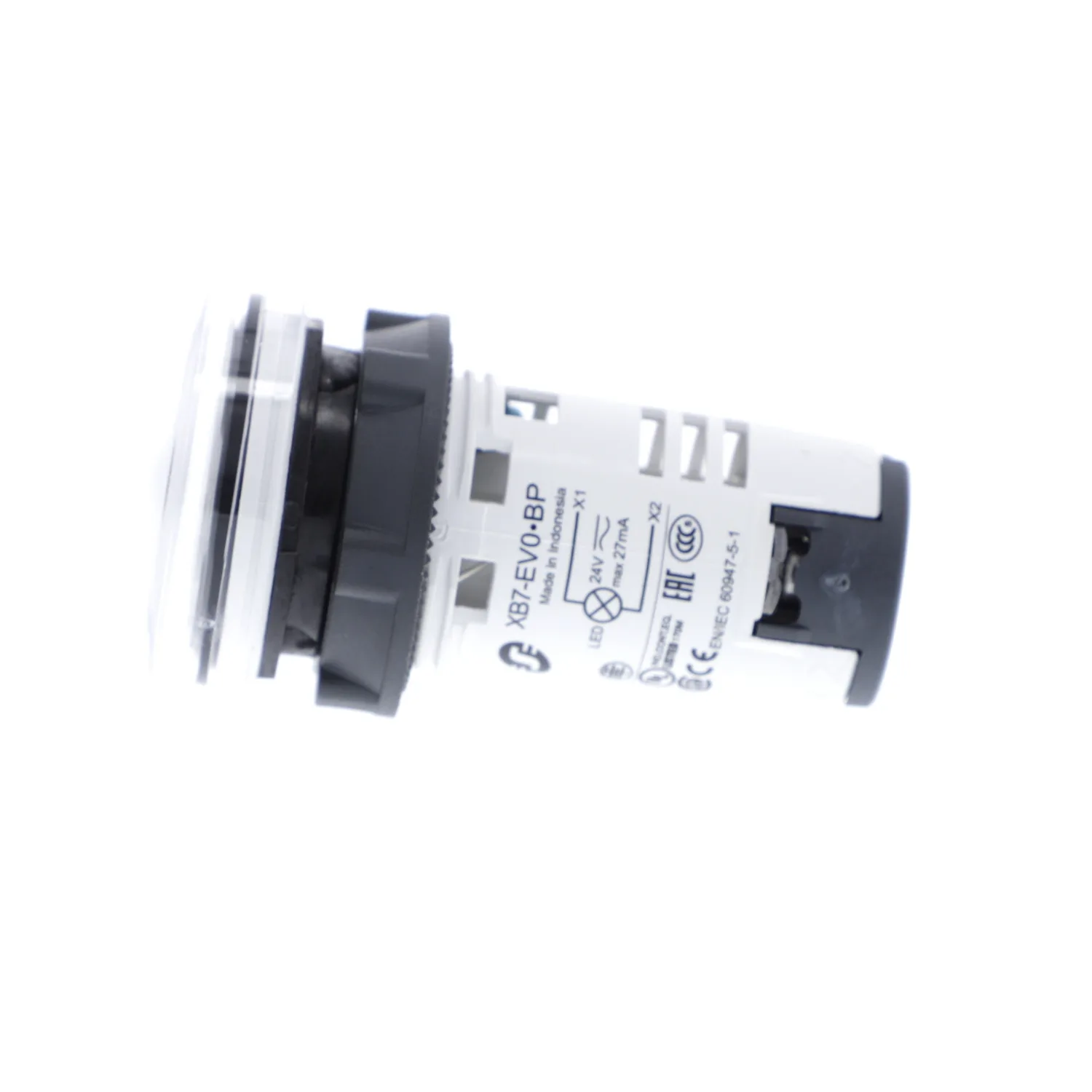

Control lamp; 22mm; Harmony XB7; Illumin: LED; 24V; Ø22mm; IP65
Schneider XB7EV07BP, Control lamp; 22mm; Harmony XB7; Illumin: LED; 24V; Ø22mm; IP65. Category: Harmony XB7. In stock.
- Reference:XB7EV07BP
- Manufacturer / Brand:Schneider
- Availability:In stock (42 pcs) ✅
- Price:7.20 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony XB7
- Product Or Component Type
- Pilot light
- Device Short Name
- XB7
- Mounting Diameter
- 22 mm
Product Description
This Harmony XB7, plain lens monolithic clear pilot light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Key Features
- Plastic bezel making it ideal for applications requiring good resistance to chemical agents and/or electrical insulation
- Designed to fit in a standard 22mm cut-out ensuring compatibility with pre-existing machinery
- Wide range of operating temperatures from -25°C to 70°C/-13 to +158 °F
- Wide availability throughout an extensive distribution network
Technical Specifications
Main11
| Range Of Product | Harmony XB7 |
|---|---|
| Product Or Component Type | Pilot light |
| Device Short Name | XB7 |
| Mounting Diameter | 22 mm |
| Sale Per Indivisible Quantity | 10 |
| Shape Of Signaling Unit Head | Round |
| Cap/operator Or Lens Colour | Clear |
| Light Source | LED |
| Bulb Base | Integral LED |
| [Us] Rated Supply Voltage | 24 V AC/DC 50/60 Hz |
| Device Presentation | Monolithic product |
Complementary17
| Height | 29 mm |
|---|---|
| Width | 29 mm |
| Depth | 54 mm |
| Terminals Description ISO N°1 | (X1-X2)PL |
| Net Weight | 0.02 kg |
| Device Mounting | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1 |
| Fixing Center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm; >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| Fixing Mode | Fixing nut beneath head: 2…2.4 N.m |
| Connections - Terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Tightening Torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape Of Screw Head | Cross compatible with JIS No 1 screwdriver; Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] Rated Insulation Voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947-1 |
| Signalling Type | Steady |
| Supply Voltage Limits | 19.2…30 V DC; 21.6…26.4 V AC |
| Current Consumption | 20...27 mA |
| Service Life | 70000 h at rated voltage and 25 °C |
Environment10
| Protective Treatment | TH |
|---|---|
| Ambient Air Temperature For Storage | -40…70 °C |
| Ambient Air Temperature For Operation | -25…55 °C |
| Overvoltage Category | Class II conforming to IEC 60536 |
| IP Degree Of Protection | IP20 (rear face) conforming to IEC 60529; IP65 (front face) conforming to IEC 60529 |
| Enclosure Type | UL type 4/12 |
| Standards | IEC 60947-5-1; CSA C22.2 No 14; UL 508; IEC 60947-1; JIS C8201-5-1; JIS C8201-1 |
| Vibration Resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Electromagnetic Compatibility | Disturbing field emission class B conforming to IEC 55011 |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 3.000 cm |
| Package 1 Length | 3.000 cm |
| Package 1 Weight | 18.000 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 10 |
| Package 2 Height | 6.000 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 15.000 cm |
| Package 2 Weight | 183.000 g |
| Unit Type Of Package 3 | S01 |
| Number Of Units In Package 3 | 100 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 15.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 2.118 kg |
Logistical informations1
| Country Of Origin | ID |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
