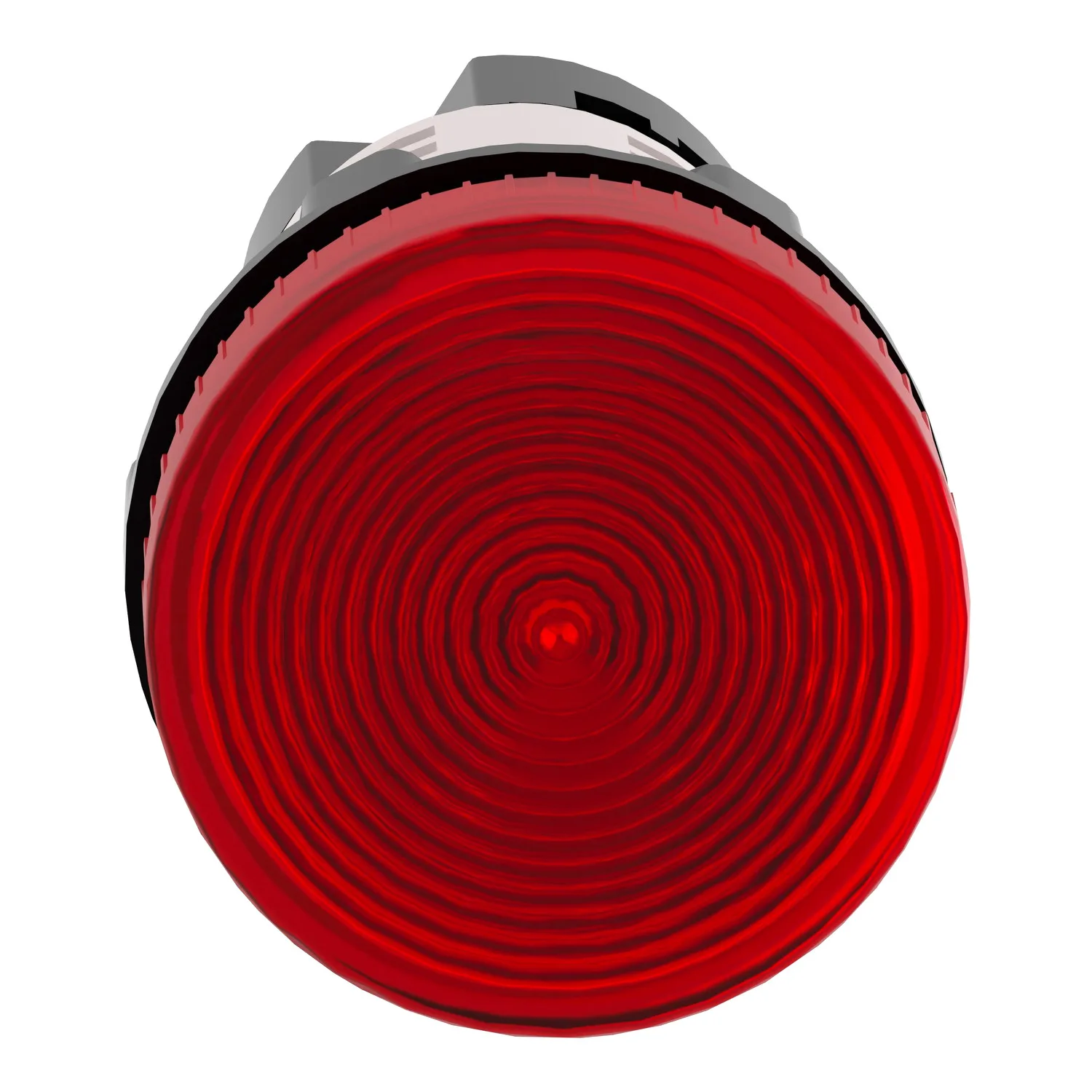

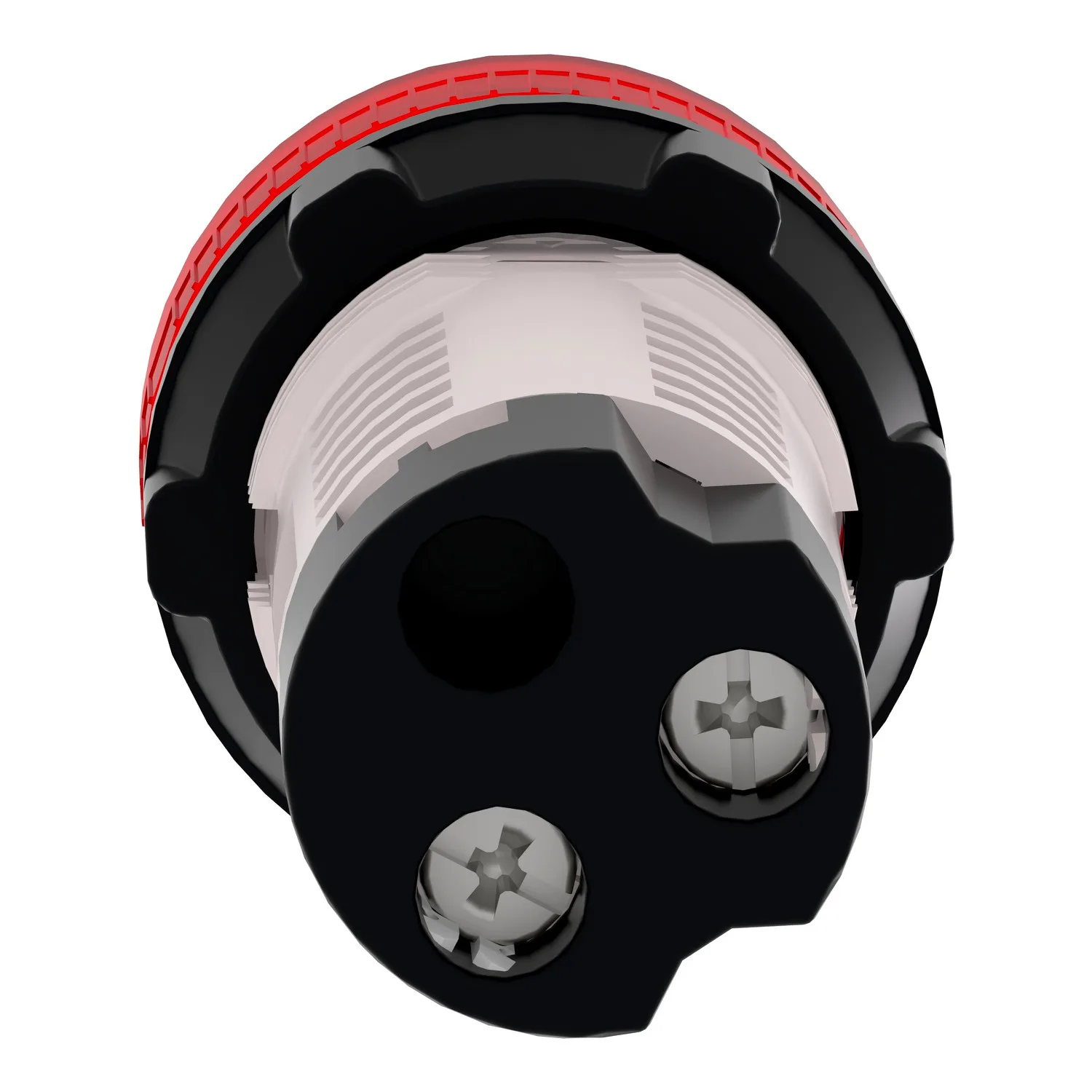

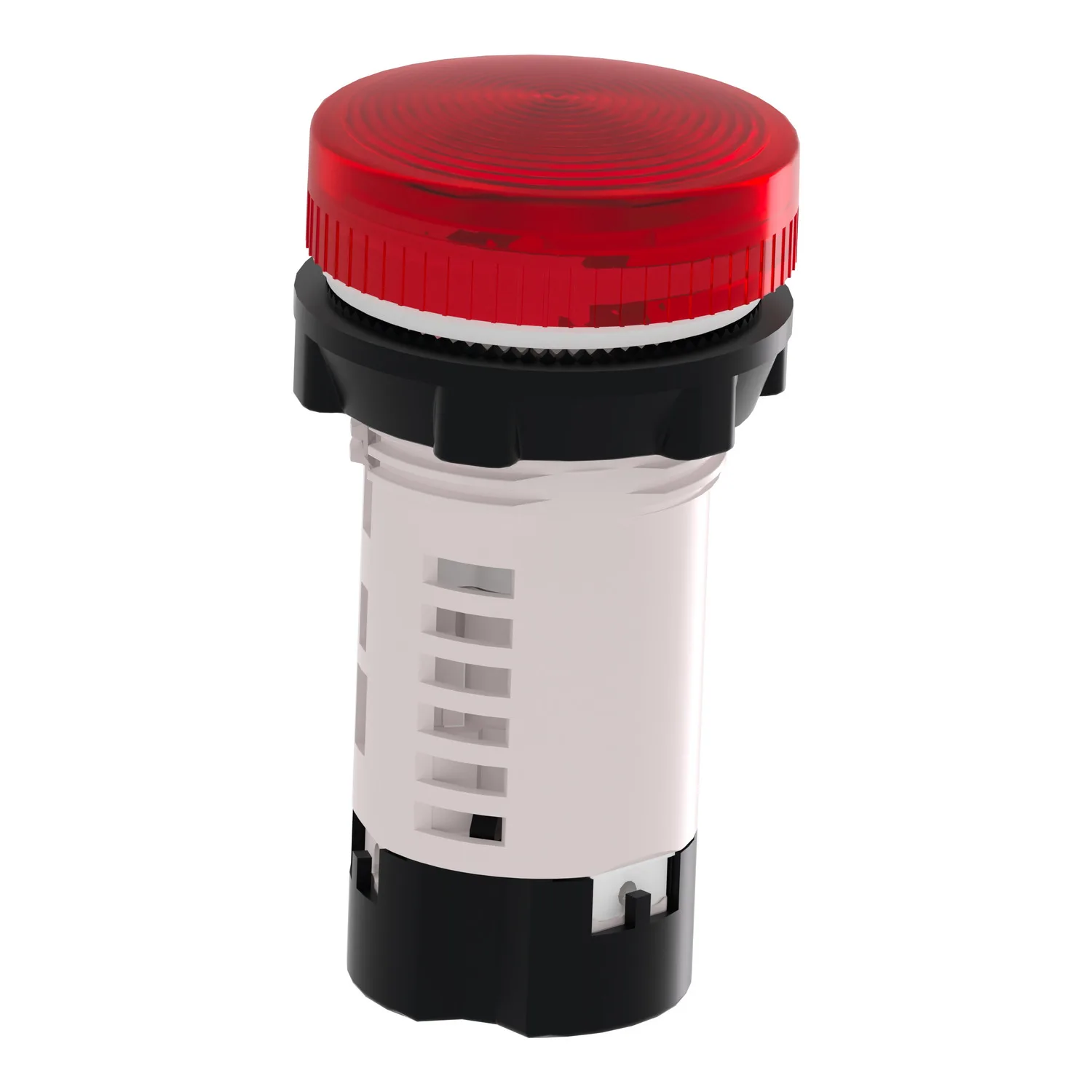

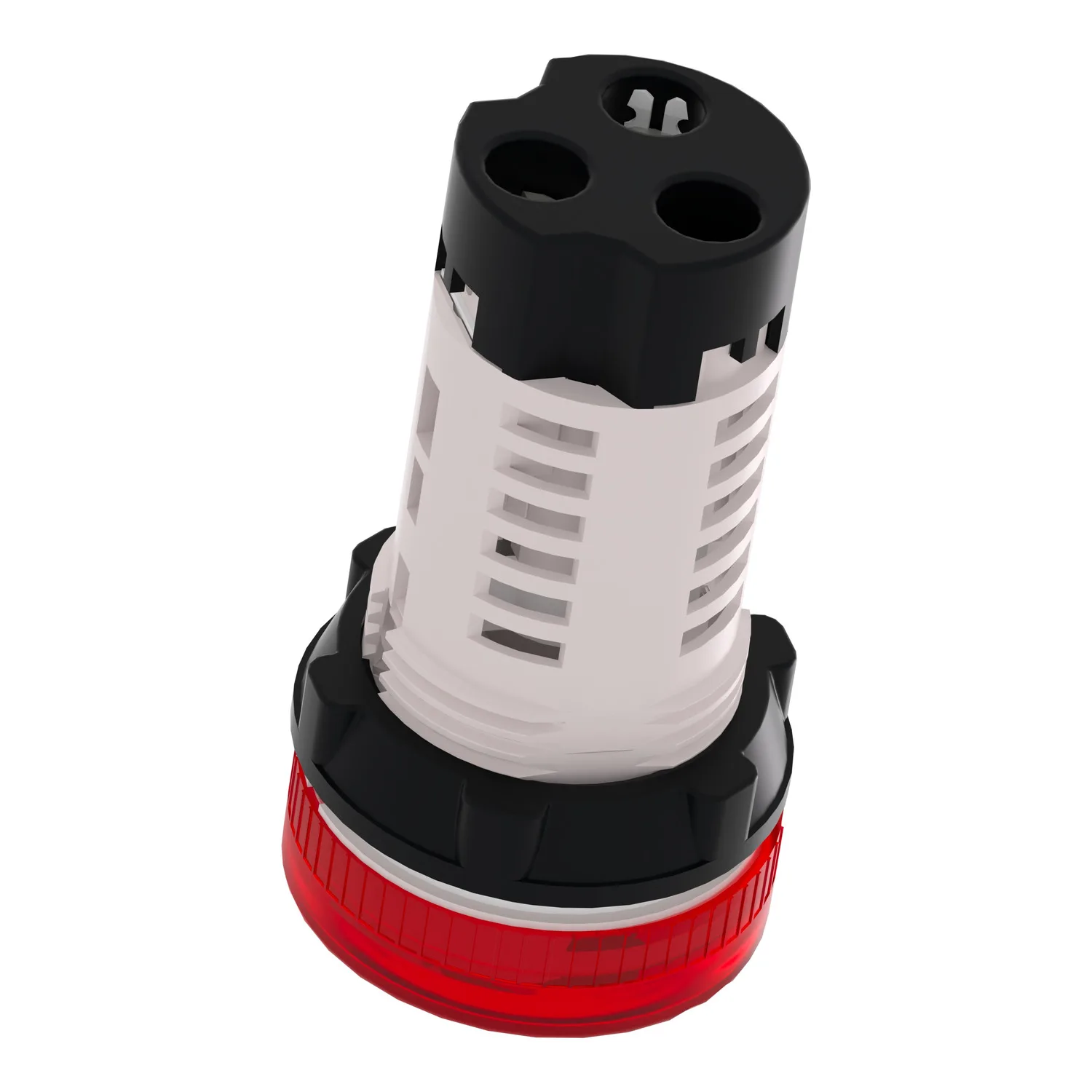

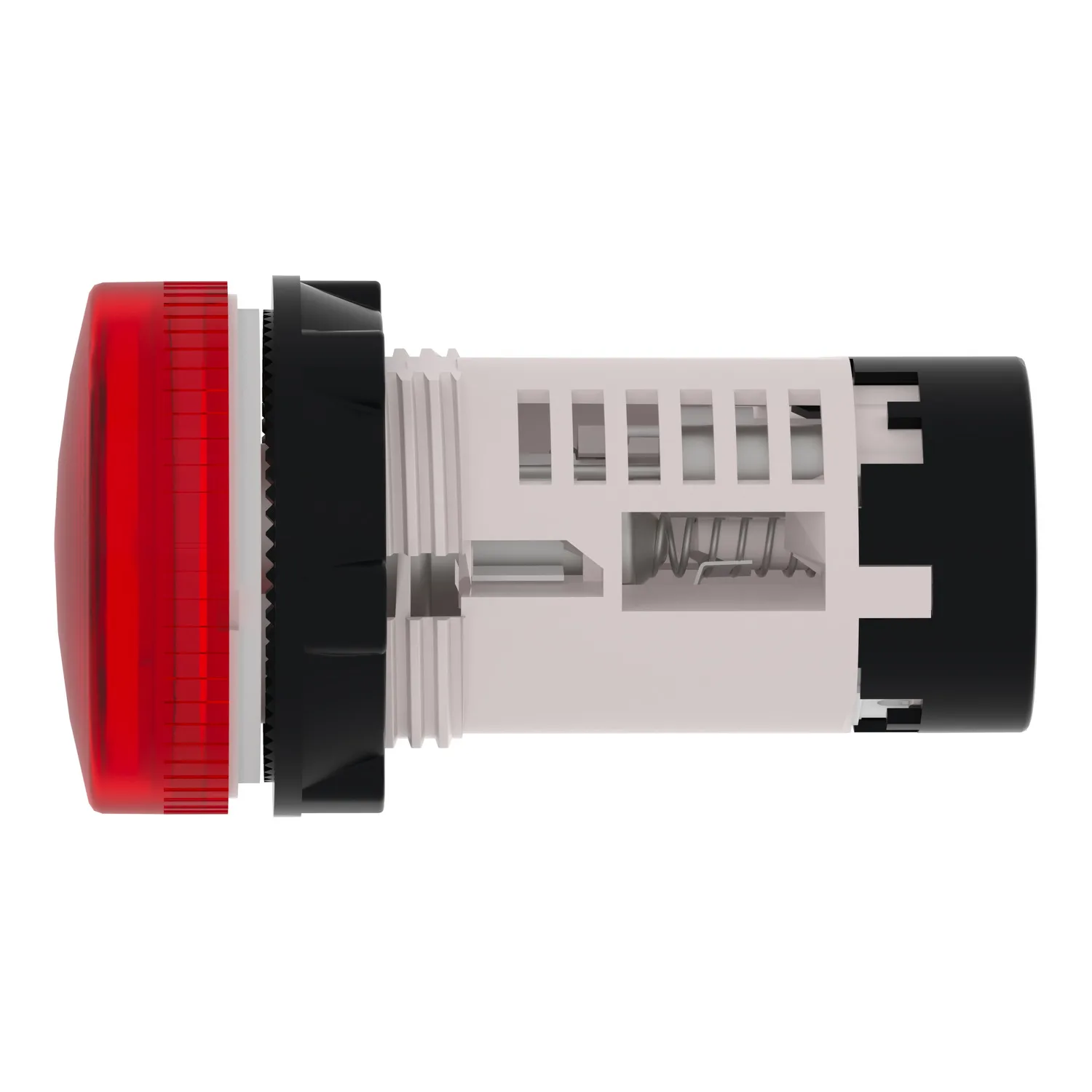

Monolithic pilot light, Harmony XB7, plastic, red, 22mm, plain lens for BA9s bulb, lt 250V
Schneider XB7EV64P, Monolithic pilot light, Harmony XB7, plastic, red, 22mm, plain lens for BA9s bulb, lt 250V. Category: Harmony XB7. In stock.
- Reference:XB7EV64P
- Manufacturer / Brand:Schneider
- Availability:In stock (11 pcs) ✅
- Price:5.30 EUR (Request a quote)
Key Specifications
- Range Of Product
- Harmony XB7
- Product Or Component Type
- Pilot light
- Device Short Name
- XB7
- Mounting Diameter
- 22 mm
Product Description
This Harmony XB7, monolithic red pilot light does not include bulb and is supplied with 250V AC, uses BA9s base and has screw-clamp terminals. It is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via BA9s base, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant thanks to its IP54, making it ideal for operation in low pressure environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Key Features
- Modular design allows flexible and simple setup for compatible product
- Wide availability throughout an extensive distribution network
- Strong robustness and harsh envrionment protection
- Full fonction solution fit to customer needs
Technical Specifications
Main8
| Range Of Product | Harmony XB7 |
|---|---|
| Product Or Component Type | Pilot light |
| Device Short Name | XB7 |
| Mounting Diameter | 22 mm |
| Sale Per Indivisible Quantity | 10 |
| Operator Additional Information | With plain lens |
| Light Source | Incandescent (bulb not included) |
| Device Presentation | Monolithic product |
Complementary21
| Height | 29 mm |
|---|---|
| Width | 29 mm |
| Depth | 54 mm |
| Terminals Description ISO N°1 | (X1-X2)PL |
| Net Weight | 0.018 kg |
| Overvoltage Category | Class II conforming to IEC 60536 |
| Device Mounting | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1 |
| Fixing Center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm; >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| Fixing Mode | Fixing nut beneath head: 2…2.4 N.m |
| Shape Of Signaling Unit Head | Round |
| Cap/operator Or Lens Colour | Red |
| Connections - Terminals | Faston connectors, connection size: 6.35 x 0.8 mm conforming to IEC 60947-1; Forked type tag connectors, connection size: 6.5 mm conforming to IEC 60947-1; Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Tightening Torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Shape Of Screw Head | Cross compatible with JIS No 1 screwdriver; Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] Rated Insulation Voltage | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to IEC 60947-1 |
| Signalling Type | Steady |
| Bulb Base | BA 9s |
| Light Block Supply | Direct |
| [Us] Rated Supply Voltage | <= 250 V |
| Compatibility Code | XB7 |
Environment9
| Protective Treatment | TH |
|---|---|
| Ambient Air Temperature For Storage | -40…70 °C |
| Ambient Air Temperature For Operation | -25…55 °C |
| IP Degree Of Protection | IP20 (rear face) conforming to IEC 60529; IP54 (front face) conforming to IEC 60529 |
| Enclosure Type | UL type 12 |
| Standards | IEC 60947-5-1; IEC 60947-1; JIS C8201-5-1; CSA C22.2 No 14; UL 508; JIS C8201-1 |
| Vibration Resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Electromagnetic Compatibility | Disturbing field emission class B conforming to IEC 55011 |
Packing Units18
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 3.000 cm |
| Package 1 Width | 3.000 cm |
| Package 1 Length | 5.200 cm |
| Package 1 Weight | 17.000 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 10 |
| Package 2 Height | 5.000 cm |
| Package 2 Width | 10.000 cm |
| Package 2 Length | 15.000 cm |
| Package 2 Weight | 174.000 g |
| Unit Type Of Package 3 | S01 |
| Number Of Units In Package 3 | 100 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 15.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 2.056 kg |
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
