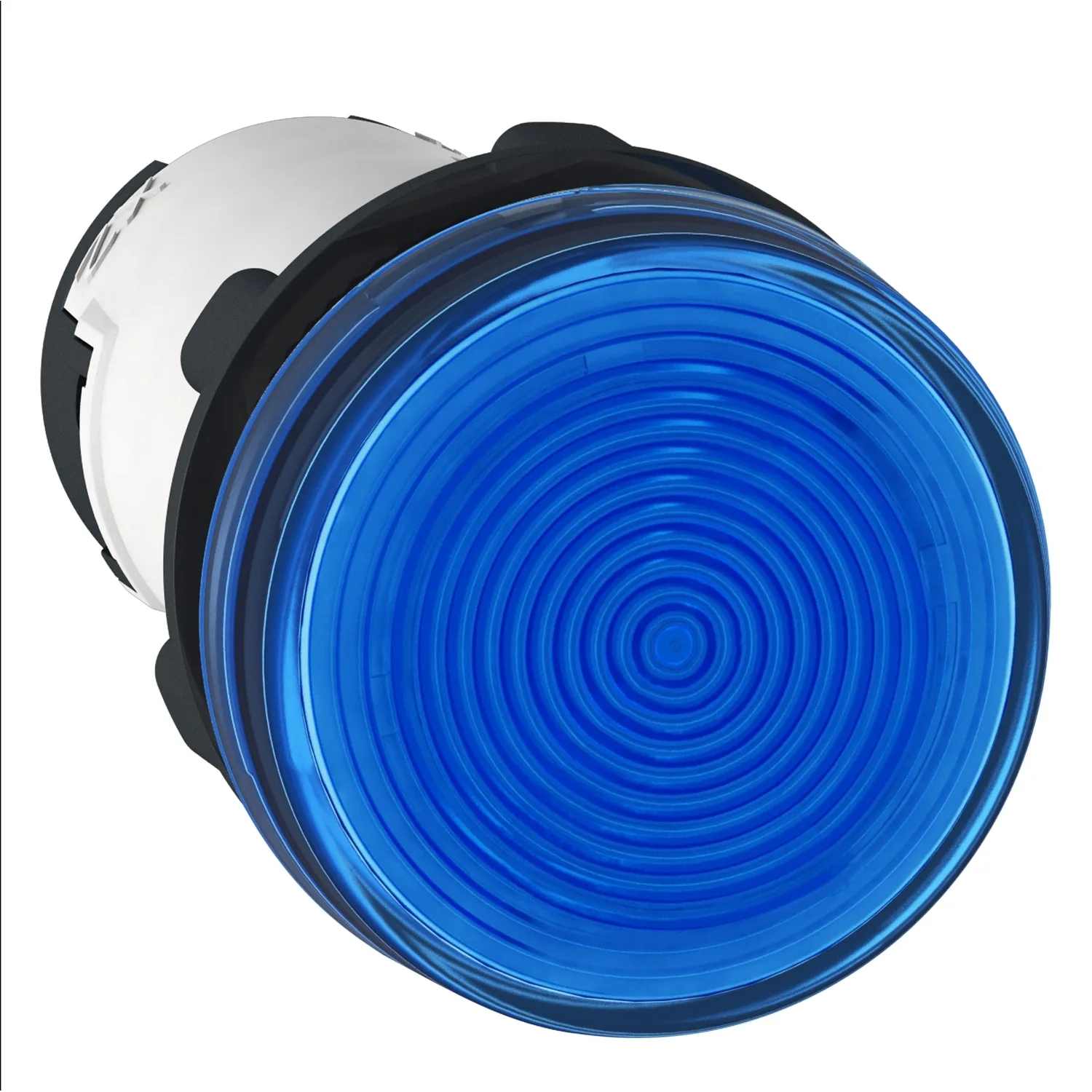

round pilot light Ø 22 - blue - BA 9s base - 230 V - screw clamp terminals
Schneider XB7EV760P, round pilot light Ø 22 - blue - BA 9s base - 230 V - screw clamp terminals. Category: Harmony XB7. Not for sale; no price or quote is offered for this product.
- Reference:XB7EV760P
- Manufacturer / Brand:Schneider
Key Specifications
- Range Of Product
- Harmony XB7
- Product Or Component Type
- Pilot light
- Device Short Name
- XB7
- Mounting Diameter
- 22 mm
Product Description
This Harmony XB7, monolithic blue pilot light does not include bulb and is supplied with 250V AC, uses BA9s base and has screw-clamp terminals. It is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via BA9s base, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant thanks to its IP54, making it ideal for operation in low pressure environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Technical Specifications
Main8
| Range Of Product | Harmony XB7 |
|---|---|
| Product Or Component Type | Pilot light |
| Device Short Name | XB7 |
| Mounting Diameter | 22 mm |
| Sale Per Indivisible Quantity | 10 |
| Operator Additional Information | With plain lens |
| Light Source | Incandescent (bulb not included) |
| Device Presentation | Monolithic product |
Complementary22
| Height | 29 mm |
|---|---|
| Width | 29 mm |
| Depth | 54 mm |
| Terminals Description ISO N°1 | (X1-X2)PL |
| Net Weight | 0.02 kg |
| Overvoltage Category | Class II conforming to IEC 60536 |
| Device Mounting | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-5-1 |
| Fixing Center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm; >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| Fixing Mode | Fixing nut beneath head: 2…2.4 N.m |
| Shape Of Signaling Unit Head | Round |
| Cap/operator Or Lens Colour | Blue |
| Connections - Terminals | Faston connectors, connection size: 6.35 x 0.8 mm conforming to EN/IEC 60947-1; Forked type tag connectors, connection size: 6.5 mm conforming to EN/IEC 60947-1; Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1; Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| Tightening Torque | 0.8…1.2 N.m conforming to EN 60947-1 |
| Shape Of Screw Head | Cross compatible with JIS No 1 screwdriver; Cross compatible with Philips no 1 screwdriver; Cross compatible with pozidriv No 1 screwdriver; Slotted compatible with flat Ø 4 mm screwdriver; Slotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] Rated Insulation Voltage | 250 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV conforming to EN/IEC 60947-1 |
| Signalling Type | Steady |
| Bulb Base | BA 9s |
| Light Block Supply | Direct through resistor <2.6 W 130 V |
| [Us] Rated Supply Voltage | 230 V AC at 50/60 Hz |
| Supply Voltage Limits | 195…264 V AC |
| Compatibility Code | XB7 |
Environment8
| Protective Treatment | TH |
|---|---|
| Ambient Air Temperature For Storage | -40…70 °C |
| Ambient Air Temperature For Operation | -25…55 °C |
| IP Degree Of Protection | IP20 (rear face) conforming to IEC 60529; IP54 (front face) conforming to IEC 60529 |
| Standards | CSA C22.2 No 14; UL 508; EN/IEC 60947-5-1; EN/IEC 60947-1; JIS C8201-5-1; JIS C8201-1 |
| Vibration Resistance | 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Electromagnetic Compatibility | Disturbing field emission class B conforming to EN 55011 |
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
