Telemecanique Sensors

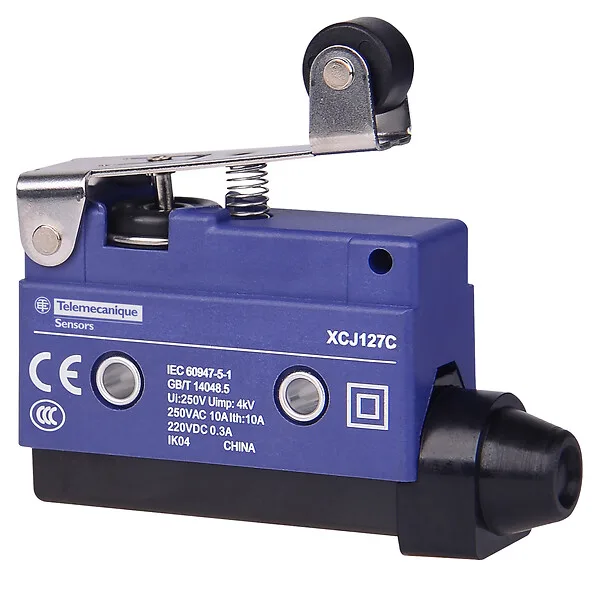

XCJ127C - XCJ Limit Switch
Telemecanique Sensors XCJ127C, XCJ Limit Switch. Category: Compact range. Request a quote for price and lead time.
- Reference:XCJ127C
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:21.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- OsiSense XC
- Series Name
- Basic
- Product Or Component Type
- Limit switch
- Product Specific Application
- Light to medium duty
Product Description
Telemecanique Sensors XCJ127C (XCJ Nihayet Şalteri). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main17
| Range Of Product | OsiSense XC |
|---|---|
| Series Name | Basic |
| Product Or Component Type | Limit switch |
| Product Specific Application | Light to medium duty |
| Device Short Name | XCJ |
| Body Type | Fixed |
| Head Type | Plunger head |
| Material | Plastic |
| Fixing Mode | By the body |
| Movement Of Operating Head | Linear |
| Type Of Operator | Roller lever plunger thermoplastic short and flat |
| Switch Actuation | By 30° cam |
| Type Of Approach | Lateral approach, 1 direction |
| Electrical Connection | Screw-clamp terminals |
| Cable Entry | 1 flexible rubber cable gland, cable outer diameter: 8.5-10.5 mm |
| Contact Operation | Snap action |
| Positive Opening | Without |
Complementary5
| Contacts Insulation Form | C |
|---|---|
| Operating Rate | 120 cycles/min |
| Contact Code Designation | A300, AC (Ue = 240 V), Ie = 10 A, Ithe = 10 A conforming to IEC 60947-5-1, R300, DC (Ue = 220 V), Ie = 0.3 A conforming to IEC 60947-5-1 |
| Resistance Across Terminals | 25 MOhm |
| Terminals Description ISO N°1 | (NO-NC-C)OF |
Environment6
| Shock Resistance | 10 gn for 11 ms conforming to IEC 60068-2-27 |
|---|---|
| Vibration Resistance | +/- 1.5 mm (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| IP Degree Of Protection | IP40 conforming to IEC 60529 |
| Electrical Shock Protection Class | Class II conforming to IEC 60947-5-1 |
| Marking | CCC, CE |
| Standards | GB 14048.5, IEC 60947-5-1 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 2 cm |
| Package 1 Width | 6.5 cm |
| Package 1 Length | 7 cm |
| Package 1 Weight | 63 g |
| Unit Type Of Package 2 | BB1 |
| Number Of Units In Package 2 | 10 |
| Package 2 Height | 8 cm |
| Package 2 Width | 8.5 cm |
| Package 2 Length | 22 cm |
| Package 2 Weight | 675 g |
| Unit Type Of Package 3 | S03 |
| Number Of Units In Package 3 | 150 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 10.529 kg |
| Indivisible Sale Quantity | 1 |
