Telemecanique Sensors

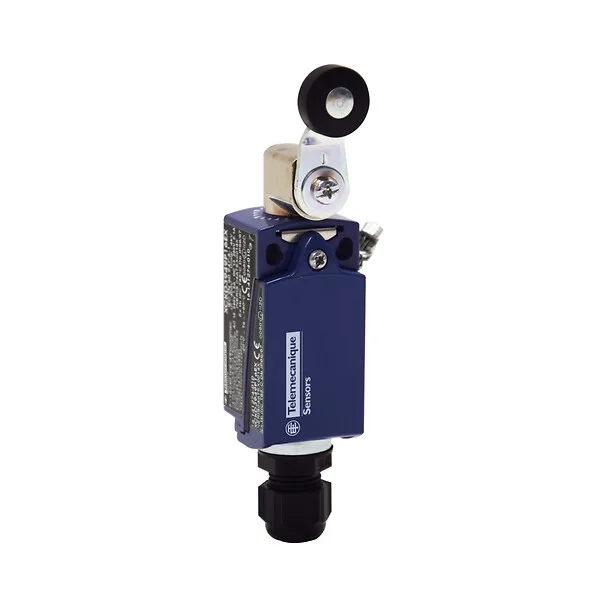

XCKD3918P16EX - ATEX COMPACT LIMIT SWITCH
Telemecanique Sensors XCKD3918P16EX, ATEX COMPACT LIMIT SWITCH. Category: XCKP / XCKT Light Duty Body & XCKD Heavy Duty Metal. Request a quote for price and lead time.
- Reference:XCKD3918P16EX
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:221.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Series Name
- Standard format
- Product Or Component Type
- Limit switch
- Device Short Name
- XCKD
Product Description
Telemecanique Sensors XCKD3918P16EX (ATEX COMPACT LIMIT SWITCH). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main19
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Series Name | Standard format |
| Product Or Component Type | Limit switch |
| Device Short Name | XCKD |
| Sensor Design | Compact |
| Body Type | Fixed |
| Head Type | Rotary head |
| Material | Metal |
| Fixing Mode | By the body |
| Movement Of Operating Head | Rotary |
| Type Of Operator | Spring return roller lever thermoplastic |
| Switch Actuation | By 30° cam |
| Type Of Approach | Lateral approach, 2 directions |
| Electrical Connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm² |
| Contacts Type And Composition | 2 NC + 1 NO |
| Contacts Insulation Form | Zb |
| Contact Operation | Snap action |
| Positive Opening | With |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529 |
Complementary6
| Body Material | Zamak |
|---|---|
| Head Material | Zamak |
| Tracks | 24/40 mm |
| Contact Code Designation | B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1, B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A |
| Resistance Across Terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Marking | II2 D-Ex tb IIIC T85°C Db IP66/67 |
Environment8
| Shock Resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
|---|---|
| Vibration Resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Electrical Shock Protection Class | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Protective Treatment | TC |
| Dust Zone | Zone 21 - 22 |
| Product Certifications | IEC-Ex INE 17.0020X, INERIS 04ATEX0014X |
| Standards | IEC 60079-0, IEC 60079-31 |
| Directives | 2014/34/EU - ATEX directive |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 9.7 cm |
| Package 1 Width | 9 cm |
| Package 1 Length | 15.8 cm |
| Package 1 Weight | 0.262 kg |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 6 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 1.9 kg |
| Unit Type Of Package 3 | S03 |
| Number Of Units In Package 3 | 10 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 3.097 kg |
| Indivisible Sale Quantity | 1 |
