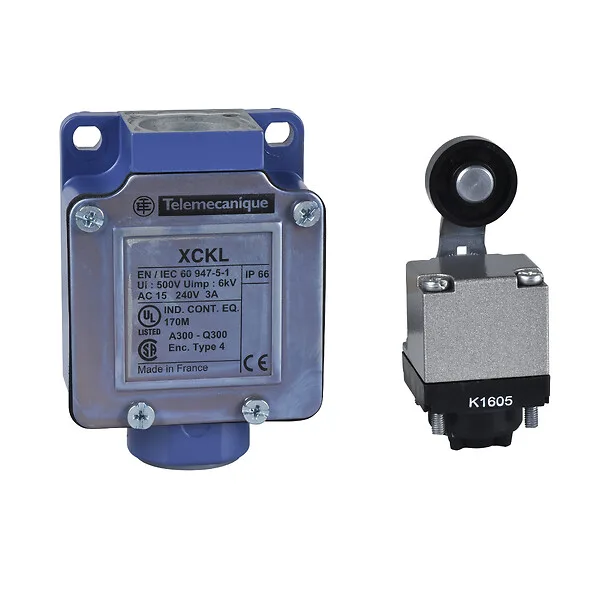

Name: XCKL115 - LIMIT SWITCH
Brand: Telemecanique Sensors
SKU: XCKL115
Price: 151.00 EUR
Availability: BackOrder

Telemecanique Sensors XCKL115, LIMIT SWITCH. Category: Standard size - up to 70 m. Request a quote for price and lead time.

Key Specifications

Product Description

Telemecanique Sensors XCKL115 (LIMIT SWITCH). Ask UC-EL Electric for a quote with the current price, stock and delivery details.

Main15

Range Of Product	Telemecanique Limit switches XC Standard
Series Name	Standard format
Product Or Component Type	Limit switch
Device Short Name	XCKL
Body Type	Fixed
Head Type	Rotary head
Material	Metal
Body Material	Zamak
Fixing Mode	By the body
Movement Of Operating Head	Rotary
Type Of Operator	Spring return roller lever thermoplastic
Type Of Approach	Lateral approach, 2 directions
Cable Entry	1 metal cable gland entry, cable outer diameter: 6-13.5 mm
Contacts Type And Composition	1 NC + 1 NO
Contact Operation	Snap action

Complementary7

Switch Actuation	By 30° cam
Electrical Connection	Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Contacts Insulation Form	Zb
Positive Opening	With
Contact Code Designation	A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Resistance Across Terminals	25 MOhm conforming to IEC 60255-7 category 3
Terminals Description ISO N°1	(13-14)NO, (21-22)NC

Environment8

Shock Resistance	50 gn for 11 ms conforming to IEC 60068-2-27
Vibration Resistance	25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP Degree Of Protection	IP66 conforming to IEC 60529
IK Degree Of Protection	IK05 conforming to IEC 62262
Electrical Shock Protection Class	Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective Treatment	TC
Standards	CSA C22.2 No 14, IEC 60204-1, IEC 60947-5-1, UL 508
Product Certifications	CSA, UL

Offer Sustainability1

California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Packing Units19
