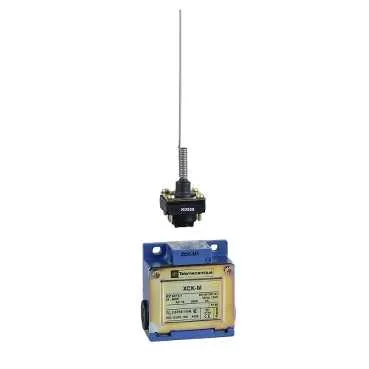

Telemecanique Sensors XCKM106 - Limit switch XCKM, cat's whisker, 1NC+1NO, snap action, Pg11 cable entry
Telemecanique Sensors

Limit switch XCKM, cat's whisker, 1NC+1NO, snap action, Pg11 cable entry

Telemecanique Sensors XCKM106, Limit switch XCKM, cat's whisker, 1NC+1NO, snap action, Pg11 cable entry. Category: XCKM / XCKL / XCKML Medium Duty Metal. In stock.

  • Reference:XCKM106
  • Manufacturer / Brand:Telemecanique Sensors
  • Availability:In stock (21 pcs) ✅
  • Price:51.00 EUR (Request a quote)
Get a Quote on WhatsApp

Key Specifications

Range Of Product
Telemecanique Limit switches XC Standard
Series Name
Standard format
Product Or Component Type
Limit switch
Device Short Name
XCKM
← Back to Catalogue

Product Description

Limit Switch Xckm - Cat Whisker - 1nc+1no - Snap Action - Pg11

Technical Specifications

Main15
Range Of ProductTelemecanique Limit switches XC Standard
Series NameStandard format
Product Or Component TypeLimit switch
Device Short NameXCKM
Body TypeFixed
Head TypeMulti-directional head
MaterialMetal
Body MaterialZamak
Fixing ModeBy the body
Movement Of Operating HeadMulti-directional
Type Of OperatorSpring return cat''s whisker
Type Of ApproachMulti-directional approach
Cable Entry3 entries tapped for Pg 11 cable gland
Contacts Type And Composition1 NC + 1 NO
Contact OperationSnap action
Complementary7
Switch ActuationBy any moving part
Electrical ConnectionScrew-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Contacts Insulation FormZb
Positive OpeningWithout
Contact Code DesignationA300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Resistance Across Terminals25 MOhm conforming to IEC 60255-7 category 3
Terminals Description ISO N°1(13-14)NO, (21-22)NC
Environment8
Shock Resistance50 gn for 11 ms conforming to IEC 60068-2-27
Vibration Resistance25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP Degree Of ProtectionIP66 conforming to IEC 60529
IK Degree Of ProtectionIK05 conforming to IEC 62262
Electrical Shock Protection ClassClass I conforming to IEC 61140, class I conforming to NF C 20-030
Protective TreatmentTC
StandardsCSA C22.2 No 14, IEC 60204-1, IEC 60947-5-1, UL 508
Product CertificationsCCC, CSA, UL
Packing Units19
Unit Type Of Package 1piece
Number Of Units In Package 11
Package 1 Height3.2 cm
Package 1 Width6.4 cm
Package 1 Length21.6 cm
Package 1 Weight0.27 kg
Unit Type Of Package 2S02
Number Of Units In Package 220
Package 2 Height15 cm
Unit Type Of Package 3carton
Package 2 Width30 cm
Number Of Units In Package 31
Package 2 Length40 cm
Package 3 Height6.7 cm
Package 2 Weight5.715 kg
Package 3 Width22 cm
Package 3 Length3.5 cm
Package 3 Weight0.263 kg
Indivisible Sale Quantity1
Offer Sustainability1
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Documents and Downloads

Documents are published by the manufacturer and open in a new tab.

Datasheets1
Leaflets2
Environmental Information3
Declarations3
CAD Drawings6
