Telemecanique Sensors

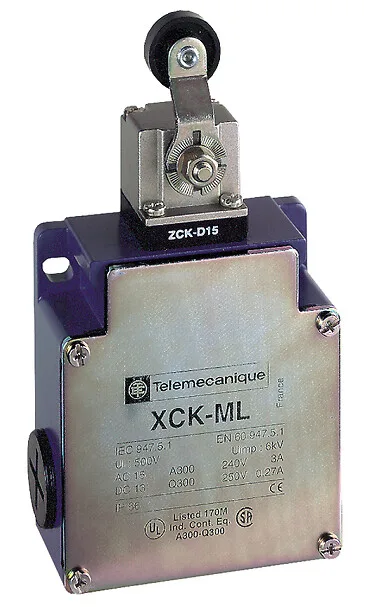

XCKML115 - LIMIT SWITCH 2 CONTACTS LEVER WITH ROLLER
Telemecanique Sensors XCKML115, LIMIT SWITCH 2 CONTACTS LEVER WITH ROLLER. Category: Standard size - up to 70 m. Request a quote for price and lead time.
- Reference:XCKML115
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:180.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Series Name
- Standard format
- Product Or Component Type
- Limit switch
- Device Short Name
- XCKML
Product Description
Telemecanique Sensors XCKML115 (LIMIT SWITCH 2 CONTACTS LEVIER @ GALET). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main15
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Series Name | Standard format |
| Product Or Component Type | Limit switch |
| Device Short Name | XCKML |
| Body Type | Fixed |
| Head Type | Rotary head |
| Material | Metal |
| Body Material | Zamak |
| Fixing Mode | By the body |
| Movement Of Operating Head | Rotary |
| Type Of Operator | Spring return roller lever thermoplastic |
| Type Of Approach | Lateral approach, 2 directions |
| Cable Entry | 3 entries tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm |
| Contacts Type And Composition | 2 x (1 NC + 1 NO) |
| Contact Operation | Snap action |
Complementary6
| Switch Actuation | By 30° cam |
|---|---|
| Electrical Connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Contacts Insulation Form | Zb |
| Positive Opening | With |
| Resistance Across Terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Terminals Description ISO N°1 | (13-14)NO, (21-22)NC |
Environment8
| Shock Resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
|---|---|
| Vibration Resistance | 25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP Degree Of Protection | IP66 conforming to IEC 60529 |
| IK Degree Of Protection | IK05 conforming to IEC 62262 |
| Electrical Shock Protection Class | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Protective Treatment | TC |
| Standards | CSA C22.2 No 14, IEC 60204-1, IEC 60947-5-1, UL 508 |
| Product Certifications | CSA, UL |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 9.1 cm |
| Package 1 Length | 15.2 cm |
| Package 1 Weight | 0.481 kg |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 20 |
| Package 2 Height | 30 cm |
| Unit Type Of Package 3 | carton |
| Package 2 Width | 30 cm |
| Number Of Units In Package 3 | 1 |
| Package 2 Length | 40 cm |
| Package 3 Height | 15.2 cm |
| Package 2 Weight | 9.916 kg |
| Package 3 Width | 5.5 cm |
| Package 3 Length | 9.1 cm |
| Package 3 Weight | 0.481 kg |
| Indivisible Sale Quantity | 1 |
Documents and Downloads
Documents are published by the manufacturer and open in a new tab.
Datasheets1
Catalogues2
Environmental Information3
Declarations2
CAD Drawings3
- metal with 2-pole contacts\complete units with 3 cable entries, for n°13 cable gland or M20 x 1,5\rotary head\thermoplastic roller lever (dxf)Opens in a new tab
- metal with 2-pole contacts\complete units with 3 cable entries, for n°13 cable gland or M20 x 1,5\rotary head\thermoplastic roller lever (wmf)Opens in a new tab
- metal with 2-pole contacts\complete units with 3 cable entries, for n°13 cable gland or M20 x 1,5\rotary head\thermoplastic roller lever (dxf)Opens in a new tab
