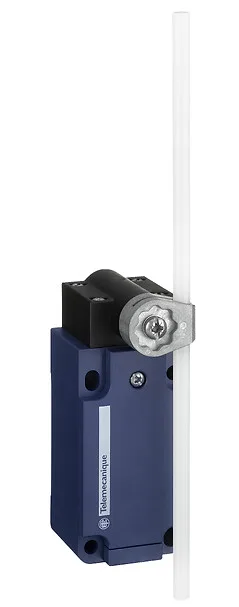

Name: XCKS159H29 - LIMIT SWITCH
Brand: Telemecanique Sensors
SKU: XCKS159H29
Price: 72.00 EUR
Availability: BackOrder

Telemecanique Sensors XCKS159H29, LIMIT SWITCH. Category: Standard size - up to 70 m. Request a quote for price and lead time.

Key Specifications

Product Description

Telemecanique Sensors XCKS159H29 (LIMIT SWITCH). Ask UC-EL Electric for a quote with the current price, stock and delivery details.

Main17

Range Of Product	Telemecanique Limit switches XC Standard
Series Name	Standard format
Product Or Component Type	Limit switch
Device Short Name	XCKS
Sensor Design	Form D conforming to CENELEC EN 50041
Body Type	Fixed
Head Type	Rotary head
Material	Plastic
Body Material	Plastic
Head Material	Plastic
Fixing Mode	By the body
Movement Of Operating Head	Rotary
Type Of Operator	Spring return round rod lever thermoplastic round rod 6 mm, L = 200 mm
Type Of Approach	Lateral approach, 1 or 2 programmable direction
Cable Entry	1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7-13 mm
Contacts Type And Composition	1 NC + 1 NO
Contact Operation	Snap action

Complementary7

Switch Actuation	By any moving part
Electrical Connection	Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Contacts Insulation Form	Zb
Positive Opening	Without
Contact Code Designation	A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Resistance Across Terminals	25 MOhm conforming to IEC 60255-7 category 3
Terminals Description ISO N°1	(13-14)NO, (21-22)NC

Environment9

Shock Resistance	40 gn for 11 ms conforming to IEC 60068-2-27
Vibration Resistance	25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP Degree Of Protection	IP67 conforming to IEC 60529, IP66 conforming to IEC 60529
IK Degree Of Protection	IK05 conforming to IEC 62262
Electrical Shock Protection Class	Class II conforming to IEC 61140, class II conforming to NF C 20-030
Overvoltage Category	Class II conforming to IEC 61140, class II conforming to NF C 20-030
Protective Treatment	TC
Product Certifications	CCC, CSA, UL
Standards	CENELEC EN 50041, CSA C22.2 No 14, IEC 60204-1, IEC 60947-5-1, UL 508

Offer Sustainability1

California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Packing Units19
