Telemecanique Sensors

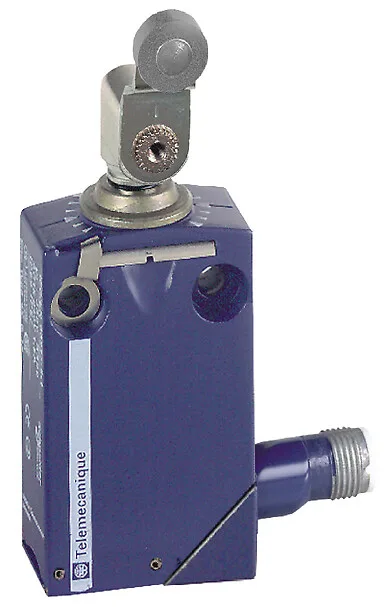

XCMD2126C12 - LIMIT SWITCH
Telemecanique Sensors XCMD2126C12, LIMIT SWITCH. Category: XCMD Heavy Duty Metal. Request a quote for price and lead time.
- Reference:XCMD2126C12
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:70.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Series Name
- Standard format
- Product Or Component Type
- Limit switch
- Device Short Name
- XCMD
Product Description
Telemecanique Sensors XCMD2126C12 (LIMIT SWITCH). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main16
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Series Name | Standard format |
| Product Or Component Type | Limit switch |
| Device Short Name | XCMD |
| Sensor Design | Miniature |
| Body Type | Plug-in body |
| Head Type | Rotary head |
| Material | Metal |
| Body Material | Zamak |
| Head Material | Zamak |
| Fixing Mode | By the body |
| Movement Of Operating Head | Rotary |
| Type Of Operator | Spring return roller lever metal |
| Type Of Approach | Lateral approach, 2 directions |
| Contacts Type And Composition | 1 NC + 1 NO |
| Contact Operation | Snap action |
Complementary6
| Tracks | 16/39 mm |
|---|---|
| Switch Actuation | By 30° cam |
| Electrical Connection | Male connector M12, 5 pins |
| Contacts Insulation Form | Zb |
| Positive Opening | With |
| Resistance Across Terminals | 25 mOhm conforming to IEC 60255-7 category 3 |
Environment8
| Shock Resistance | 25 gn for 18 ms conforming to IEC 60068-2-27 |
|---|---|
| Vibration Resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529, IP68 conforming to IEC 60529 |
| IK Degree Of Protection | IK06 conforming to EN 62262 |
| Electrical Shock Protection Class | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Protective Treatment | TC |
| Product Certifications | CCC, CSA, UL |
| Standards | CSA C22.2 No 14, EN/IEC 60204-1, EN/IEC 60947-5-1, UL 508 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units18
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 4.5 cm |
| Package 1 Width | 5.4 cm |
| Package 1 Length | 9.5 cm |
| Package 1 Weight | 0.134 kg |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 50 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 63.6 kg |
| Unit Type Of Package 3 | S03 |
| Number Of Units In Package 3 | 24 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Indivisible Sale Quantity | 1 |
