Telemecanique Sensors

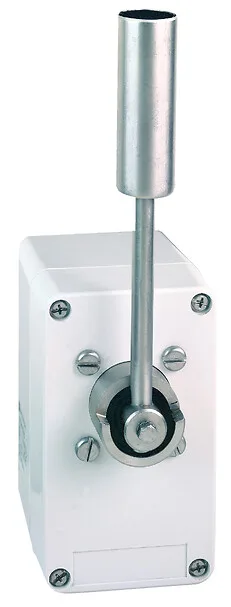

XCRT315 - LIMIT SWITCH XCRT LEVER WITH DRUM 2 OC
Telemecanique Sensors XCRT315, LIMIT SWITCH XCRT LEVER WITH DRUM 2 OC. Category: Standard size - up to 70 m. Request a quote for price and lead time.
- Reference:XCRT315
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:996.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- OsiSense XC
- Series Name
- Special format
- Product Or Component Type
- Limit switch
- Product Specific Application
- For conveyor belt shift monitoring
Product Description
Telemecanique Sensors XCRT315 (LIMIT SWITCH XCRT LEVER WITH DRUM 2 OC). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main17
| Range Of Product | OsiSense XC |
|---|---|
| Series Name | Special format |
| Product Or Component Type | Limit switch |
| Product Specific Application | For conveyor belt shift monitoring |
| Device Short Name | XCRT |
| Body Type | Fixed |
| Head Type | Rotary head |
| Material | Polyester |
| Fixing Mode | By the body |
| Movement Of Operating Head | Rotary |
| Type Of Operator | Spring return roller stainless steel with lever |
| Type Of Approach | Lateral approach, 2 directions |
| Electrical Connection | Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm² |
| Contacts Type And Composition | 2 C/O |
| Contact Operation | Snap action |
| Contact Block Per Direction [control Circuit] | 2 per direction |
| Positive Opening | Without |
Complementary7
| Body Material | Polyester |
|---|---|
| Switch Actuation | By conveyor belt |
| Cable Entry | 1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm conforming to NF C 68-300 |
| Contacts Insulation Form | Za |
| Contact Code Designation | A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A |
| Resistance Across Terminals | 25 MOhm conforming to IEC 60255-7 category 3 |
| Terminals Description ISO N°1 | (11-12)NC, (13-14)NO |
Environment6
| Shock Resistance | 30 gn for 18 ms conforming to IEC 60068-2-27 |
|---|---|
| Vibration Resistance | 9 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| IP Degree Of Protection | IP65 conforming to IEC 60529 |
| Overvoltage Category | Class I conforming to IEC 61140, class I conforming to NF C 20-030 |
| Protective Treatment | TC |
| Standards | CSA C22.2 No 14, IEC 60204-1, IEC 60947-5-1, NF C 79-130 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 12.3 cm |
| Package 1 Width | 9 cm |
| Package 1 Length | 31.5 cm |
| Package 1 Weight | 1.614 kg |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 6 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 10.18 kg |
| Unit Type Of Package 3 | carton |
| Number Of Units In Package 3 | 1 |
| Package 3 Height | 31.5 cm |
| Package 3 Width | 12.3 cm |
| Package 3 Length | 9 cm |
| Package 3 Weight | 1.617 kg |
| Indivisible Sale Quantity | 1 |
