Name: XCSA523 - METAL LIMIT SWITCH NO LOC
Brand: Telemecanique Sensors
SKU: XCSA523
Price: 200.00 EUR
Availability: BackOrder

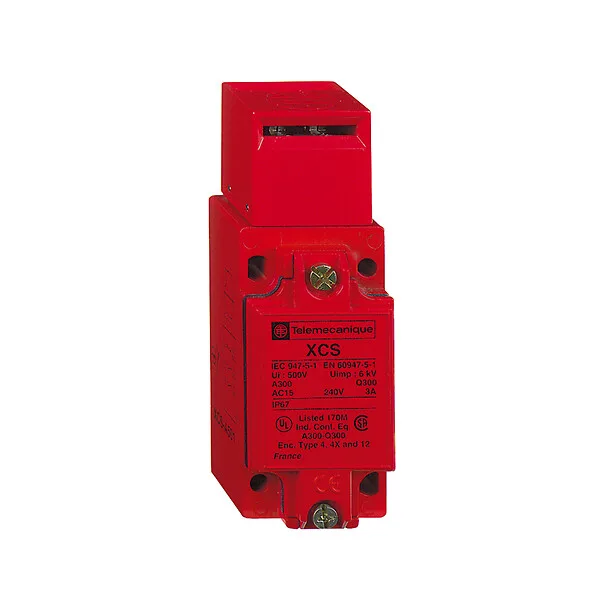

Telemecanique Sensors XCSA523, METAL LIMIT SWITCH NO LOC. Category: Standard size - up to 70 m. Request a quote for price and lead time.

Key Specifications

Product Description

Telemecanique Sensors XCSA523 (METAL LIMIT SWITCH NO LOC). Ask UC-EL Electric for a quote with the current price, stock and delivery details.

Main13

Range Of Product	Telemecanique Safety switches XCS
Product Or Component Type	Safety switch
Component Name	XCSA
Design	Industrial
Material	Metal
Head Type	Key operated turret head
Contacts Type And Composition	1 NC + 2 NO
Contact Operation	Slow-break, break before make
Cable Entry	1 entry tapped for 1/2" NPT
Electrical Connection	Terminal, clamping capacity: 1 x 0.5...2 x 1.5 mm² with or without cable end
Locking Options Description	Without locking of actuator
Local Signalling	1 LED (orange) for on opening of NC contacts
Signalling Circuit Voltage	110/240 V

Complementary8

Positive Opening	With NC contact
Signalling Circuit Type	AC
Actuator Force For Extraction	20 NEWTON
Operating Rate	10 cyc/mn for maximum durability
Safety Level	Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508
Safety Reliability Data	B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
Body Material	Zamak
Head Material	Zamak

Environment7

Standards	CSA C22.2 No 14, EN 1088/ISO 14119, IEC 60204-1, IEC 60947-5-1, ISO 12100, UL 508
Product Certifications	CSA, UL
Protective Treatment	TC
Vibration Resistance	5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock Resistance	10 gn for 11 ms conforming to IEC 60068-2-27
Electrical Shock Protection Class	Class I conforming to IEC 61140
IP Degree Of Protection	IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

Offer Sustainability1

California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Packing Units7
