Telemecanique Sensors

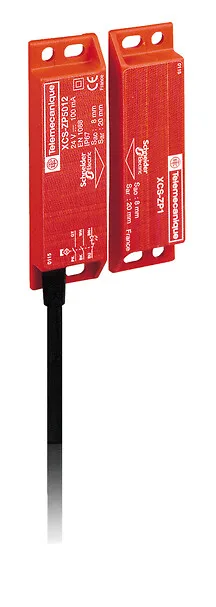

XCSDMP7005 - SHORT MAGNETIC SAFETY SW
Telemecanique Sensors XCSDMP7005, SHORT MAGNETIC SAFETY SW. Category: Coded magnetic switches. Request a quote for price and lead time.
- Reference:XCSDMP7005
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:127.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Safety switches XCS
- Product Or Component Type
- Coded magnetic switch
- Component Name
- XCSDMP
- Design
- Rectangular, standard
Product Description
Telemecanique Sensors XCSDMP7005 (SHORT MAGNETIC SAFETY SW). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main12
| Range Of Product | Telemecanique Safety switches XCS |
|---|---|
| Product Or Component Type | Coded magnetic switch |
| Component Name | XCSDMP |
| Design | Rectangular, standard |
| Size | 88 x 25 x 13 mm |
| Contacts Type And Composition | 2 NC + 1 NO |
| Contact Operation | 1 NC staggered |
| Material | Plastic |
| Electrical Connection | Pre-cabled |
| Cable Composition | 6 x 0.25 mm² |
| Approach Directions | 3 directions |
| [Ue] Rated Operational Voltage | 24 V DC |
Complementary9
| [Ie] Rated Operational Current | 100 MILLIAMPERE |
|---|---|
| Contacts Material | Rhodium |
| Switching Capacity In MA | 0.1...100 mA |
| Insulation Resistance | 1000 MOhm |
| Switching Frequency | 150 Hz |
| Safety Level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Safety Reliability Data | B10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Enclosure Material | Thermoplastic PBT |
| Cable Material | PVC |
Environment8
| Standards | CSA C22.2 No 14, IEC 60204-1, IEC 60947-5-1, ISO 12100, ISO 14119, UL 508 |
|---|---|
| Product Certifications | CSA, UL |
| Protective Treatment | TH |
| Vibration Resistance | 10 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 30 gn for 11 ms conforming to IEC 60068-2-27 |
| Sensitivity To Magnetic Fields | 0.3 MILLITESLA |
| Electrical Shock Protection Class | Class II conforming to IEC 61140 |
| IP Degree Of Protection | IP66 conforming to IEC 60529, IP67 conforming to IEC 60529 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 4.9 cm |
| Package 1 Width | 23.4 cm |
| Package 1 Length | 29.2 cm |
| Package 1 Weight | 0.342 kg |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 14 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 5.15 kg |
| Unit Type Of Package 3 | P06 |
| Number Of Units In Package 3 | 224 |
| Package 3 Height | 77 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 60 cm |
| Package 3 Weight | 90.9 kg |
| Indivisible Sale Quantity | 1 |
