Telemecanique Sensors

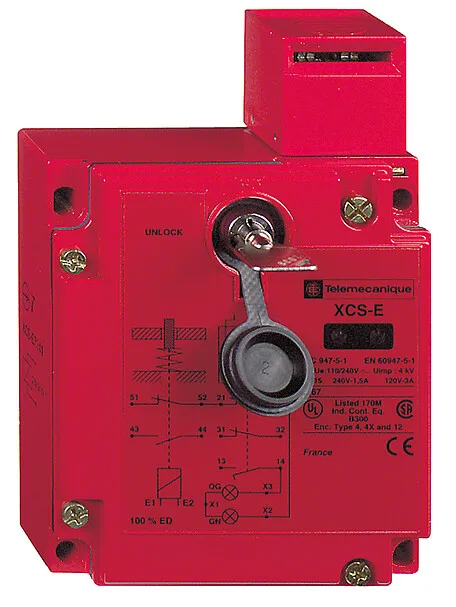

XCSE7331 - Safety limit switch XCSE
Telemecanique Sensors XCSE7331, Safety limit switch XCSE. Category: Standard size - up to 70 m. Request a quote for price and lead time.
- Reference:XCSE7331
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:445.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Safety switches XCS
- Product Or Component Type
- Safety switch
- Component Name
- XCSE
- Design
- Rectangular
Product Description
Telemecanique Sensors XCSE7331 (LIMIT SWITCH FOR SAFETY APPLICATION XCSE). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main14
| Range Of Product | Telemecanique Safety switches XCS |
|---|---|
| Product Or Component Type | Safety switch |
| Component Name | XCSE |
| Design | Rectangular |
| Material | Metal |
| Head Type | Key operated turret head |
| Contacts Type And Composition | 2 NC + 1 NO |
| Solenoid Contacts Type And Composition | 1 NC + 1 NO (slow-break, simultaneous) |
| Cable Entry | 2 entries tapped for Pg 13.5 |
| Electromagnet Interlocking | Locking on de-energisation and unlocking on energisation of solenoid |
| [Us] Rated Supply Voltage | 110/120 V - 20...10 % |
| Electrical Connection | Terminal, clamping capacity: 1 x 0.5...2 x 1.5 mm² with or without cable end |
| Local Signalling | 2 LEDs (green or orange) for guard open/guard closed and locked |
| Signalling Circuit Voltage | 110/240 V (voltage limits: 95...264 V) |
Complementary13
| Contact Operation | Slow-break, break before make |
|---|---|
| Locking Options Description | With interlocking, locking by solenoid |
| Positive Opening | With NC contact |
| Supply Voltage Type | AC/DC |
| Supply Frequency | 50/60 Hz |
| Signalling Circuit Type | AC |
| Protection Type | Overvoltage protection for signalling circuit |
| Actuator Force For Extraction | 20 NEWTON |
| Operating Rate | 10 cyc/mn for maximum durability |
| Safety Level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Safety Reliability Data | B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Body Material | Zamak |
| Head Material | Zamak |
Environment7
| Standards | CSA C22.2 No 14, EN 1088/ISO 14119, IEC 60204-1, IEC 60947-5-1, ISO 12100, UL 508 |
|---|---|
| Product Certifications | CSA, UL |
| Protective Treatment | TC |
| Vibration Resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 10 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical Shock Protection Class | Class I conforming to IEC 61140 |
| IP Degree Of Protection | IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units18
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 5.7 cm |
| Package 1 Width | 11.3 cm |
| Package 1 Length | 15.5 cm |
| Package 1 Weight | 1.311 kg |
| Unit Type Of Package 2 | S01 |
| Number Of Units In Package 2 | 4 |
| Package 2 Height | 15 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 5.439 kg |
| Unit Type Of Package 3 | S02 |
| Number Of Units In Package 3 | 4 |
| Package 3 Height | 15 cm |
| Package 3 Width | 30 cm |
| Indivisible Sale Quantity | 1 |
| Package 3 Length | 40 cm |
Documents and Downloads
Documents are published by the manufacturer and open in a new tab.
Datasheets1
Environmental Information3
Declarations4
- XCSA/B/C/D/E/M/MP/P/PA/PL/PR/TA/TE/TR... safety switches - EC/EU declaration of conformityOpens in a new tab
- XCSA/B/C/D/E/M/MP/P/PA/PL/PR/TA/TE/TR... safety switches - UK declaration of conformityOpens in a new tab
- XCSE... safety interlock switches - EC/EU declaration of conformityOpens in a new tab
- XCSE... safety interlock switches - UK declaration of conformityOpens in a new tab
