Telemecanique Sensors

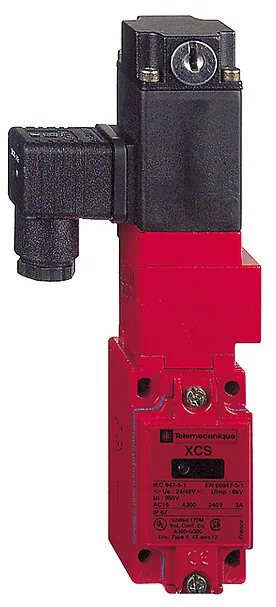

XCSL761B2 - LIMIT SWITCH
Telemecanique Sensors XCSL761B2, LIMIT SWITCH. Category: Key operated switches with solenoid. Request a quote for price and lead time.
- Reference:XCSL761B2
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:840.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Safety switches XCS
- Product Or Component Type
- Safety switch
- Component Name
- XCSL
- Head Type
- Key operated turret head
Product Description
Telemecanique Sensors XCSL761B2 (LIMIT SWITCH). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main4
| Range Of Product | Telemecanique Safety switches XCS |
|---|---|
| Product Or Component Type | Safety switch |
| Component Name | XCSL |
| Head Type | Key operated turret head |
Complementary7
| Supply Voltage Type | AC/DC |
|---|---|
| Supply Frequency | 50/60 Hz |
| Positive Opening | With NC contact |
| Maximum Load Current | <= 15 A |
| Protection Type | Overvoltage protection for signalling circuit |
| Operating Rate | 10 cyc/mn for maximum durability |
| Safety Level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
Environment2
| Protective Treatment | TC |
|---|---|
| Electrical Shock Protection Class | Class I conforming to IEC 60536 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 5.2 cm |
| Package 1 Width | 6.2 cm |
| Package 1 Length | 28 cm |
| Package 1 Weight | 0.965 kg |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 10 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 9.866 kg |
| Unit Type Of Package 3 | carton |
| Number Of Units In Package 3 | 1 |
| Package 3 Height | 28 cm |
| Package 3 Width | 5.2 cm |
| Package 3 Length | 6.2 cm |
| Package 3 Weight | 0.965 kg |
| Indivisible Sale Quantity | 1 |
