Telemecanique Sensors XCSP3918P20 - LIMIT SWITCH FOR SAFETY APPLICATION XCSP
Telemecanique Sensors

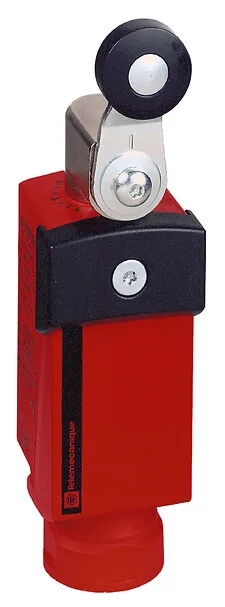

XCSP3918P20 - LIMIT SWITCH FOR SAFETY APPLICATION XCSP

Telemecanique Sensors XCSP3918P20, LIMIT SWITCH FOR SAFETY APPLICATION XCSP. Category: Standard size - up to 70 m. Request a quote for price and lead time.

  • Reference:XCSP3918P20
  • Manufacturer / Brand:Telemecanique Sensors
  • Availability:On Request / Inquire Stock
  • Price:137.00 EUR (Request a quote)
Get a Quote on WhatsApp

Key Specifications

Range Of Product
Telemecanique Safety switches XCS
Product Or Component Type
Safety limit switch
Component Name
XCSP
Design
Compact
← Back to Catalogue

Product Description

Telemecanique Sensors XCSP3918P20 (LIMIT SWITCH FOR SAFETY APPLICATION XCSP). Ask UC-EL Electric for a quote with the current price, stock and delivery details.

Technical Specifications

Main11
Range Of ProductTelemecanique Safety switches XCS
Product Or Component TypeSafety limit switch
Component NameXCSP
DesignCompact
MaterialPlastic
Head TypeRotary head
Protection TechnologyPlastic protective cover, secured by 5-lobe socket head safety screw
Type Of OperatorThermoplastic roller lever
Contact OperationSnap action
Contacts Type And Composition1 NC + 1 NC + 1 NO
Cable Entry1 entry tapped for M20 x 1.5
Complementary12
Electrical ConnectionTerminal
Clamping Connection Capacity1 x 0.34...2 x 0.75 mm²
Positive OpeningWith NC contact
Switch ActuationBy 30° cam
Contact Code DesignationB300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to IEC 60947-5-1 appendix A
Resistance Across Terminals25 MOhm conforming to IEC 60255-7 category 3
Repeat Accuracy0.1 mm on tripping points, 1 million operating cycles for head with end plunger
Enclosure MaterialPlastic
Safety LevelCan reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508
Body MaterialPlastic
Head MaterialZamak
Safety Reliability DataB10d = 50000000 value given for a life time of 20 years limited by mechanical or contact wear
Environment8
Protective TreatmentTC
Product CertificationsCSA, UL
Electrical Shock Protection ClassClass II
StandardsCSA C22.2 No 14, EN 1088/ISO 14119, IEC 60204-1, IEC 60947-5-1, UL 508
Vibration Resistance25 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock Resistance50 gn for 11 ms conforming to IEC 60068-2-27
IK Degree Of ProtectionIK04 conforming to IEC 62262
IP Degree Of ProtectionIP66 conforming to IEC 60529, IP67 conforming to IEC 60529
Offer Sustainability1
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Packing Units19
Unit Type Of Package 1piece
Number Of Units In Package 11
Package 1 Height3.4 cm
Package 1 Width4.9 cm
Package 1 Length13 cm
Package 1 Weight0.139 kg
Unit Type Of Package 2S01
Number Of Units In Package 221
Package 2 Height15 cm
Package 2 Width15 cm
Package 2 Length40 cm
Package 2 Weight3.128 kg
Unit Type Of Package 3carton
Number Of Units In Package 31
Package 3 Height13.2 cm
Package 3 Width3.3 cm
Package 3 Length5 cm
Package 3 Weight0.141 kg
Indivisible Sale Quantity1

Documents and Downloads

Documents are published by the manufacturer and open in a new tab.

Datasheets1
Catalogues2
Leaflets3
Instructions1
Environmental Information3
Declarations4
CAD Drawings6
