Telemecanique Sensors

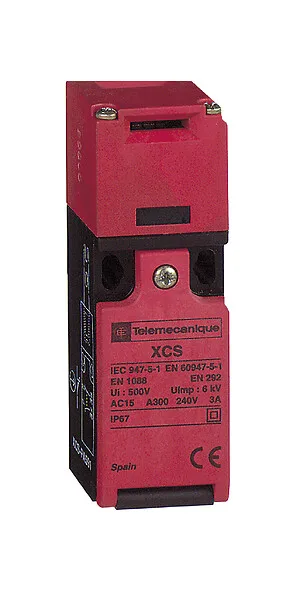

XCSPA991 - PLASTIC SAFETY SWITCH NO LOCKING
Telemecanique Sensors XCSPA991, PLASTIC SAFETY SWITCH NO LOCKING. Category: Standard size - up to 70 m. Request a quote for price and lead time.
- Reference:XCSPA991
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:90.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Safety switches XCS
- Product Or Component Type
- Safety switch
- Component Name
- XCSPA
- Design
- Compact
Product Description
Telemecanique Sensors XCSPA991 (PLAST SAFE SWITCH NO LOC). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main11
| Range Of Product | Telemecanique Safety switches XCS |
|---|---|
| Product Or Component Type | Safety switch |
| Component Name | XCSPA |
| Design | Compact |
| Material | Plastic |
| Head Type | Key operated turret head |
| Contacts Type And Composition | 2 NC + 1 NO |
| Contact Operation | Slow-break, break before make |
| Cable Entry | 1 entry tapped for Pg 11 |
| Electrical Connection | Terminal, clamping capacity: 1 x 0.34...2 x 0.75 mm² |
| Locking Options Description | Without locking of actuator |
Complementary7
| Insulation | Double insulated |
|---|---|
| Positive Opening | With NC contact |
| Operating Rate | 10 cyc/mn for maximum durability |
| Safety Level | Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508 |
| Safety Reliability Data | B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear |
| Body Material | PA (polyamide) |
| Head Material | PA (polyamide) |
Environment7
| Standards | CSA C22.2 No 14, EN 1088/ISO 14119, IEC 60204-1, IEC 60947-5-1, ISO 12100, UL 508 |
|---|---|
| Product Certifications | CSA, UL |
| Protective Treatment | TC |
| Vibration Resistance | 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 10 gn for 11 ms conforming to IEC 60068-2-27 |
| Electrical Shock Protection Class | Class II conforming to IEC 61140 |
| IP Degree Of Protection | IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 3.5 cm |
| Package 1 Width | 13 cm |
| Package 1 Length | 5 cm |
| Package 1 Weight | 0.114 kg |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 60 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 7.232 kg |
| Unit Type Of Package 3 | carton |
| Number Of Units In Package 3 | 1 |
| Package 3 Height | 5 cm |
| Package 3 Width | 3.5 cm |
| Package 3 Length | 13 cm |
| Package 3 Weight | 0.115 kg |
| Indivisible Sale Quantity | 1 |
