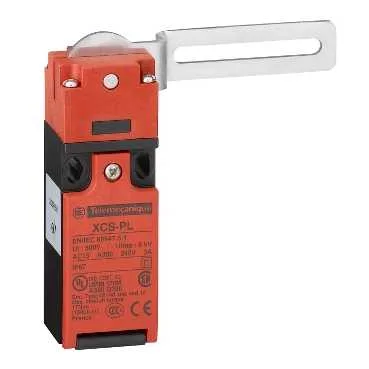

Telemecanique Sensors XCSPL771 - Safety switch XCSPL, 2NC, Pg11, rotary lever, hinge
Telemecanique Sensors

Safety switch XCSPL, 2NC, Pg11, rotary lever, hinge

Telemecanique Sensors XCSPL771, Safety switch XCSPL, 2NC, Pg11, rotary lever, hinge. Category: Lever or spindle operator switches. Request a quote for price and lead time.

  • Reference:XCSPL771
  • Manufacturer / Brand:Telemecanique Sensors
  • Availability:On Request / Inquire Stock
  • Price:104.00 EUR (Request a quote)
Get a Quote on WhatsApp

Key Specifications

Range Of Product
Telemecanique Safety switches XCS
Product Or Component Type
Guard switch
Component Name
XCSPL
Material
Plastic
← Back to Catalogue

Product Description

The Telemecanique Sensors Preventa series XCSPL771 guard switch is constructed with a plastic housing and a stainless steel lever. Featuring a 1 NC + 1 NC contact arrangement, this switch offers a reliable solution for industrial safety applications. You can request a current price quote from UC-EL Electric.

Technical Specifications

Main13
Range Of ProductTelemecanique Safety switches XCS
Product Or Component TypeGuard switch
Component NameXCSPL
MaterialPlastic
Head TypeTurret head rotary lever
InsulationDouble insulated
Type Of OperatorElbowed flush lever
Operator Direction InformationTo right
Electrical ConnectionTerminal
Contacts Type And Composition1 NC + 1 NC
Contact OperationSlow-break
Clamping Connection Capacity1 x 0.5...2 x 1.5 mm² with or without cable end
Cable Entry1 entry tapped for Pg 11
Complementary7
Positive OpeningWith NC contact
Contact Code DesignationA300, AC-15 (Ue = 120 V, Ie = 6 A) conforming to IEC 60947-5-1, A300, AC-15 (Ue = 240 V, Ie = 3 A) conforming to IEC 60947-5-1, Q300, DC-13 (Ue = 125 V, Ie = 0.55 A) conforming to IEC 60947-5-1, Q300, DC-13 (Ue = 250 V, Ie = 0.27 A) conforming to IEC 60947-5-1
Resistance Across Terminals30 mOhm conforming to IEC 60947-5-4
Safety LevelCan reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508
Safety Reliability DataB10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
Enclosure MaterialPolyamide PA66 fibre glass impregnated
Lever MaterialStainless steel
Environment7
StandardsCSA C22.2 No 14, EN 1088/ISO 14119, IEC 60204-1, IEC 60947-5-1, IEC 60947-5-4, ISO 12100, UL 508
Product CertificationsBG, CSA, UL
Protective TreatmentTC, TH
Vibration Resistance50 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock Resistance50 gn for 11 ms conforming to IEC 60068-2-27
Electrical Shock Protection ClassClass II conforming to IEC 61140
IP Degree Of ProtectionIP67 conforming to IEC 60529
Packing Units19
Unit Type Of Package 1piece
Number Of Units In Package 11
Package 1 Height3.2 cm
Package 1 Width20 cm
Package 1 Length3.8 cm
Package 1 Weight0.128 kg
Unit Type Of Package 2S02
Number Of Units In Package 244
Package 2 Height15 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight5.944 kg
Unit Type Of Package 3carton
Number Of Units In Package 31
Package 3 Height3.8 cm
Package 3 Width3.2 cm
Package 3 Length20 cm
Package 3 Weight0.128 kg
Indivisible Sale Quantity1
Offer Sustainability1
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Documents and Downloads

Documents are published by the manufacturer and open in a new tab.

Datasheets1
Leaflets3
Instructions1
Environmental Information3
Declarations4
CAD Drawings3
