Telemecanique Sensors XCSPL782 - LIMIT SWITCH FOR SAFETY APPLICATION XCSP
Telemecanique Sensors

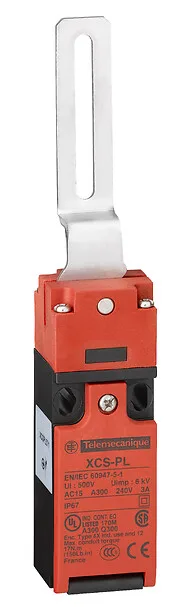

XCSPL782 - LIMIT SWITCH FOR SAFETY APPLICATION XCSP

Telemecanique Sensors XCSPL782, LIMIT SWITCH FOR SAFETY APPLICATION XCSP. Category: Lever or spindle operator switches. Request a quote for price and lead time.

  • Reference:XCSPL782
  • Manufacturer / Brand:Telemecanique Sensors
  • Availability:On Request / Inquire Stock
  • Price:104.00 EUR (Request a quote)
Get a Quote on WhatsApp

Key Specifications

Range Of Product
Telemecanique Safety switches XCS
Product Or Component Type
Guard switch
Component Name
XCSPL
Material
Plastic
← Back to Catalogue

Product Description

Telemecanique Sensors XCSPL782 (LIMIT SWITCH FOR SAFETY APPLICATION XCSP). Ask UC-EL Electric for a quote with the current price, stock and delivery details.

Technical Specifications

Main13
Range Of ProductTelemecanique Safety switches XCS
Product Or Component TypeGuard switch
Component NameXCSPL
MaterialPlastic
Head TypeTurret head rotary lever
InsulationDouble insulated
Type Of OperatorElbowed flush lever
Operator Direction InformationCentred
Electrical ConnectionTerminal
Contacts Type And Composition1 NC + 1 NC
Contact OperationSlow-break
Clamping Connection Capacity1 x 0.5...2 x 1.5 mm² with or without cable end
Cable Entry1 entry tapped for M16 x 1.5
Complementary7
Positive OpeningWith NC contact
Contact Code DesignationA300, AC-15 (Ue = 120 V, Ie = 6 A) conforming to IEC 60947-5-1, A300, AC-15 (Ue = 240 V, Ie = 3 A) conforming to IEC 60947-5-1, Q300, DC-13 (Ue = 125 V, Ie = 0.55 A) conforming to IEC 60947-5-1, Q300, DC-13 (Ue = 250 V, Ie = 0.27 A) conforming to IEC 60947-5-1
Resistance Across Terminals30 mOhm conforming to IEC 60947-5-4
Safety LevelCan reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to IEC 61508
Safety Reliability DataB10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
Enclosure MaterialPolyamide PA66 fibre glass impregnated
Lever MaterialStainless steel
Environment7
StandardsCSA C22.2 No 14, EN 1088/ISO 14119, IEC 60204-1, IEC 60947-5-1, IEC 60947-5-4, ISO 12100, UL 508
Product CertificationsBG, CSA, UL
Protective TreatmentTC, TH
Vibration Resistance50 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock Resistance50 gn for 11 ms conforming to IEC 60068-2-27
Electrical Shock Protection ClassClass II conforming to IEC 61140
IP Degree Of ProtectionIP67 conforming to IEC 60529
Offer Sustainability1
California Proposition 65WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Packing Units13
Unit Type Of Package 1piece
Number Of Units In Package 11
Package 1 Height3.2 cm
Package 1 Width20 cm
Package 1 Length3.8 cm
Package 1 Weight0.129 kg
Unit Type Of Package 2S01
Number Of Units In Package 212
Package 2 Height15 cm
Package 2 Width15 cm
Package 2 Length40 cm
Package 2 Weight1.769 kg
Indivisible Sale Quantity1

Documents and Downloads

Documents are published by the manufacturer and open in a new tab.

Datasheets1
Catalogues2
Leaflets3
Instructions1
Environmental Information3
Declarations4
CAD Drawings3
