Telemecanique Sensors

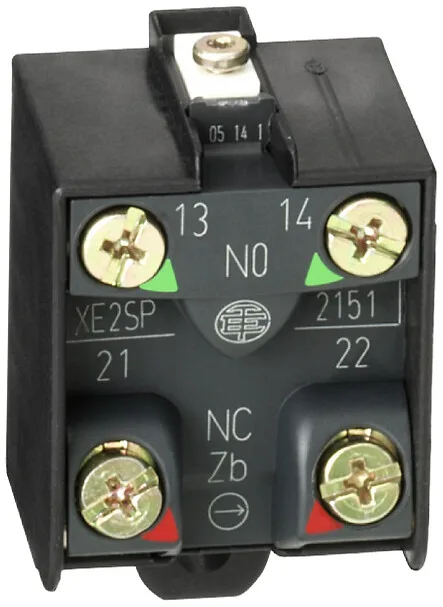

XE2SP3151 - CONTACT 1NO1NC SA SELF LIFTING C
Telemecanique Sensors XE2SP3151, CONTACT 1NO1NC SA SELF LIFTING C. Request a quote for price and lead time.
- Reference:XE2SP3151
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:27.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Limit switches XC Standard
- Series Name
- Standard format
- Product Or Component Type
- Limit switch contact block
- Device Short Name
- XE2S
Product Description
Telemecanique Sensors XE2SP3151 (CONTACT 1NO1NC SA SELF LIFTING C). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main6
| Range Of Product | Telemecanique Limit switches XC Standard |
|---|---|
| Series Name | Standard format |
| Product Or Component Type | Limit switch contact block |
| Device Short Name | XE2S |
| Contacts Type And Composition | 1 NO + 1 NC |
| Contact Operation | Snap action |
Complementary7
| Product Compatibility | XCKT |
|---|---|
| Electrical Connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Contacts Insulation Form | Zb |
| Contacts Material | Silver plated contacts |
| Positive Opening | With |
| Contact Code Designation | A300, AC-15 (Ue = 240 V), Ie = 3 A, Ithe = 10 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A |
| Resistance Across Terminals | 25 mOhm conforming to IEC 60255-7 category 3 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units13
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 2.5 cm |
| Package 1 Width | 3 cm |
| Package 1 Length | 3 cm |
| Package 1 Weight | 0.02 kg |
| Unit Type Of Package 2 | S01 |
| Number Of Units In Package 2 | 100 |
| Package 2 Height | 15 cm |
| Package 2 Width | 15 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 2.225 kg |
| Indivisible Sale Quantity | 1 |
