Telemecanique Sensors

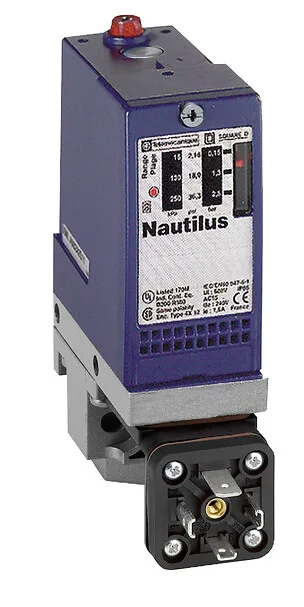

XMLA160D2C11 - PRESSURE SWITCH XMLA 160 BAR FIXED SCALE
Telemecanique Sensors XMLA160D2C11, PRESSURE SWITCH XMLA 160 BAR FIXED SCALE. Category: XMLA for industrial fluids, fixed differential. Request a quote for price and lead time.
- Reference:XMLA160D2C11
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:243.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Pressure sensors XM
- Product Or Component Type
- Electromechanical pressure sensor
- Pressure Sensor Type
- Electromechanical pressure sensor
- Device Short Name
- XMLA
Product Description
Telemecanique Sensors XMLA160D2C11 (PRESSURE SWITCH XMLA 160 BAR FIXED SCALE). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main16
| Range Of Product | Telemecanique Pressure sensors XM |
|---|---|
| Product Or Component Type | Electromechanical pressure sensor |
| Pressure Sensor Type | Electromechanical pressure sensor |
| Device Short Name | XMLA |
| Controlled Fluid | Hydraulic oil (0-160 °C) |
| Fluid Connection Type | G 1/4 (female) conforming to ISO 228 |
| Electrical Connection | 1 male connector EN 175301-803-A (ex DIN43650), 4 pins |
| Contacts Type And Composition | 1 C/O |
| Product Specific Application | Not applicable |
| Pressure Switch Type Of Operation | Detection of 1 single threshold |
| Electrical Circuit Type | Control circuit |
| Scale Type | Fixed differential |
| Local Display | With |
| Pressure Actuator | Piston |
| Materials In Contact With Fluid | Brass, FPM, FKM, PTFE, steel |
| Enclosure Material | Zinc alloy |
Complementary6
| Terminal Block Type | 4 terminals |
|---|---|
| Operating Rate | 60 cyc/mn |
| Auxiliary Contacts Operation | Snap action |
| Contacts Material | Silver contacts |
| Resistance Across Terminals | 25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A |
| Setting | External |
Environment8
| Standards | CE, CSA C22.2 No 14, IEC 60947-5-1, UL 508 |
|---|---|
| Product Certifications | BV, CCC, CSA, LROS (Lloyds register of shipping), UL |
| Protective Treatment | TC standard version |
| Operating Position | Any position |
| Vibration Resistance | 4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz) |
| Shock Resistance | 50 gn conforming to IEC 60068-2-27 |
| Electrical Shock Protection Class | Class I conforming to IEC 1140, class I conforming to IEC 536, class I conforming to NF C 20-030 |
| IP Degree Of Protection | IP65 conforming to IEC 60529 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 4.3 cm |
| Package 1 Width | 11.5 cm |
| Package 1 Length | 11.8 cm |
| Package 1 Weight | 0.792 kg |
| Unit Type Of Package 2 | S02 |
| Number Of Units In Package 2 | 13 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 10.426 kg |
| Unit Type Of Package 3 | carton |
| Number Of Units In Package 3 | 1 |
| Package 3 Height | 11.8 cm |
| Package 3 Width | 4 cm |
| Package 3 Length | 11.6 cm |
| Package 3 Weight | 0.826 kg |
| Indivisible Sale Quantity | 1 |
Documents and Downloads
Documents are published by the manufacturer and open in a new tab.
Datasheets1
Catalogues3
Leaflets2
Environmental Information3
Declarations3
- XMLA/B/C/D… pressure and vacuum switches for control circuits - CMim declaration of conformityOpens in a new tab
- XMLA/B/C/D... pressure and vacuum switches for control circuits - EU declaration of conformityOpens in a new tab
- XMLA/B/C/D... pressure and vacuum switches for control circuits - UK declaration of conformityOpens in a new tab
CAD Drawings3
- differential switches G 1/4 female, connector EN 175301-803-A (ex DIN43650) - 3D CAD (dxf)Opens in a new tab
- differential switches G 1/4 female, connector EN 175301-803-A (ex DIN43650) - 3D CAD (dwg)Opens in a new tab
- differential switches G 1/4 female, connector EN 175301-803-A (ex DIN43650) - 3D CAD (dwg)Opens in a new tab
