Telemecanique Sensors

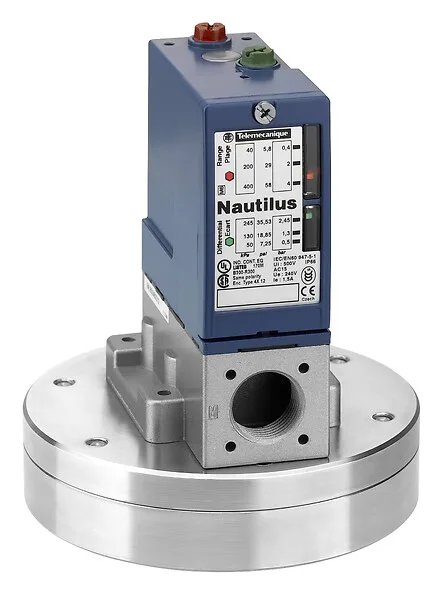

XMLBS35R2S12 - PRESSURE SWITCH 350 MBAR M.O.P.30BAR
Telemecanique Sensors XMLBS35R2S12, PRESSURE SWITCH 350 MBAR M.O.P.30BAR. Category: XMLB/C for industrial fluids, adjustable differential. Request a quote for price and lead time.
- Reference:XMLBS35R2S12
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:611.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Pressure sensors XM
- Product Or Component Type
- Electromechanical pressure sensor
- Pressure Sensor Type
- Electromechanical pressure sensor
- Device Short Name
- XMLB
Product Description
Telemecanique Sensors XMLBS35R2S12 (PRESSURE SWITCH 350 MBAR M.O.P.30BAR). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main18
| Range Of Product | Telemecanique Pressure sensors XM |
|---|---|
| Product Or Component Type | Electromechanical pressure sensor |
| Pressure Sensor Type | Electromechanical pressure sensor |
| Device Short Name | XMLB |
| Controlled Fluid | Air (0-160 °C), hydraulic oil (0-160 °C) |
| Fluid Connection Type | G 1/4 (female) conforming to ISO 228 |
| Electrical Connection | Screw-clamps terminals, 1 x 0.5...2 x 2.5 mm² |
| AWG Gauge | AWG 20...AWG 14 |
| Cable Entry | Cable gland 7-13 mm |
| Contacts Type And Composition | 1 C/O |
| Product Specific Application | 30 bar overpressure |
| Pressure Switch Type Of Operation | Regulation between 2 thresholds |
| Electrical Circuit Type | Control circuit |
| Scale Type | Adjustable differential |
| Local Display | With |
| Pressure Actuator | Diaphragm |
| Materials In Contact With Fluid | 304L stainless steel, FPM, FKM, steel |
| Enclosure Material | Zinc alloy |
Complementary6
| Terminal Block Type | 4 terminals |
|---|---|
| Operating Rate | 120 cyc/mn |
| Auxiliary Contacts Operation | Snap action |
| Contacts Material | Silver contacts |
| Resistance Across Terminals | 25 mOhm conforming to IEC 255-7 category 3, 25 mOhm conforming to NF C 93-050 method A |
| Setting | External |
Environment8
| Standards | CE, CSA C22.2 No 14, IEC 60947-5-1, UL 508 |
|---|---|
| Product Certifications | BV, CCC, CE, CSA, LROS (Lloyds register of shipping), UL, UL 508 |
| Protective Treatment | TC standard version |
| Operating Position | Any position |
| Vibration Resistance | 4 gn conforming to IEC 60068-2-6 (f = 30-500 Hz) |
| Shock Resistance | 50 gn conforming to IEC 60068-2-27 |
| Electrical Shock Protection Class | Class I conforming to IEC 1140, class I conforming to IEC 536, class I conforming to NF C 20-030 |
| IP Degree Of Protection | IP66 conforming to IEC 60529 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units13
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 10.6 cm |
| Package 1 Width | 5.7 cm |
| Package 1 Length | 9.7 cm |
| Package 1 Weight | 2.565 kg |
| Unit Type Of Package 2 | carton |
| Number Of Units In Package 2 | 1 |
| Package 2 Height | 10.6 cm |
| Package 2 Width | 5.7 cm |
| Package 2 Length | 9.7 cm |
| Package 2 Weight | 2.6 kg |
| Indivisible Sale Quantity | 1 |
