Telemecanique Sensors

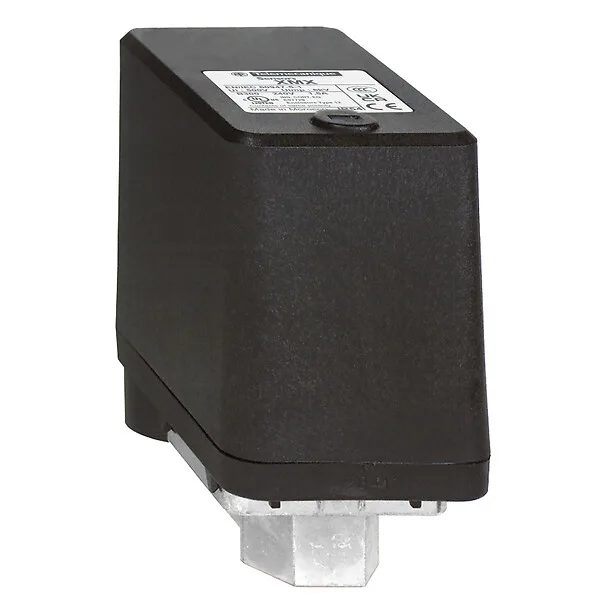

XMXA06L2135 - PRESSURE SWITCH XMX 6 BAR ADJUSTABLE SCA
Telemecanique Sensors XMXA06L2135, PRESSURE SWITCH XMX 6 BAR ADJUSTABLE SCA. Category: Standard size - up to 70 m. Request a quote for price and lead time.
- Reference:XMXA06L2135
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:100.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Pressure sensors XM
- Pressure Sensor Type
- Electromechanical pressure sensor
- Pressure Sensor Name
- XMX
- Contacts Type And Composition
- 1 C/O snap action
Product Description
Telemecanique Sensors XMXA06L2135 (PRESSURE SWITCH XMX 6 BAR ADJUSTABLE SCA). Ask UC-EL Electric for a quote with the current price, stock and delivery details.
Technical Specifications
Main17
| Range Of Product | Telemecanique Pressure sensors XM |
|---|---|
| Pressure Sensor Type | Electromechanical pressure sensor |
| Pressure Sensor Name | XMX |
| Contacts Type And Composition | 1 C/O snap action |
| Controlled Fluid | Air (0-70 °C), fresh water (0-70 °C), sea water (0-70 °C) |
| Fluid Connection Type | G 1/4 (female) conforming to ISO 228 |
| Cable Entry | 2 entries tapped for Pg 13.5 cable gland conforming to NF C 68-300 |
| Electrical Connection | Screw-clamp terminals, clamping capacity: 1 x 1...2 x 2.5 mm² |
| Electrical Circuit Type | Control circuit |
| Setting | Internal |
| Colour Of Cover | Black opaque |
| Pressure Switch Type Of Operation | Regulation between 2 thresholds |
| Scale Type | Fixed differential |
| Local Display | Without |
| Enclosure Material | PC impregnated with Lexan 500R |
| Pressure Actuator | Diaphragm |
| Materials In Contact With Fluid | Canvas covered nitrile, chromated zinc alloy |
Complementary2
| Operating Position | Any position |
|---|---|
| Operating Rate | 10 cycles/min |
Environment5
| Standards | CE, IEC 60947-5-1 |
|---|---|
| Product Certifications | CCC, CSA, UL |
| Protective Treatment | TC |
| Electrical Shock Protection Class | Class I conforming to IEC 536 |
| IP Degree Of Protection | IP54 conforming to IEC 60529 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
Packing Units13
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 6 cm |
| Package 1 Width | 11.5 cm |
| Package 1 Length | 17 cm |
| Package 1 Weight | 0.491 kg |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 20 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 10.287 kg |
| Indivisible Sale Quantity | 1 |
