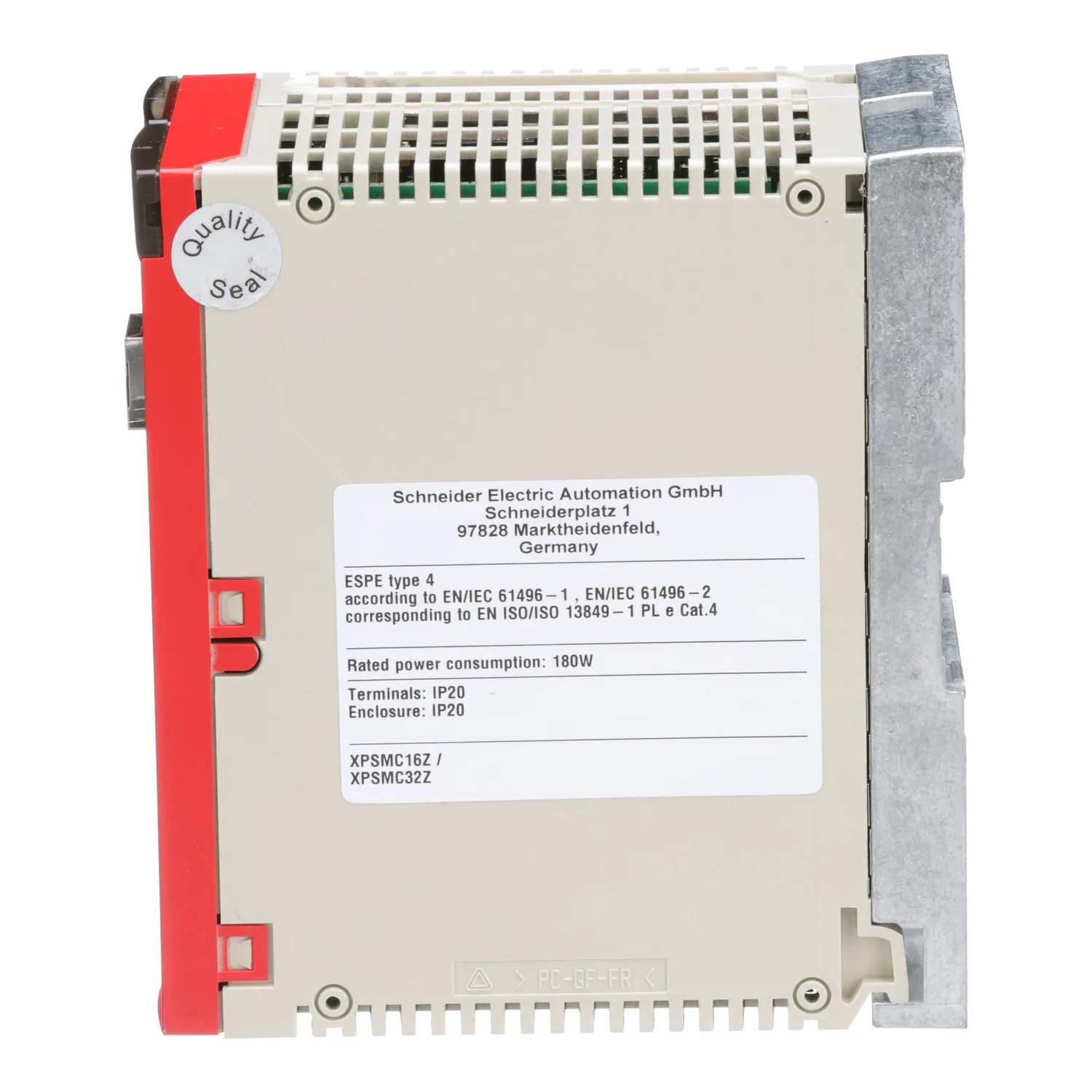

Automation module: safety controller; 24VDC; IN: 16; XPSMC; Modbus
Schneider XPSMC16Z, Automation module: safety controller; 24VDC; IN: 16; XPSMC; Modbus. Category: Modicon MCM. Not for sale; no price or quote is offered for this product.
- Reference:XPSMC16Z
- Manufacturer / Brand:Schneider
Key Specifications
- Range Of Product
- Preventa Safety automation
- Product Or Component Type
- Configurable safety controller
- Safety Module Name
- XPSMC
- Type Of Start
- Configurable

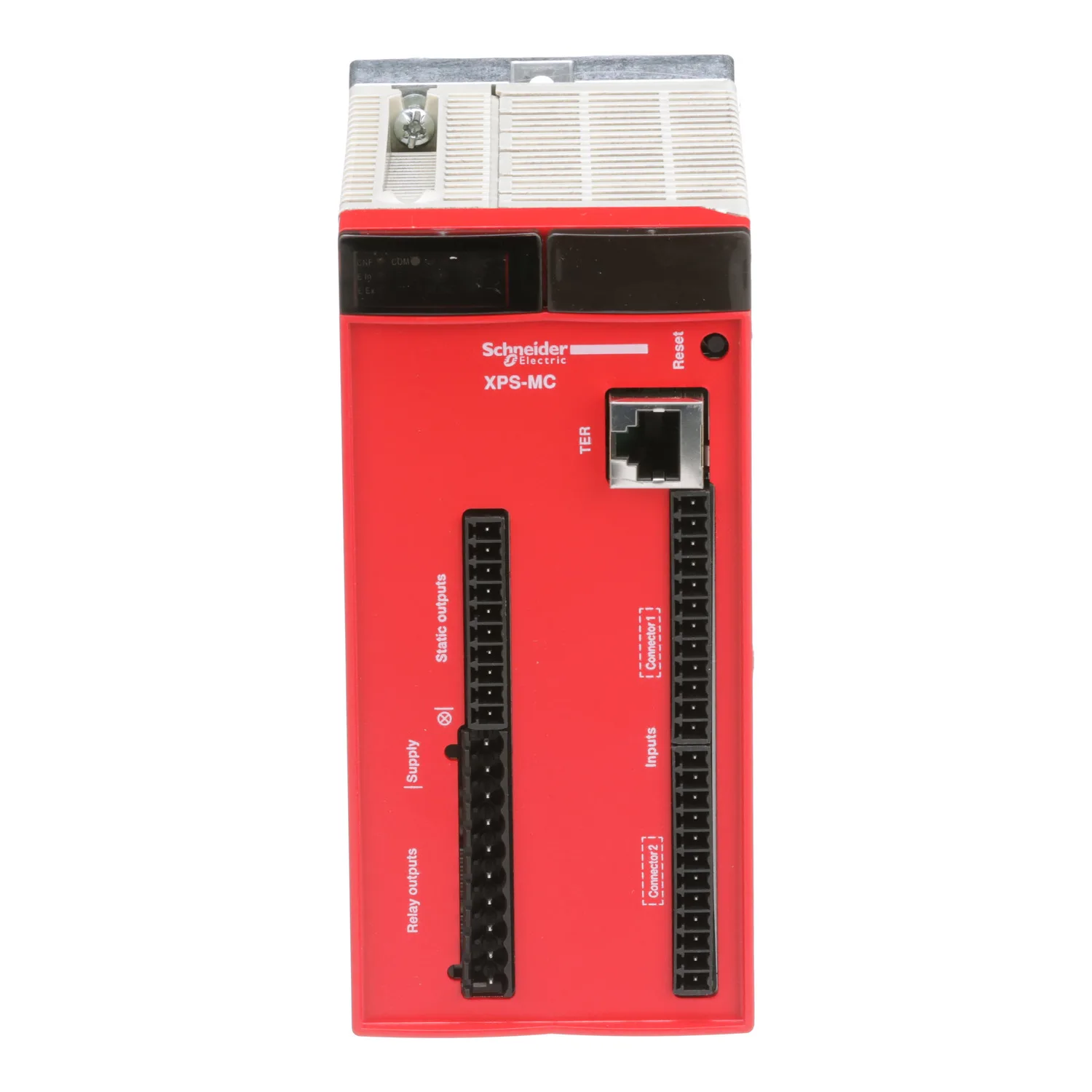

Product Description
This product is part of preventa XPCMC configurable safety controller range. It is a configurable safety controller. It is supplied with 24 V DC. It has 16 safety inputs. It conforms to Category 4 maximum conforming to EN 954-1/EN/ISO 13849-1, PLE safety level conforming to EN/ISO 13849-1 and SIL 3 level conforming to IEC 61508. It embeds 1 RJ45 port for a serial link communication with Modbus protocol. The transmission rate are 1200bps, 2400 bps, 4800bps, 9600bps or 19200bps. This product measures 153mm depth, 151.5mm height, and 74mm width. It weighs 0.82kg. This safety controller is designed for monitoring multiple safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. This product is certified by CSA, UL and TÜV. It conforms to EN 954-1/EN/ISO 13849-1, EN/IEC 61496-1, IEC 61508, EN/IEC 60204-1, EN 1760-1/ISO 13856-1, EN 574/ISO 13851 and EN/IEC 60947-5-1 standards. The Safety controller XPSMC is configurable and addressable using software XPSMCWIN running on a PC and using a USB/RJ45 cable type TCSMCNAM3M002P to connect to the safety controller. It installs with a mounting plate for mounting on rail. Preventa XPSMC configurable safety controller is designed to provide a solution for safety applications requiring conformity to Performance Level PL e/Category 4 EN ISO 13849-1 and SIL3 EN/IEC 61508. The configurable safety controller consists of 6 variants with 16 or 32 digital inputs and 8 digital outputs and communication possibilities of Modbus RTL Serial, Profibus DP and CANopen. • 16 safety inputs for monitoring multiple safety functions
Key Features
- Meets highest safety standards: Category 4, PL e, SIL 3
- Modbus communication via RJ45 port for easy integration
- Certified by CSA, UL, TÜV for global compliance

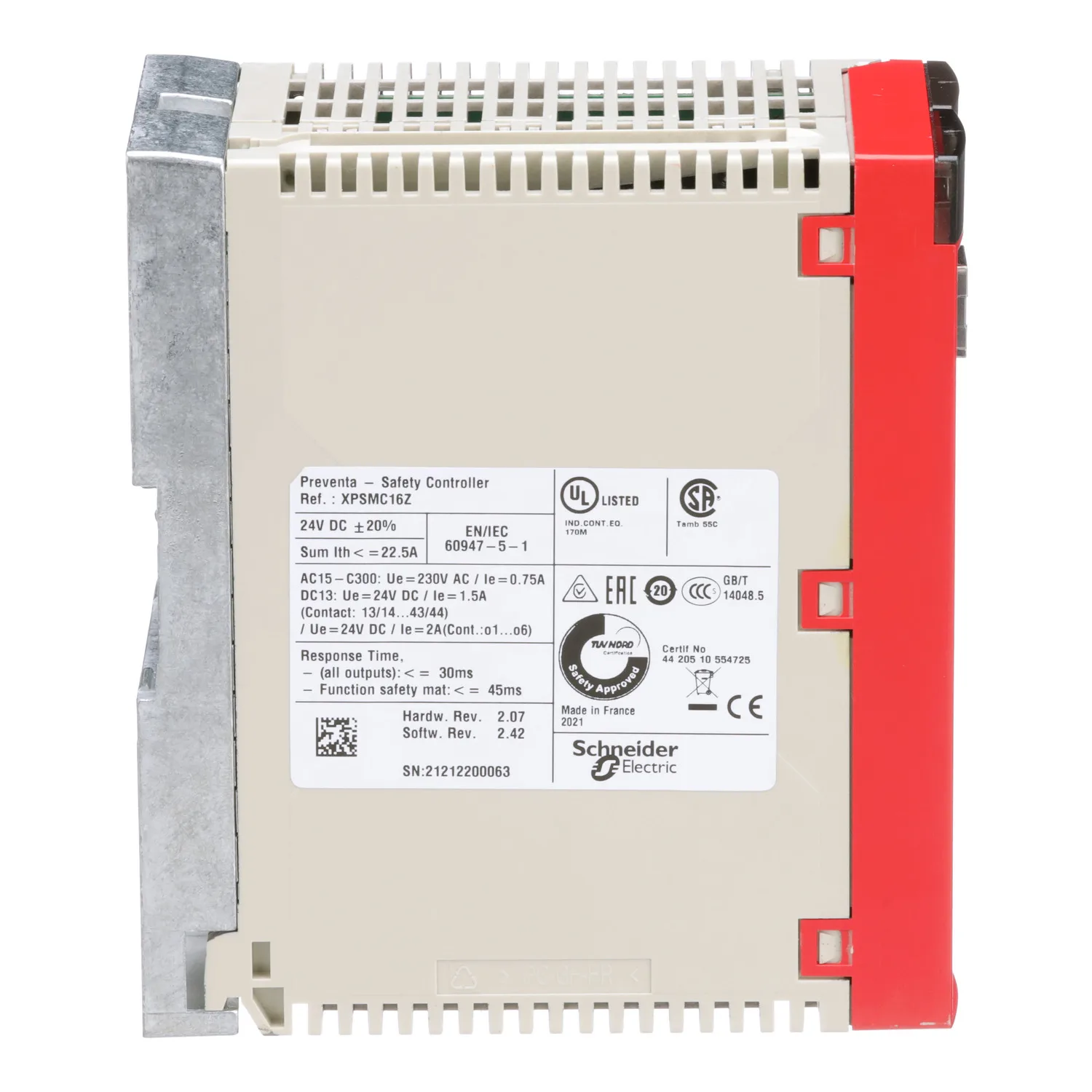

Technical Specifications
Main11
| Range Of Product | Preventa Safety automation |
|---|---|
| Product Or Component Type | Configurable safety controller |
| Safety Module Name | XPSMC |
| Safety Use Category | Category 4 maximum conforming to EN 954-1/EN/ISO 13849-1; PLE maximum conforming to ISO 13849-1; SIL 3 maximum conforming to IEC 61508 |
| Type Of Start | Configurable |
| Standards | EN 574/ISO 13851; EN 1760-1/ISO 13856-1; IEC 61496-1; IEC 60204-1; IEC 61508; IEC 60947-5-1; EN 954-1/EN/ISO 13849-1 |
| Product Certifications | TÜV; UL; CSA |
| [Us] Rated Supply Voltage | 24 V DC - 20...20 % |
| Number Of Inputs | 16 |
| Communication Port Protocol | Modbus with 1 RJ45 port(s), serial link, transmission rate: 1200 bps, 2400 bps, 4800 bps, 9600 bps or 19200 bps |
| Safety Level | Can reach PL e/category 4 conforming to EN 954-1/EN/ISO 13849-1; Can reach SIL 3 conforming to IEC 61508 |
Complementary28
| Function Of Module | Emergency stop monitoring, with or without time delay, 1 or 2-channel wiring; Enabling switch monitoring, 2 or 3 contacts; Foot switch monitoring; Guard monitoring with 1 or 2 limit switches; Magnetic switch monitoring category 4 conforming to EN/IEC 61496; Muting function of light curtains; Position selector; Safety mat monitoring; Safety time delays; Shaft/chain breaking monitor; Zero speed dete |
|---|---|
| Synchronisation Time Between Inputs | Depending on configuration selected |
| Power Consumption In W | 12 W |
| Input Protection Type | External fuse 16 A |
| [Uc] Control Circuit Voltage | 28.8 V |
| Maximum Line Resistance | 100 Ohm <2000 m |
| Output Type | 2 relays, 2 NO contacts (4 NO total) circuit(s); Solid state, 6 circuit(s), volt-free |
| Breaking Capacity | 180 VA holding AC-15 C300 relay output; 1800 VA inrush AC-15 C300 relay output |
| Output Thermal Current | 4 A for both outputs simultaneously; 6 A for 1 output and 2 A for the other for relay output |
| [Ith] Conventional Free Air Thermal Current | 16 A for relay output; 6.5 A for static output circuit |
| Associated Fuse Rating | 16 A gL for power supply; 4 A gL for relay output; 6 A fast blow for relay output |
| Minimum Output Current | 10 mA for relay output |
| Minimum Output Voltage | 17 V for relay output |
| Response Time | Configurable : 20 ms or 30 ms with software XPSMCWIN |
| [Ui] Rated Insulation Voltage | 300 V (pollution degree 2) conforming to IEC 60647-5-1, DIN VDE 0110 part 1 |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV overvoltage category III conforming to IEC 60647-5-1, DIN VDE 0110 part 1 |
| Method Of Access | Slave |
| Exchange Size | 14 words |
| Number Of Addresses | 1…247 for Modbus |
| Parity | Even for Modbus; No for Modbus; Odd for Modbus |
| Data Format | 1 start bit/8 data bits; 1 stop bit even or odd; 2 stop bits without parity; RTU (Remote Terminal Unit) mode |
| Supported Modbus Function | 01: 8-bit output data/32-bit input data; 02: 32-bit input data/8-bit output data; 03: information and errors |
| Local Signalling | 30 LEDs |

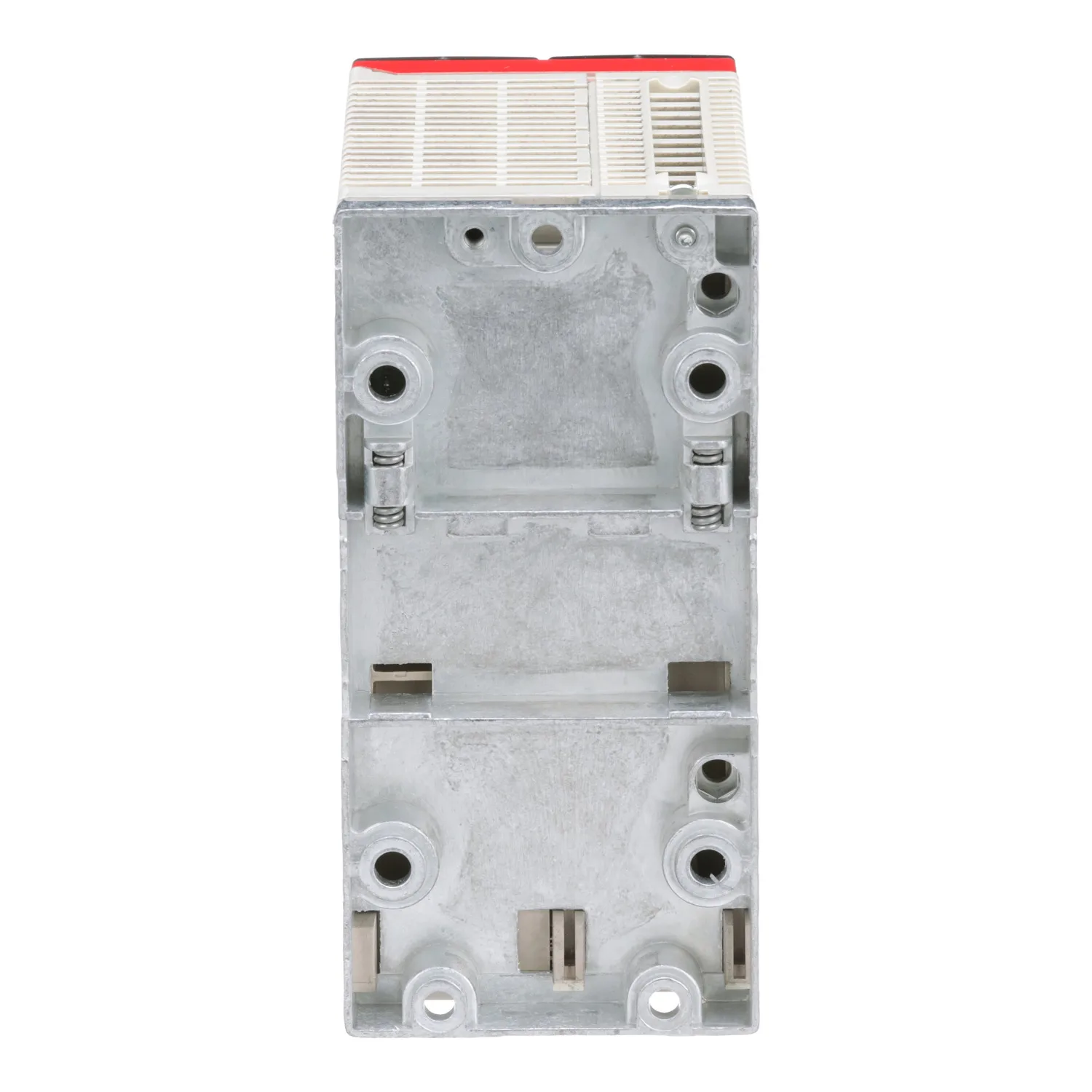

| Mounting Support | Mounting plate |
| Depth | 153 mm |
| Height | 151.5 mm |
| Width | 74 mm |
| Net Weight | 0.82 kg |
Environment3
| IP Degree Of Protection | IP20 conforming to IEC 60529 |
|---|---|
| Ambient Air Temperature For Operation | -10…55 °C |
| Ambient Air Temperature For Storage | -25…85 °C |
Packing Units12
| Unit Type Of Package 1 | PCE |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 9.600 cm |
| Package 1 Width | 18.000 cm |
| Package 1 Length | 26.000 cm |
| Package 1 Weight | 1.185 kg |
| Unit Type Of Package 2 | S04 |
| Number Of Units In Package 2 | 6 |
| Package 2 Height | 30.000 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 7.950 kg |
Logistical informations1
| Country Of Origin | FR |
|---|
Contractual warranty1
| Warranty (in Months) | 18 |
|---|
