Telemecanique Sensors

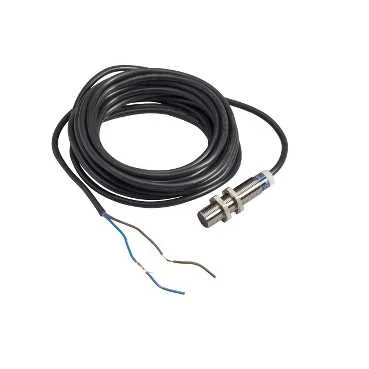

Inductive sensor, XS1, M12, brass, Sn 4 mm, PNP, NC, cable 2 m, L37 mm, 12...24 VDC, flush, 3 wires
Telemecanique Sensors XS112B3PBL2, Inductive sensor, XS1, M12, brass, Sn 4 mm, PNP, NC, cable 2 m, L37 mm, 12...24 VDC, flush, 3 wires. Category: Cylindrical design. Request a quote for price and lead time.
- Reference:XS112B3PBL2
- Manufacturer / Brand:Telemecanique Sensors
- Availability:On Request / Inquire Stock
- Price:40.00 EUR (Request a quote)
Key Specifications
- Range Of Product
- Telemecanique Inductive proximity sensors XS
- Series Name
- General purpose
- Sensor Type
- Inductive proximity sensor
- Sensor Name
- XS1
Product Description
The Telemecanique Sensors OsiSense XS series inductive proximity sensor features a cylindrical M12 body. This 3-wire, PNP output sensor with 1 NC contact function comes with a 2-meter cable connection. Contact UC-EL Electric for a current price quote.
Technical Specifications
Main19
| Range Of Product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series Name | General purpose |
| Sensor Type | Inductive proximity sensor |
| Sensor Name | XS1 |
| Device Application | Mobile equipment |
| Sensor Design | Cylindrical M12 |
| Size | 37 mm |
| Body Type | Fixed |
| Type Of Output Signal | Discrete |
| Wiring Technique | 3-wire |
| Discrete Output Function | 1 NC |
| Detector Flush Mounting Acceptance | Flush mountable |
| Discrete Output Type | PNP |
| Material | Metal |
| Electrical Connection | Cable |
| [Us] Rated Supply Voltage | 12...24 V DC with reverse polarity protection |
| Output Circuit Type | DC |
| Switching Capacity In MA | <= 200 mA with overload and short-circuit protection |
| IP Degree Of Protection | IP65 conforming to IEC 60529, IP67 conforming to IEC 60529 |
Complementary16
| Enclosure Material | Nickel plated brass |
|---|---|
| Detection Face | Frontal |
| Thread Type | M12 x 1 |
| Front Material | PPS |
| Sensing Range | > 2.5...4 mm |
| Differential Travel | 1...15 % of Sr |
| Cable Composition | 3 x 0.34 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Wire Insulation Material | PVC |
| Switching Frequency | <= 2500 Hz |
| Voltage Drop | <2 V (closed) |
| Current Consumption | <= 10 mA no-load |
| Delay First Up | 10 ms |
| Delay Response | 0.2 ms |
| Marking | CE |
| Delay Recovery | 0.2 ms |
Environment3
| Product Certifications | CSA, E2, UL |
|---|---|
| Vibration Resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock Resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
Packing Units19
| Unit Type Of Package 1 | piece |
|---|---|
| Number Of Units In Package 1 | 1 |
| Package 1 Height | 4.1 cm |
| Package 1 Width | 9.4 cm |
| Package 1 Length | 13 cm |
| Package 1 Weight | 0.091 kg |
| Unit Type Of Package 2 | S03 |
| Number Of Units In Package 2 | 44 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 4.717 kg |
| Unit Type Of Package 3 | carton |
| Number Of Units In Package 3 | 1 |
| Package 3 Height | 9.4 cm |
| Package 3 Width | 13 cm |
| Package 3 Length | 4.1 cm |
| Package 3 Weight | 0.091 kg |
| Indivisible Sale Quantity | 1 |
Offer Sustainability1
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
|---|
